Home
>>
Lincoln
>>
2001
>>
Continental V8-4.6L DOHC VIN V
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Module HVAC
>>
Locations
>>
Electronic Climate Control Module
>>
Body Views
Body Views

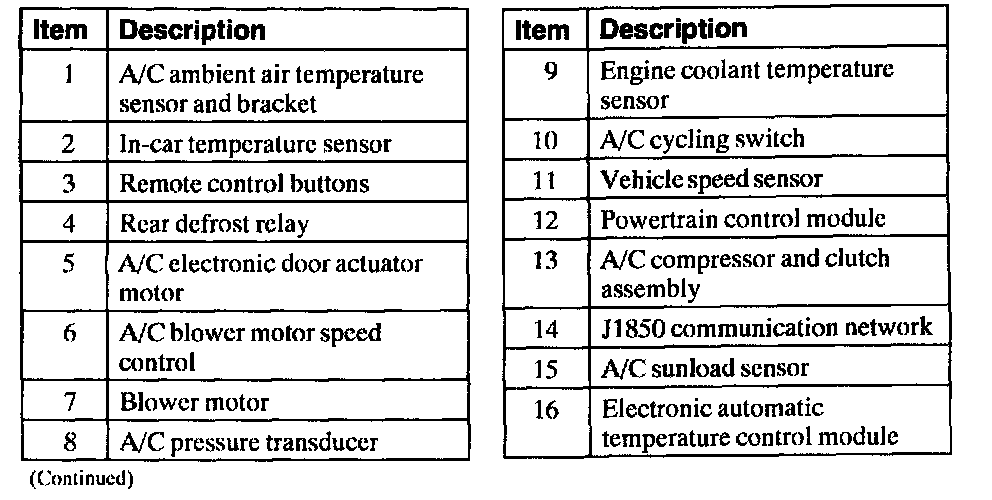

Climate Control System Electrical Components, Part 1:
Climate Control System Electrical Components, Part 2:

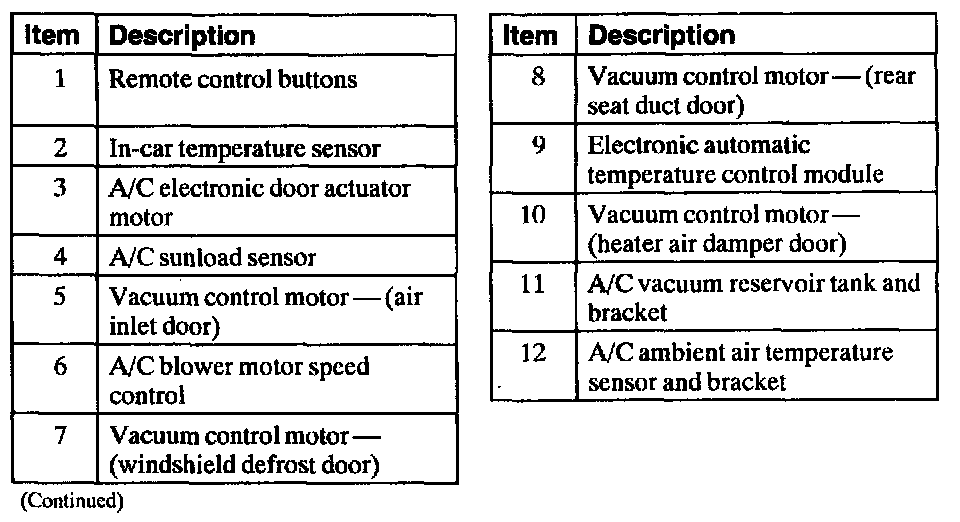

Component Locations, Part 1:
Component Locations, Part 2:
