A/C Pressure Sensor

REMOVAL
1. Raise the vehicle on a hoist.







2. Remove the radiator air deflector.
- Remove the pin-type retainers.
- Remove the screws and remove the radiator air deflector.

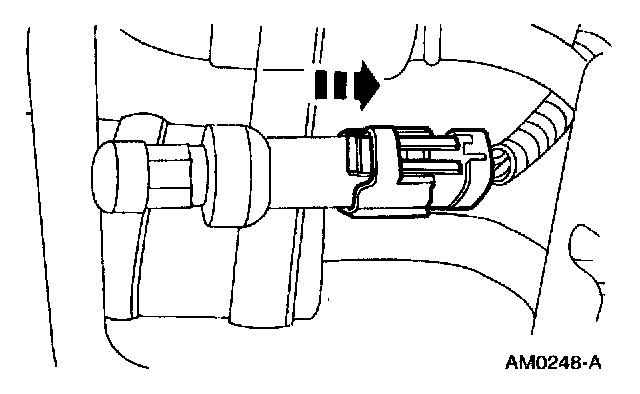

3. Disconnect the electrical connector.

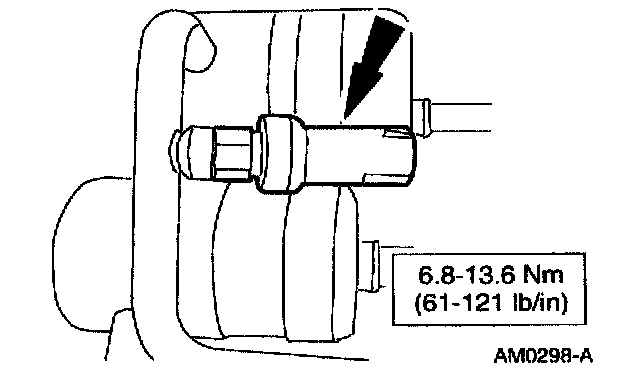

4. Remove the A/C pressure cutoff switch.

INSTALLATION












1. To install, reverse the removal procedure.
- Lubricate the O-ring seal with PAG Refrigerant Compressor Oil (R-134a Systems) or equivalent.
