Home >> Lincoln >> 2001 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Heating and Air Conditioning >> Blower Motor

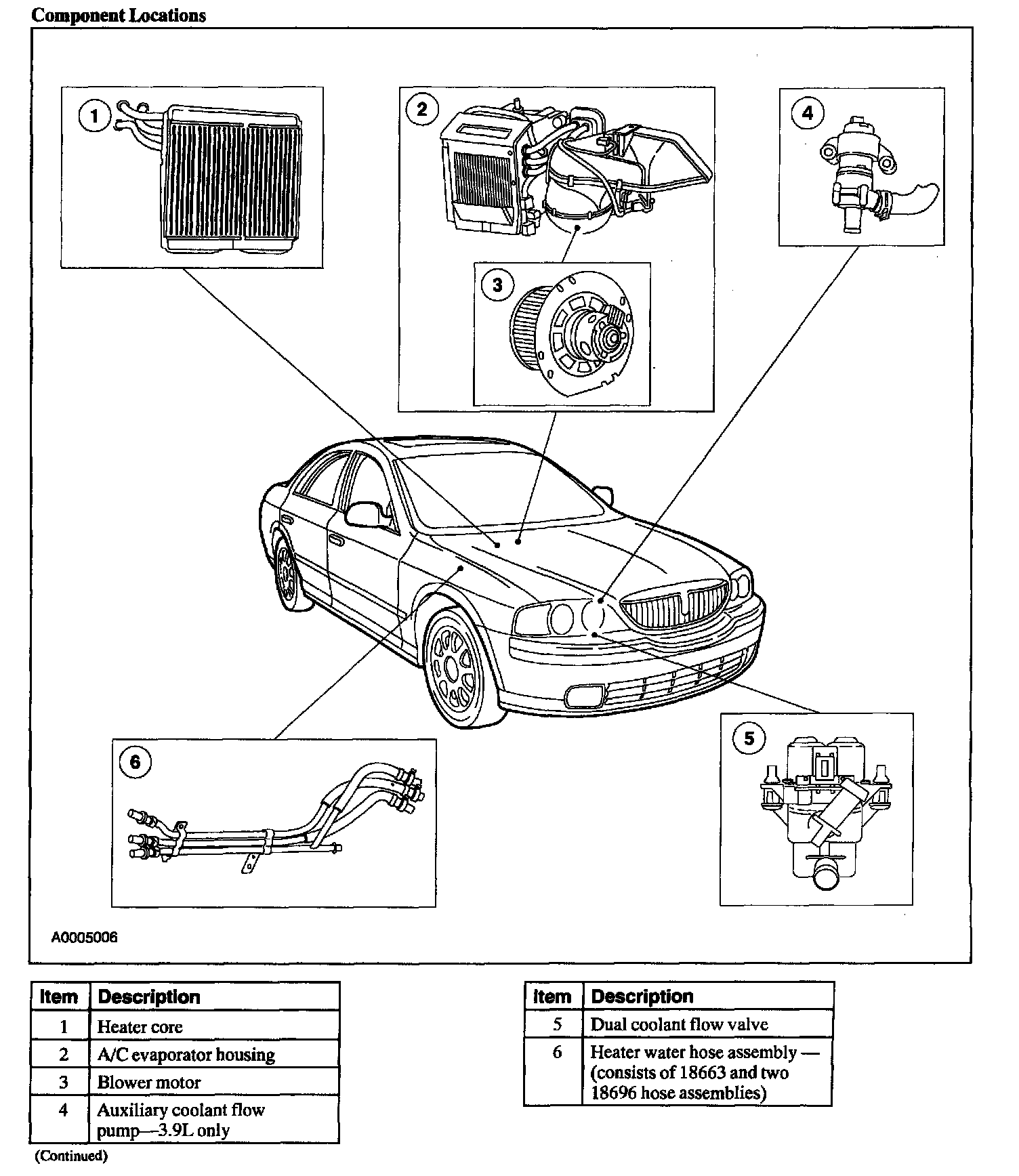

Blower Motor

Component Locations:
