Center

REMOVAL

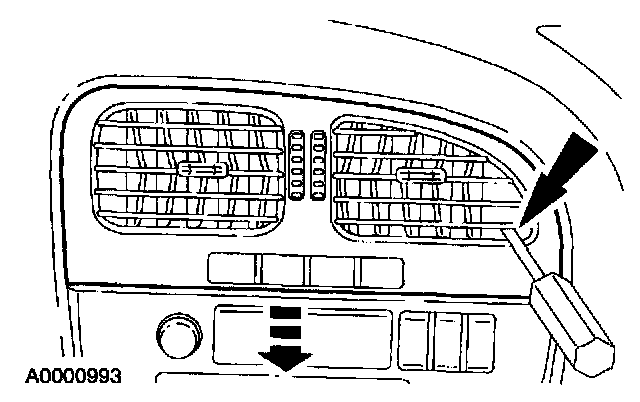

1. Insert a mini-pick in the pocket and pull the register from the instrument panel.
- Disconnect the message center connector, if equipped.

NOTE: The center register has pockets in the lower RH and LH corners to assist in removal.

INSTALLATION
1. To install, connect the message center connector, if equipped, position the register and press into place.
