Ambient Temperature Sensor / Switch HVAC: Locations

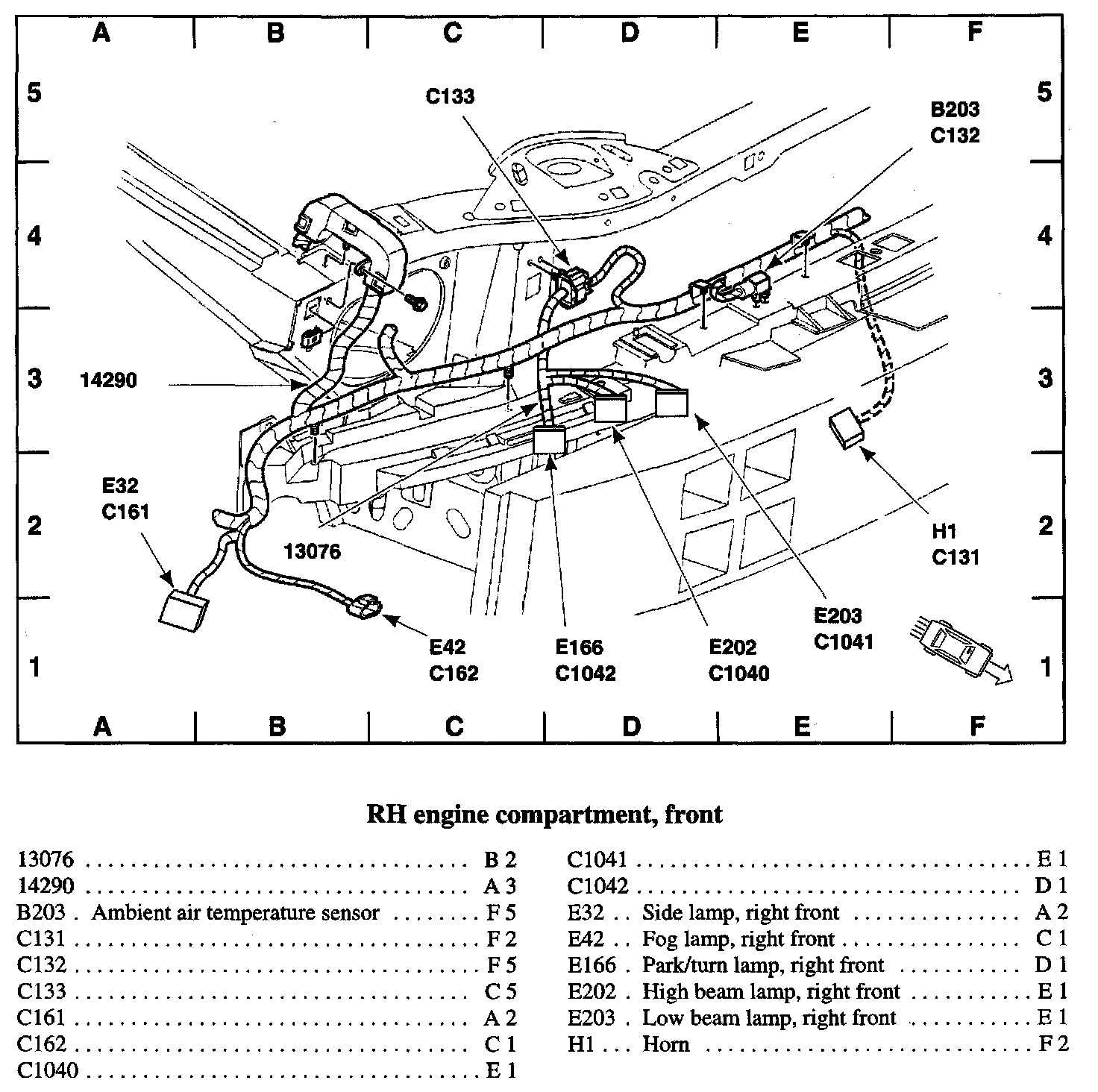

Component Locations, Part 1:






Component Locations, Part 2:
