Home >> Lincoln >> 2001 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Heating and Air Conditioning >> Discharge Air Temperature Sensor / Switch >> Locations

Discharge Air Temperature Sensor / Switch: Locations

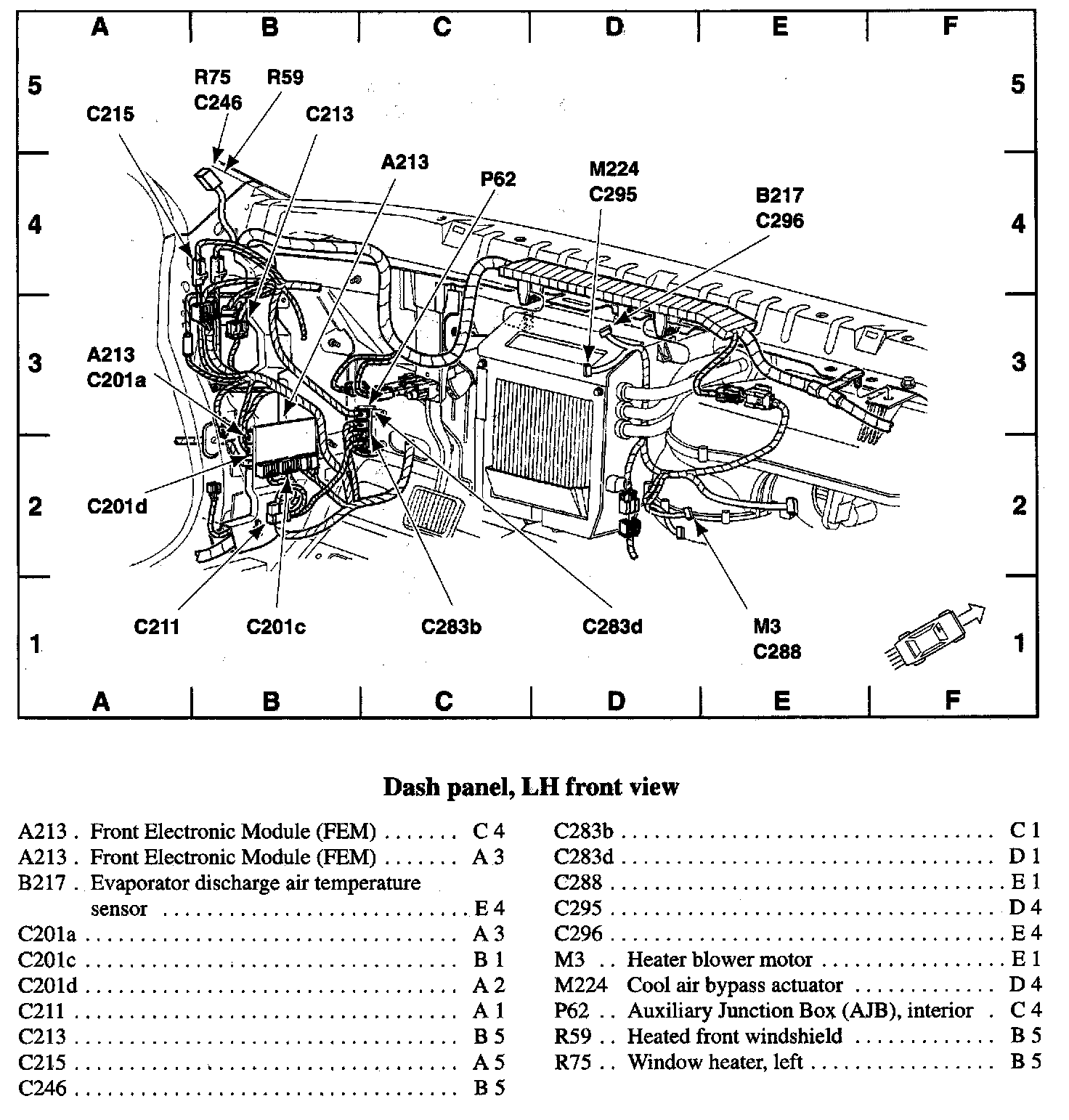

Component Locations, Part 1:






Component Locations, Part 2:
