Valve Cover





RH Side

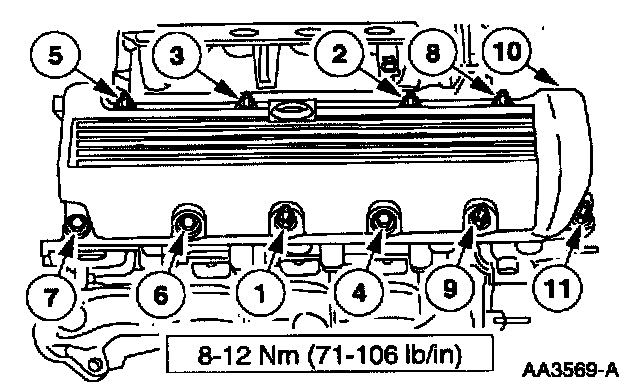

Tighten the bolts in the sequence shown to 8-12 Nm (71-106 in. lbs.).





LH Side
Tighten the bolts in the sequence shown to 8-12 Nm (71-106 in. lbs.).
