Test B: No Communication With The Module - Unable To Perform On-Demand Self-On Lighting Control Module
Test B: No Communication With The Module - Unable To Perform On-Demand Self-On Lighting Control Module

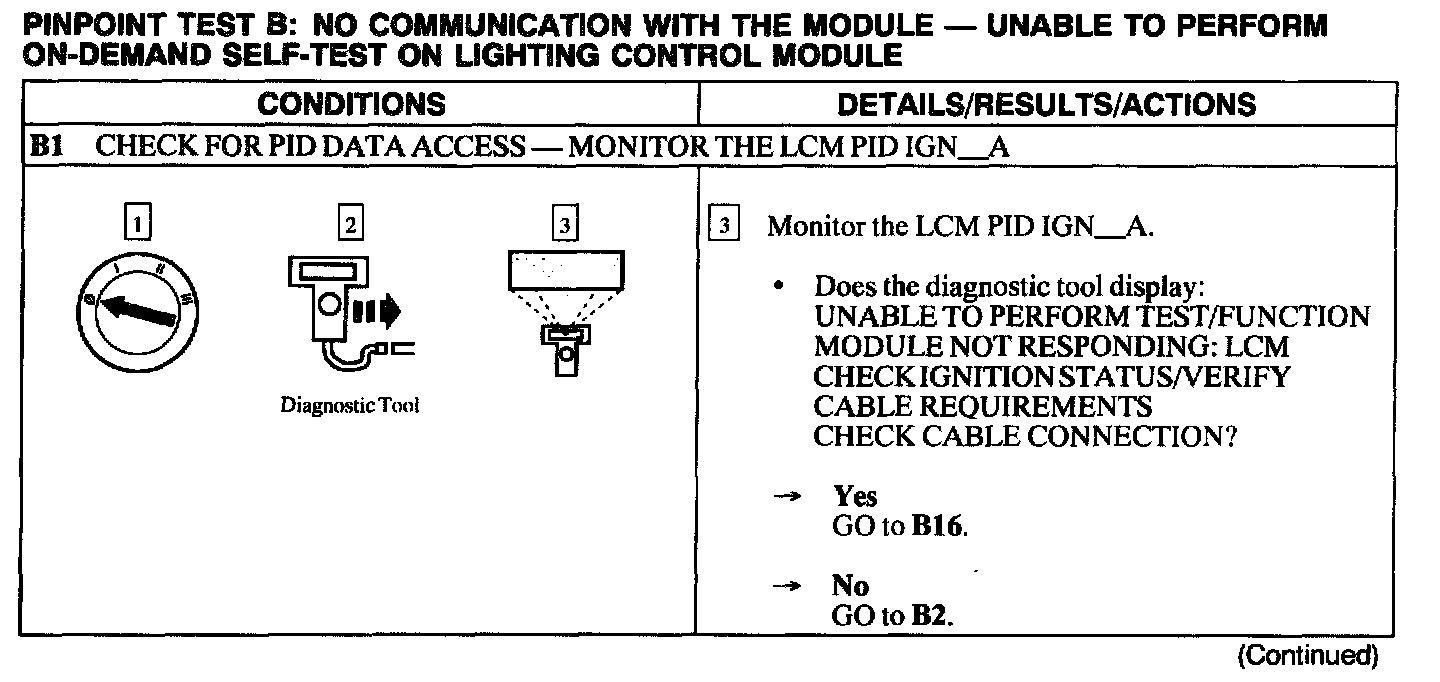

B1:

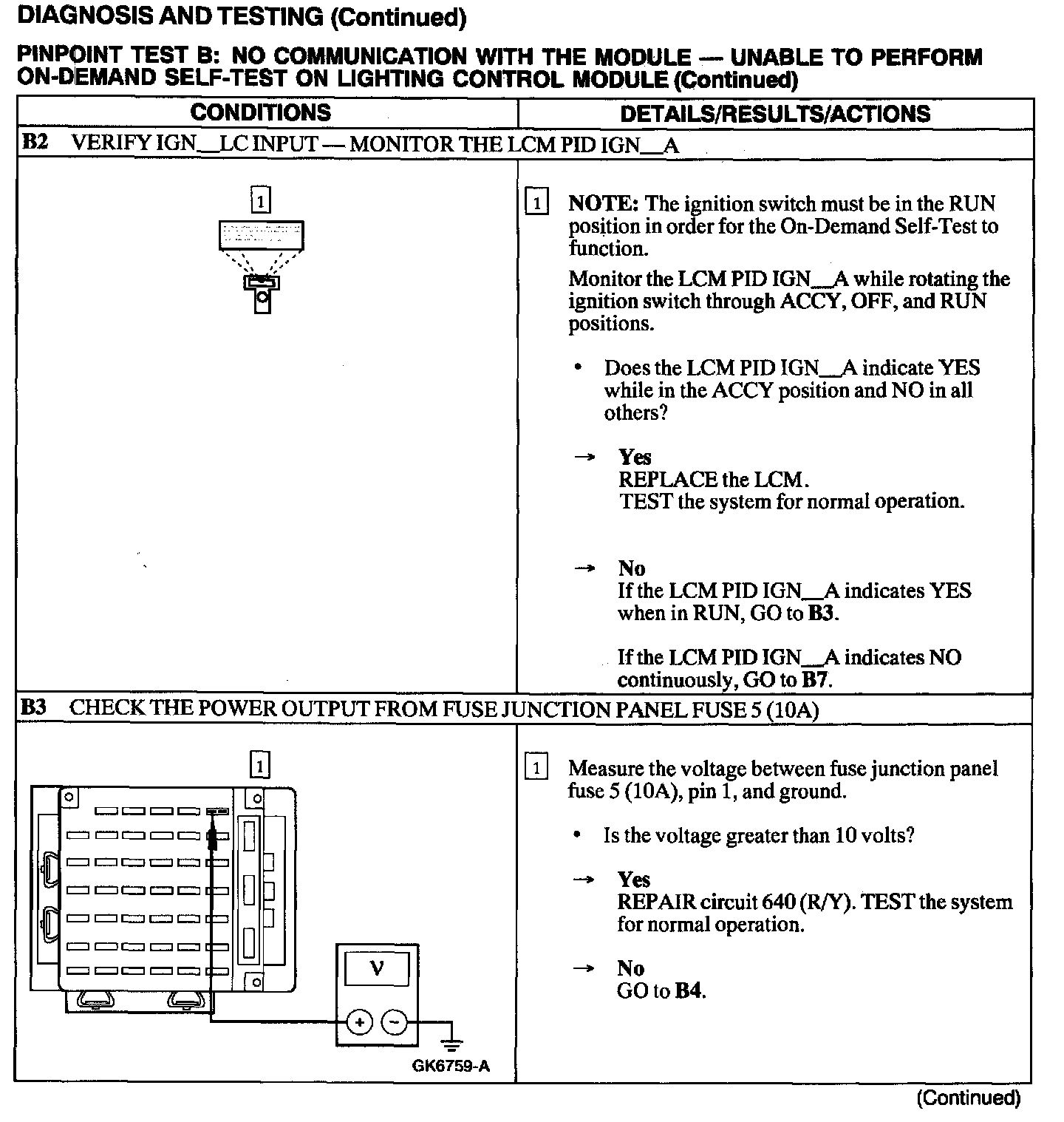

B2 - B3:

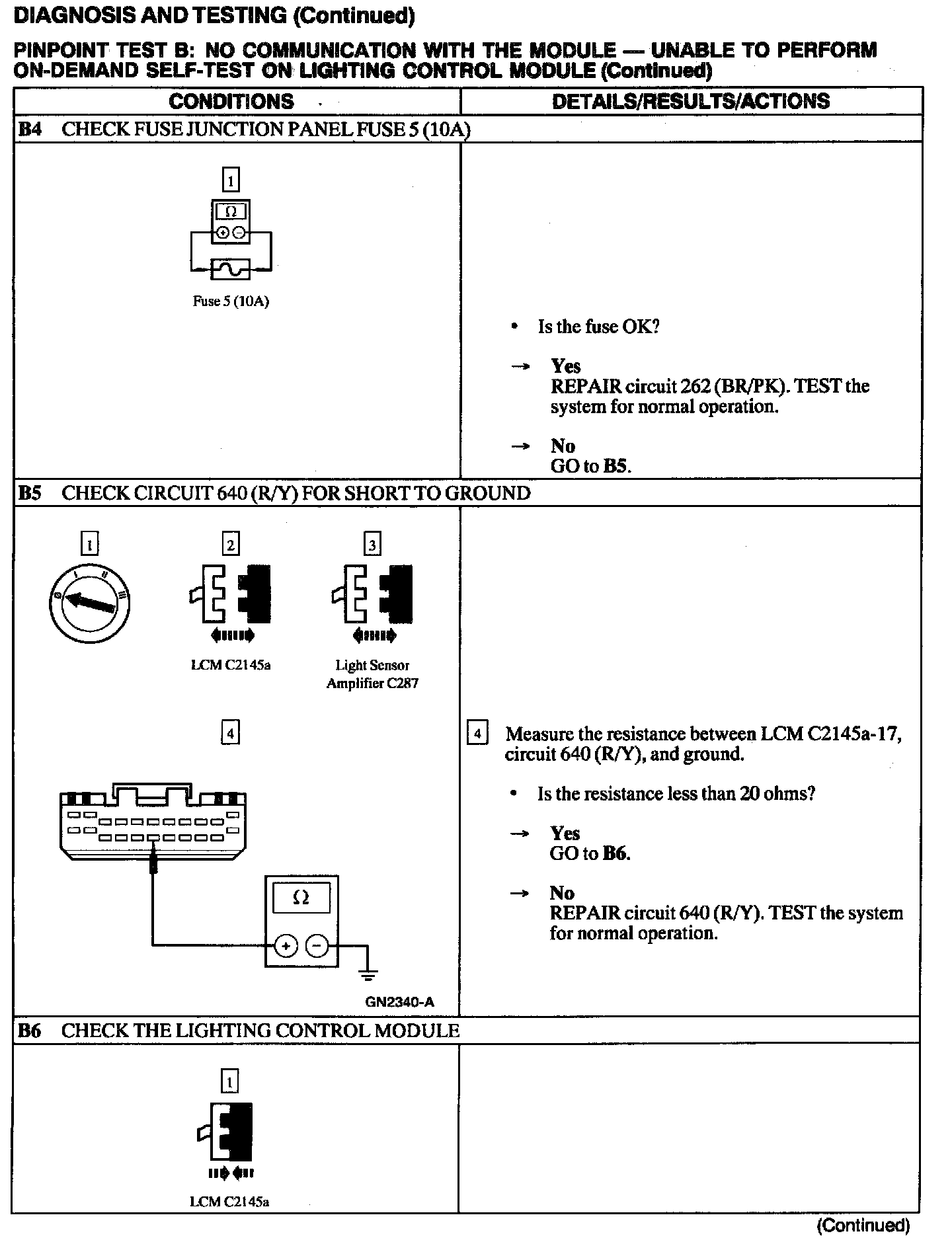

B4 - B6:

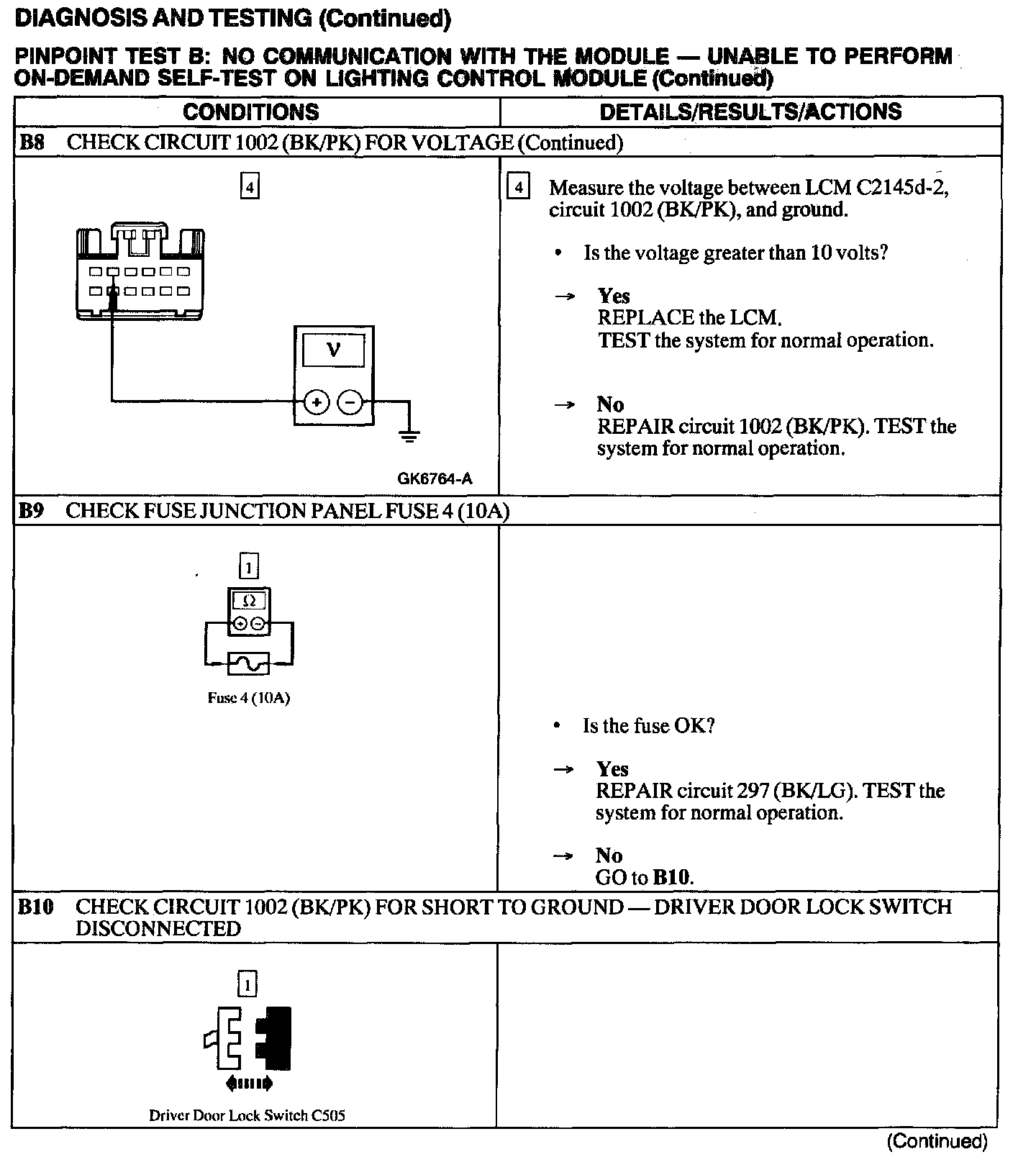

B6 - B8:

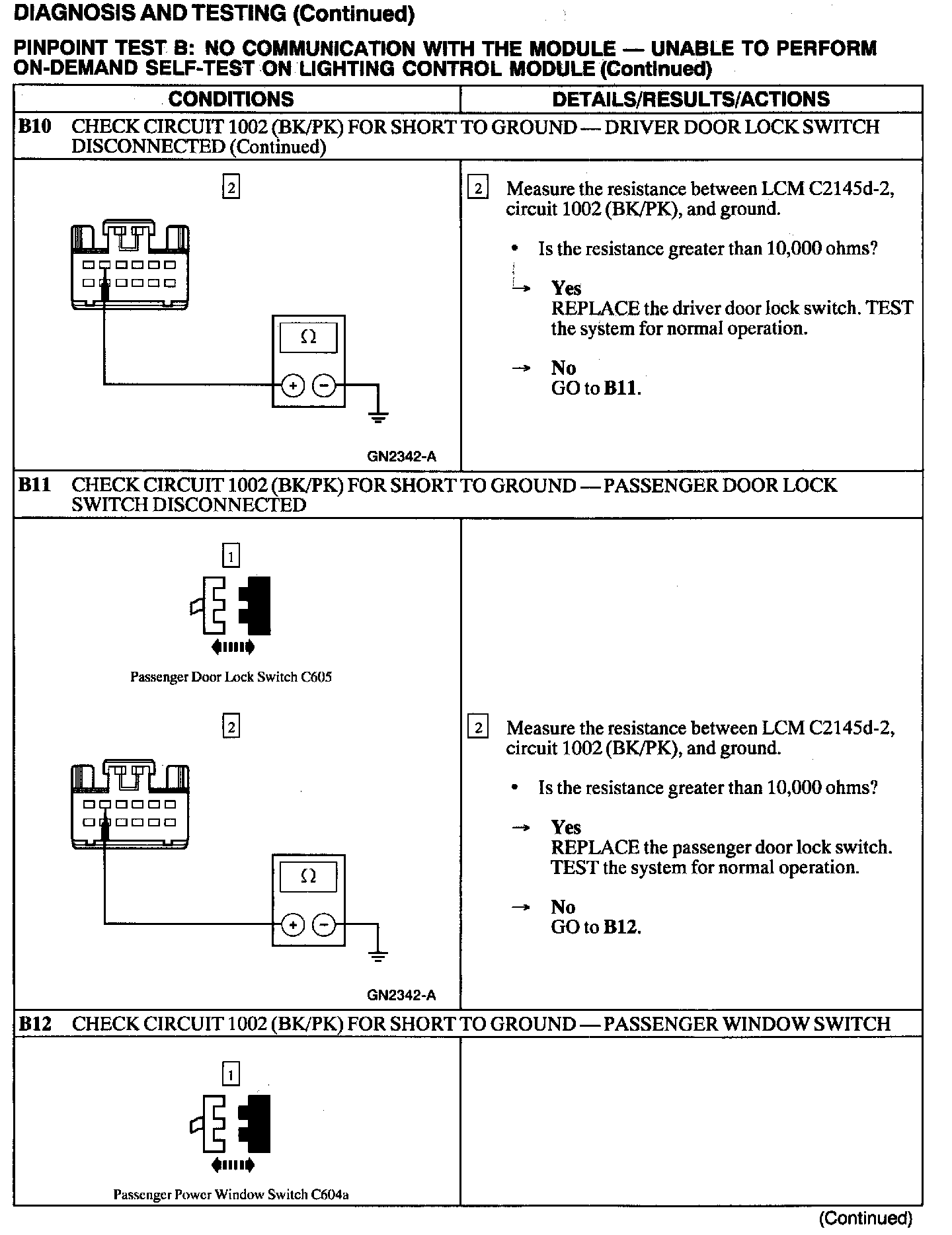

B8 - B10:
B10 - B12:

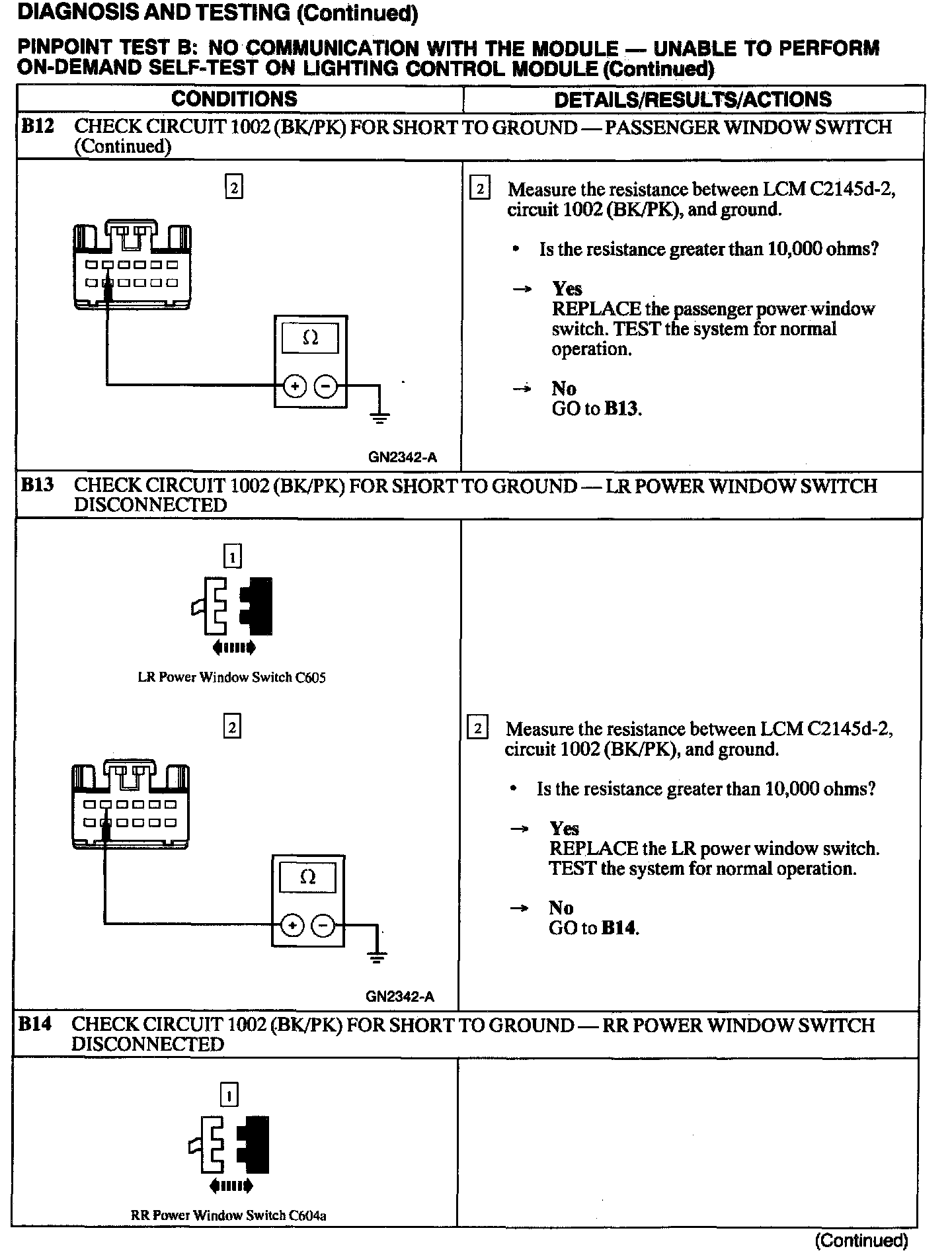

B12 - B14:

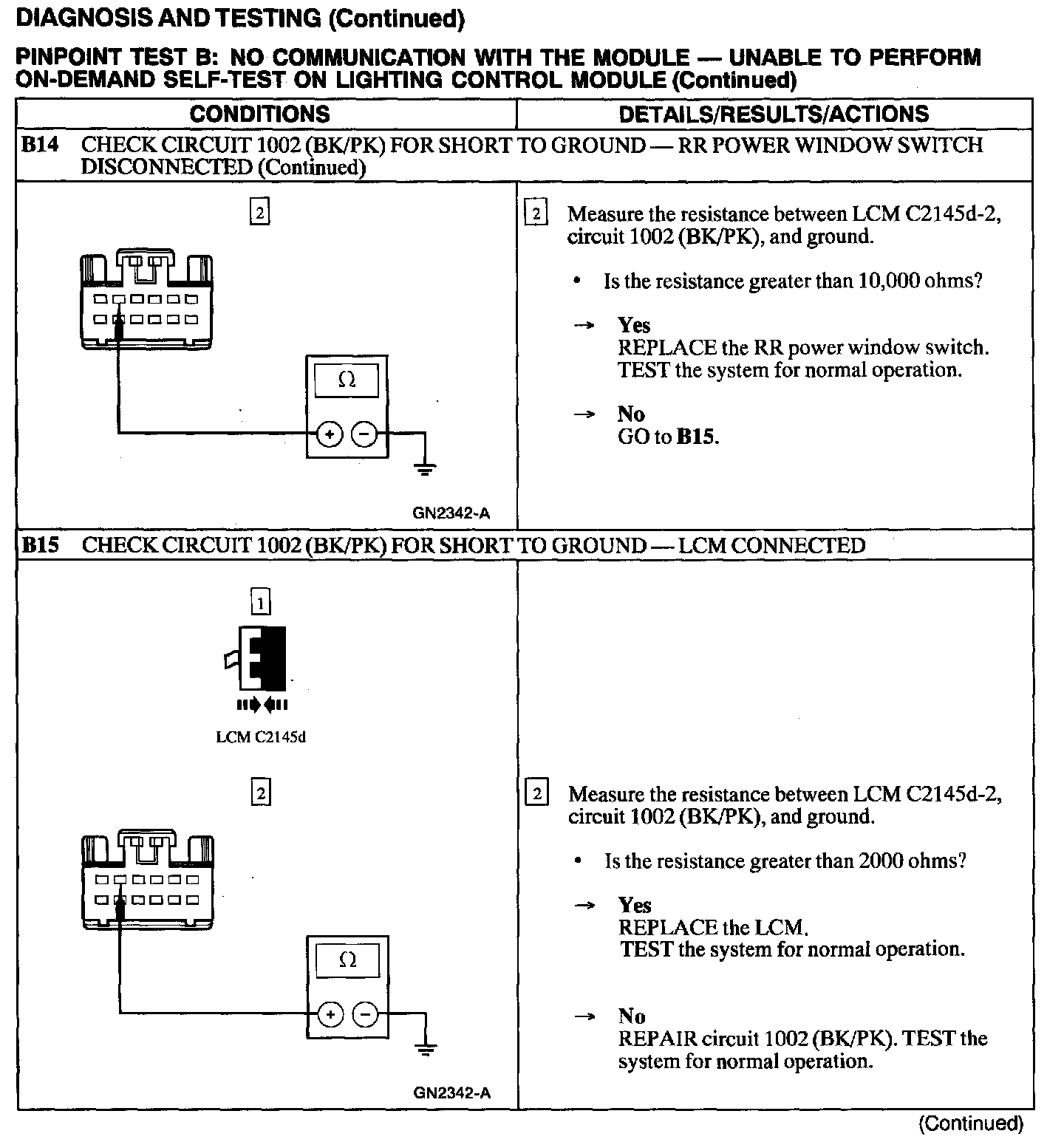

B14 - B15:
B16:

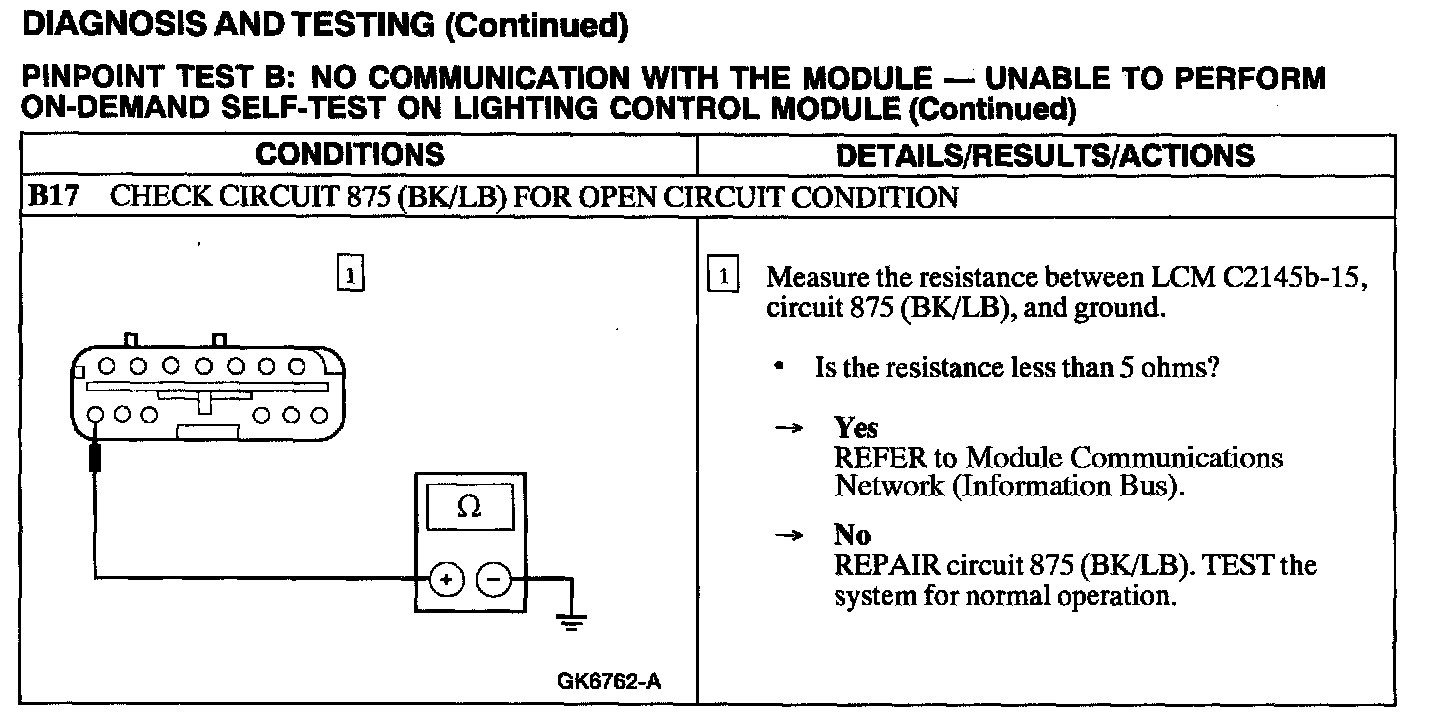

B17:
