Test D: Doors Do Not Lock/Unlock Using the Keyless Entry Keypad

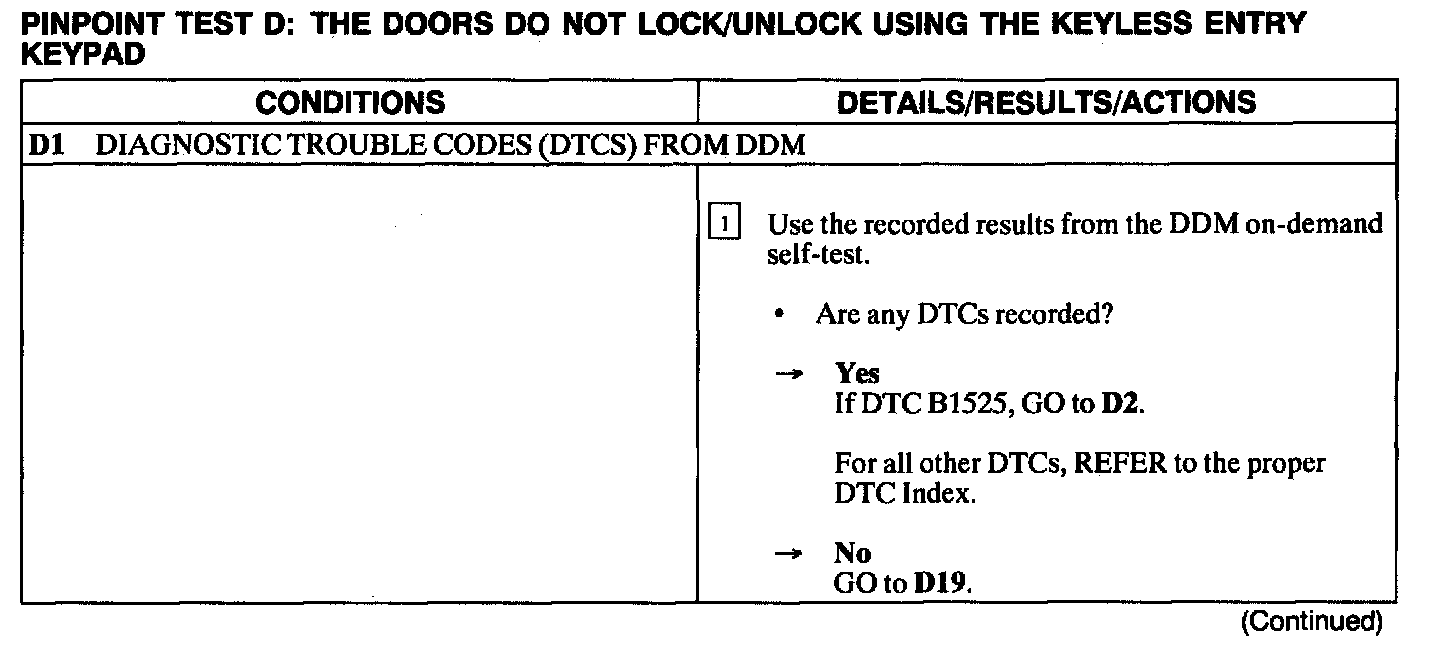

D1:

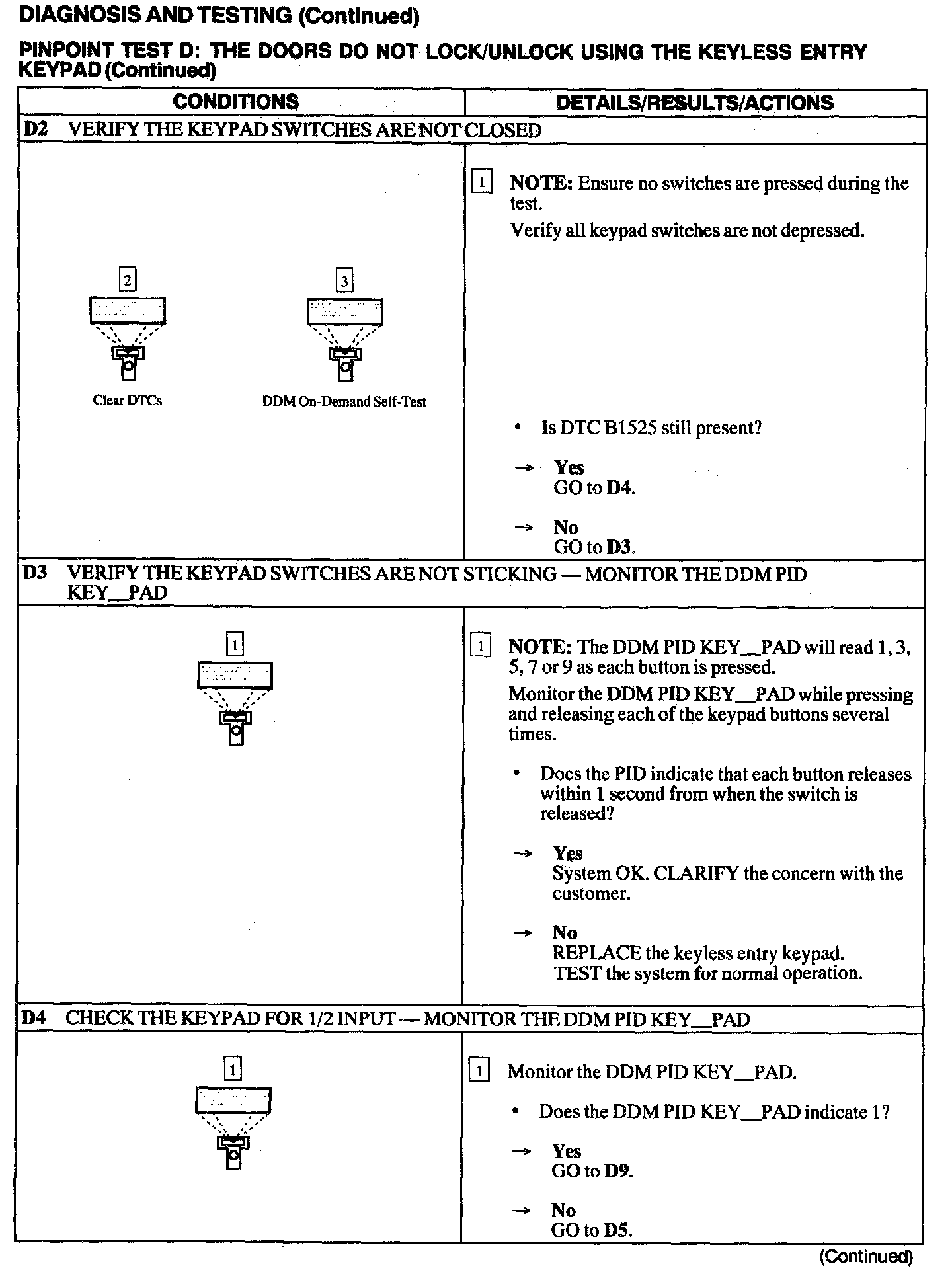

D2 - D4:

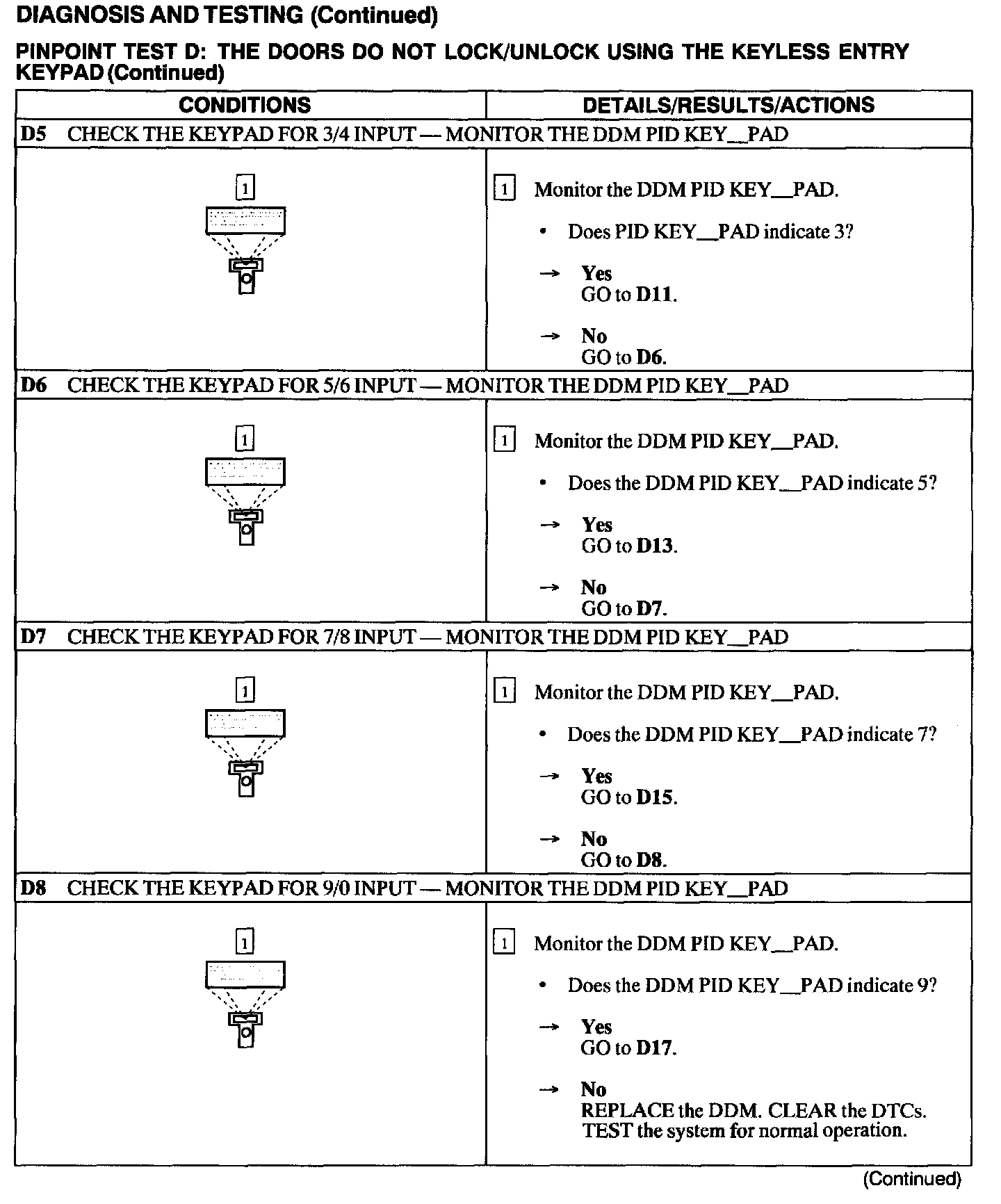

D5 - D8:

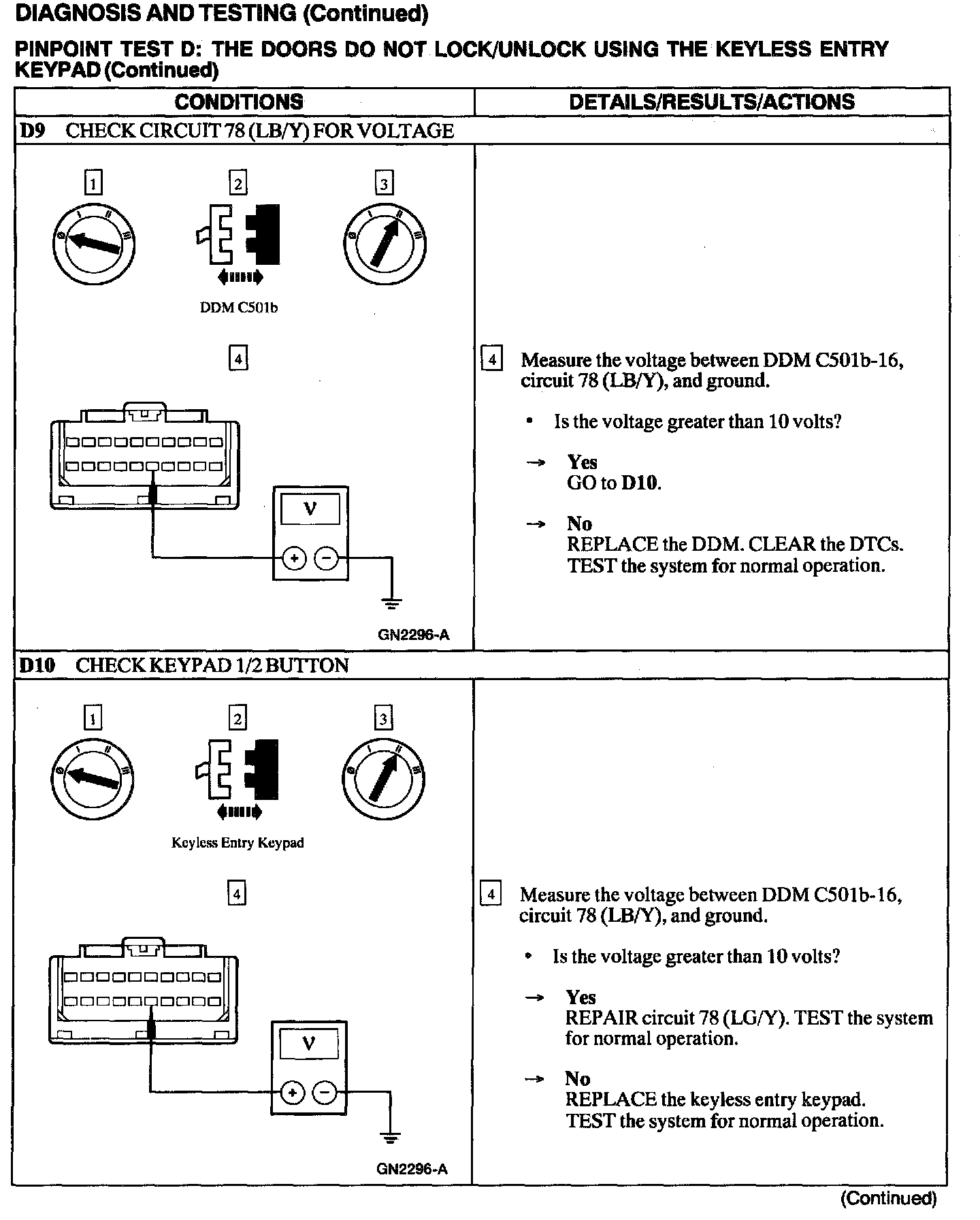

D9 - D10:

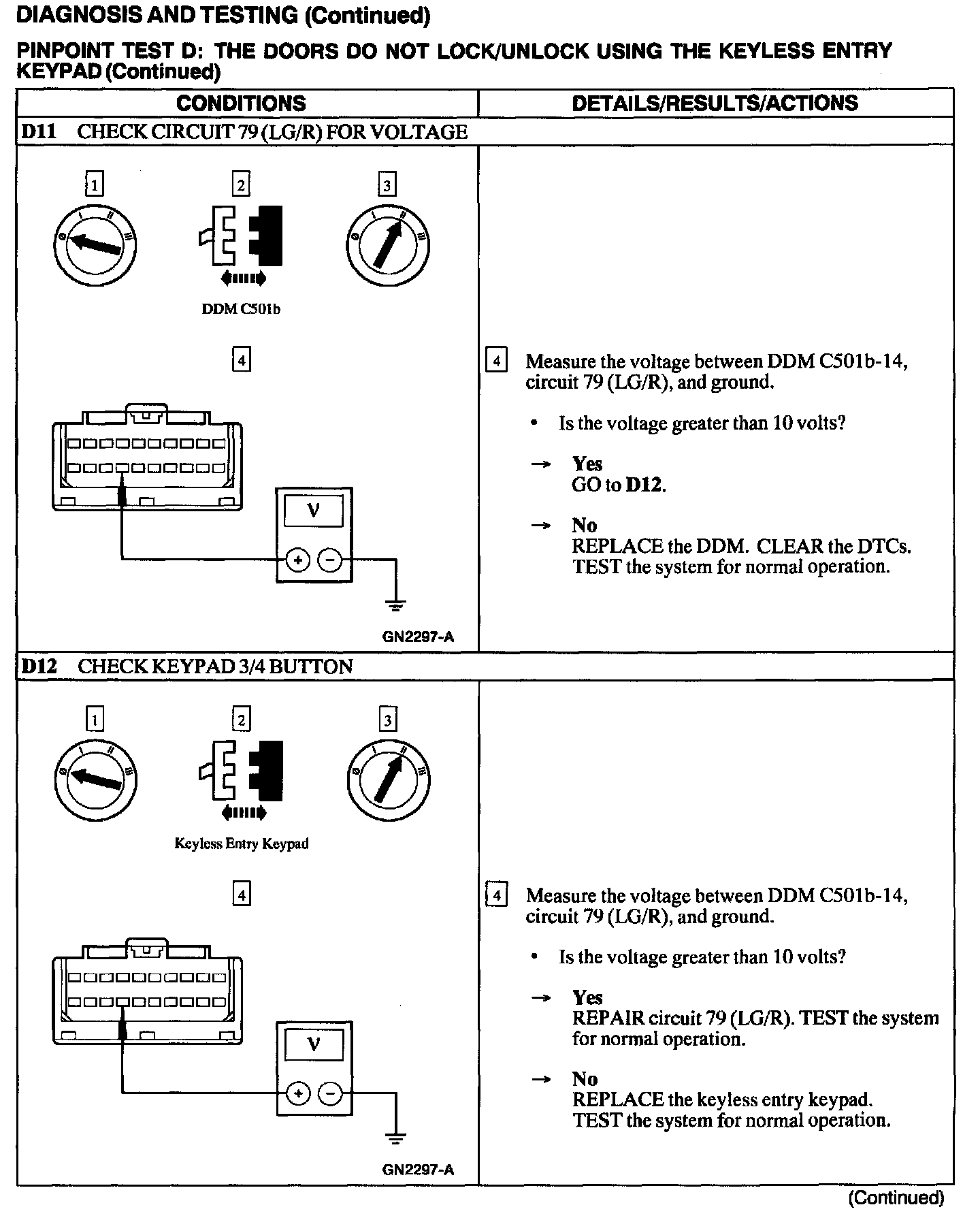

D11 - D12:

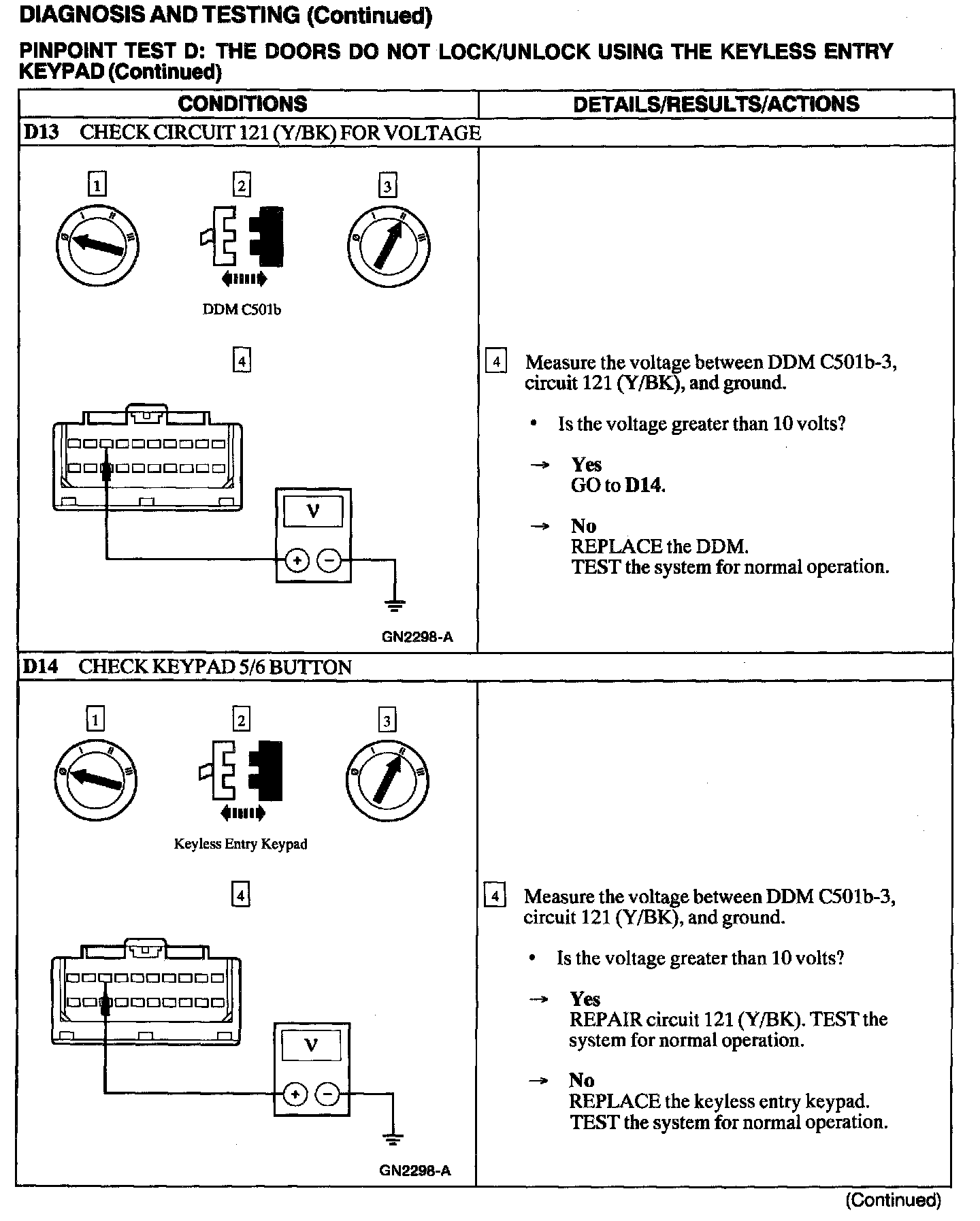

D13 - D14:

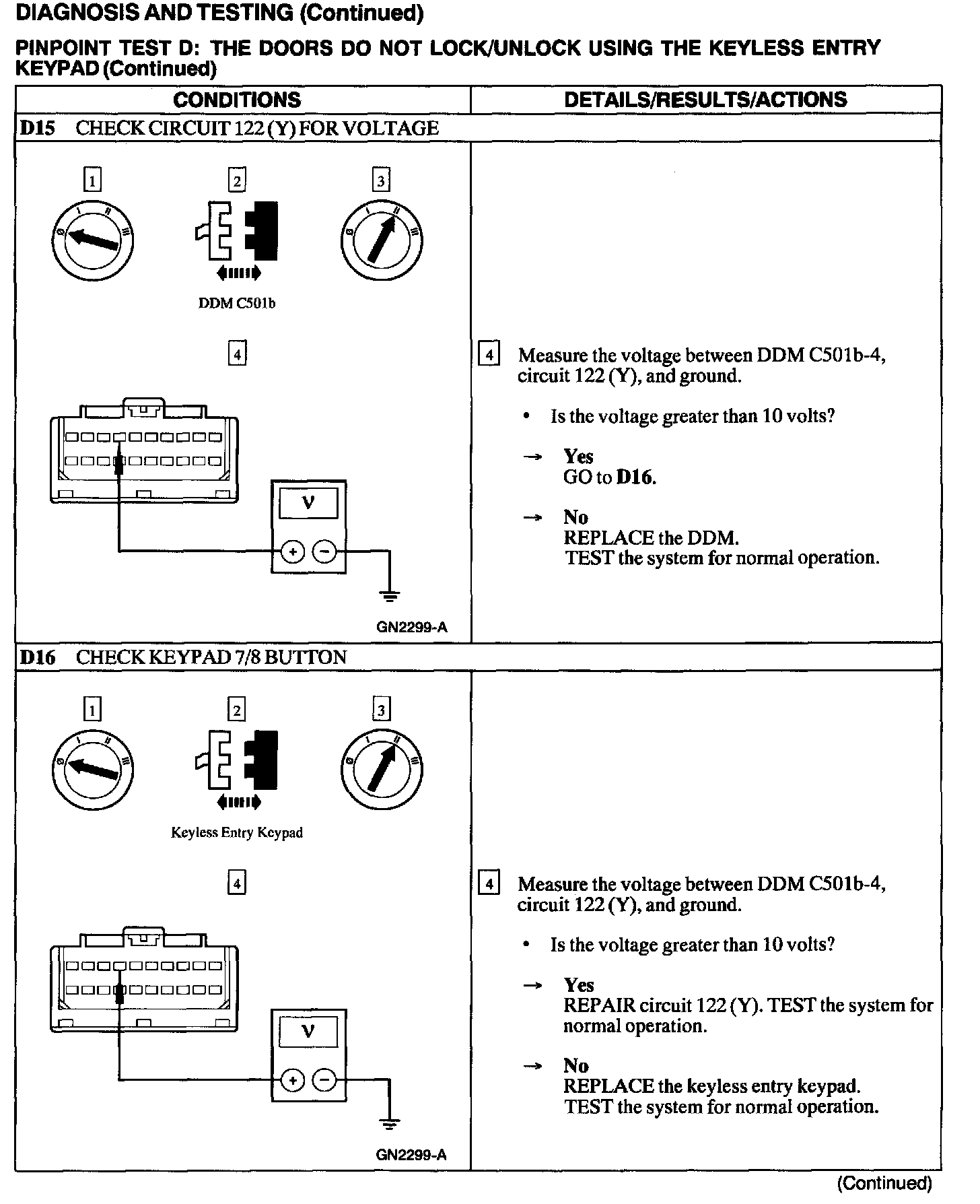

D15 - D16:






D17 - D18:






D19 - D20:

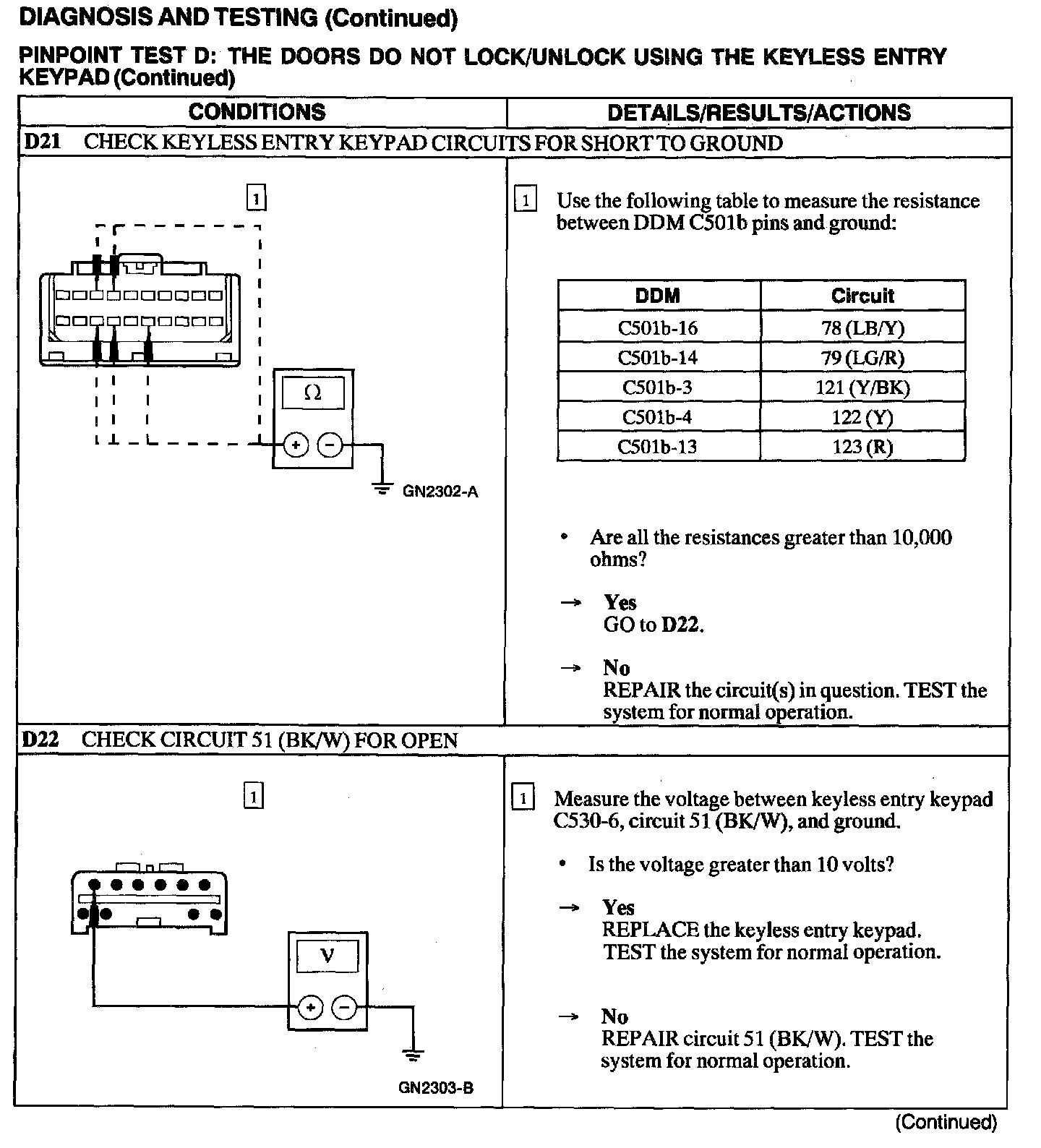

D21 - D22:

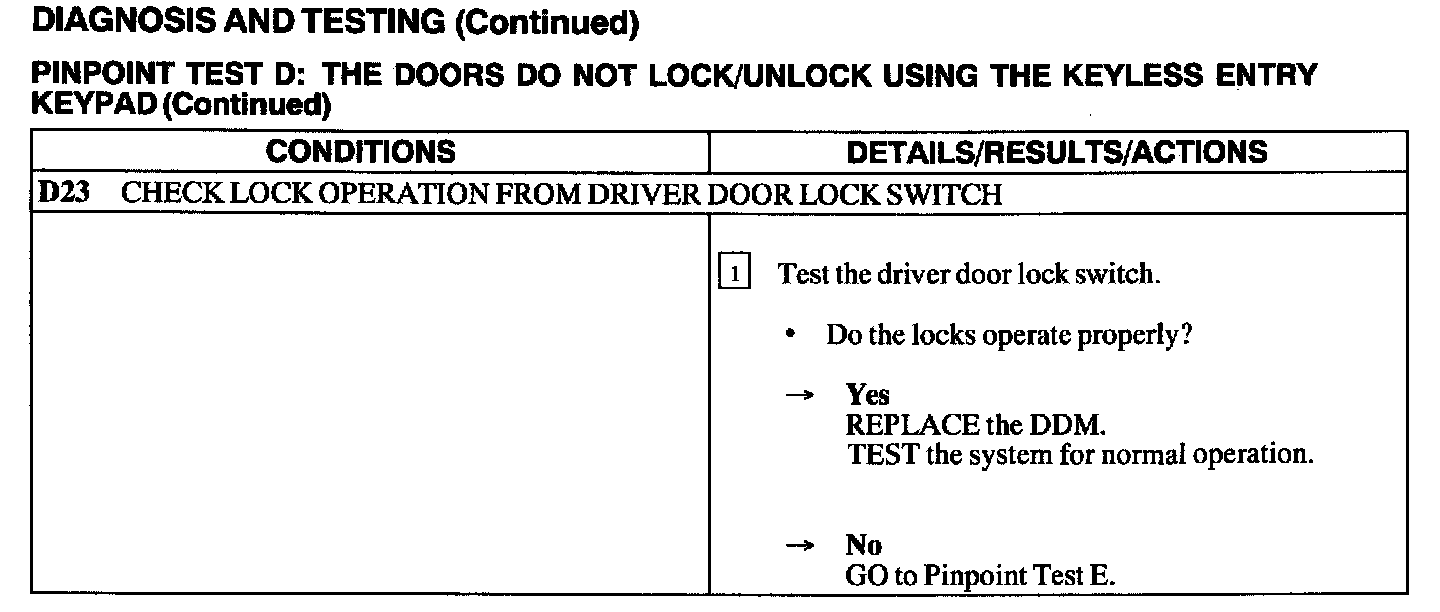

D23:
