Heating and Air Conditioning: Locations

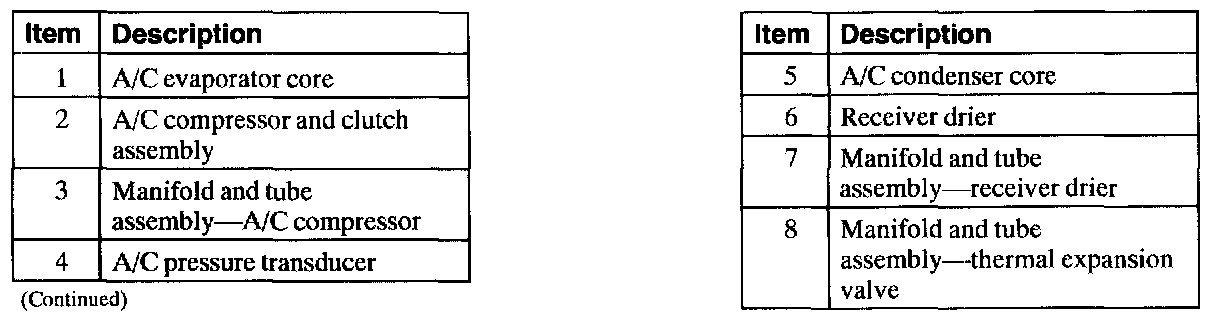

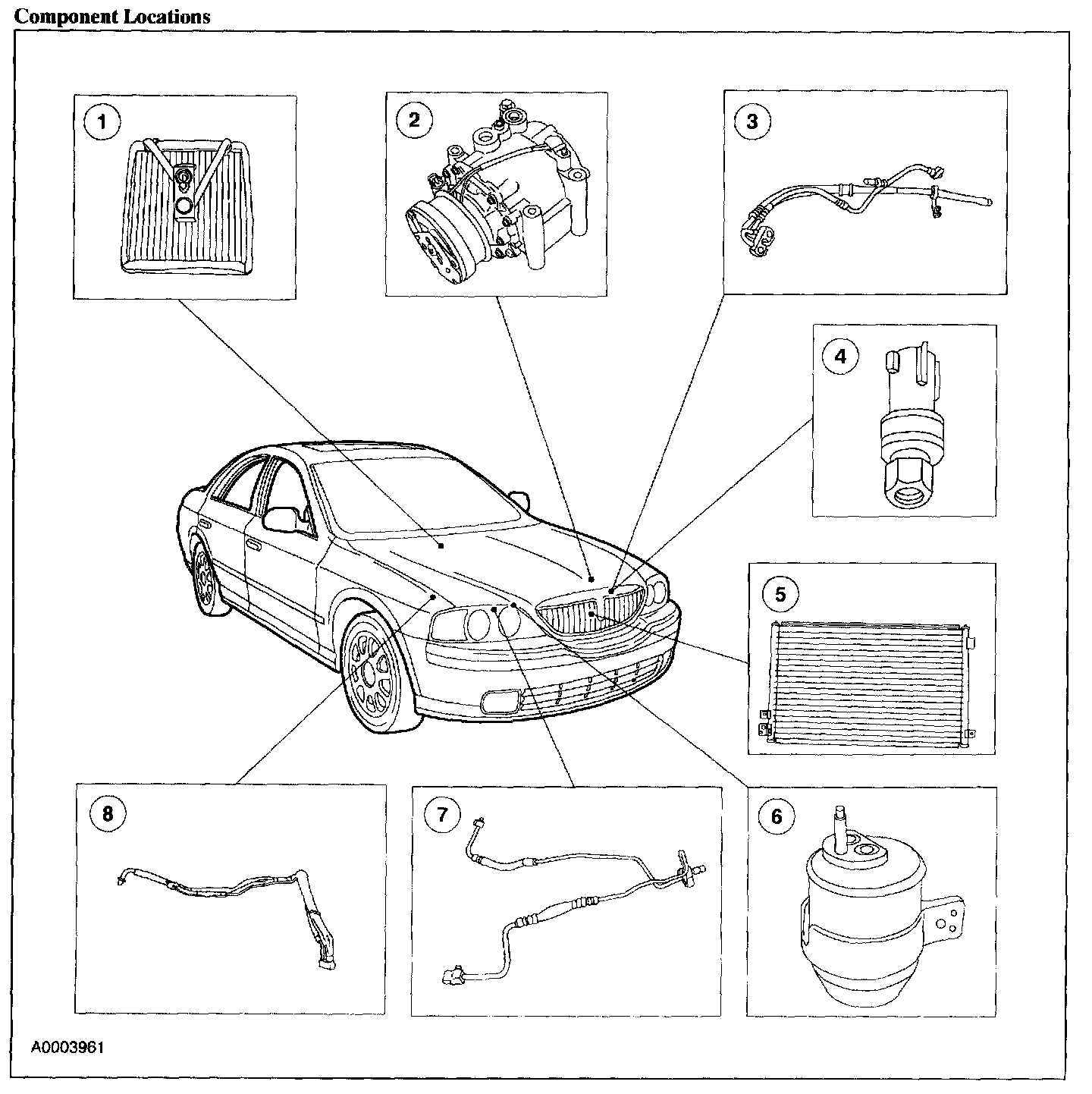

Component Locations, Part 1:

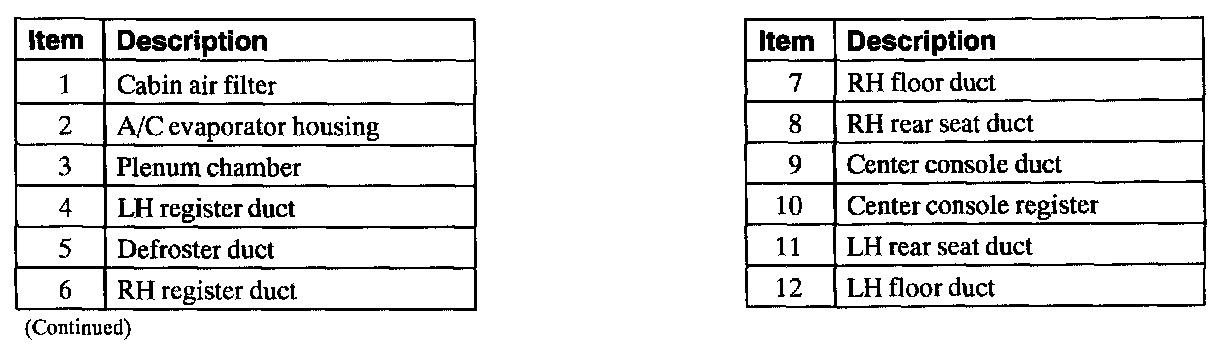

Component Locations, Part 2:






Component Lcoations:

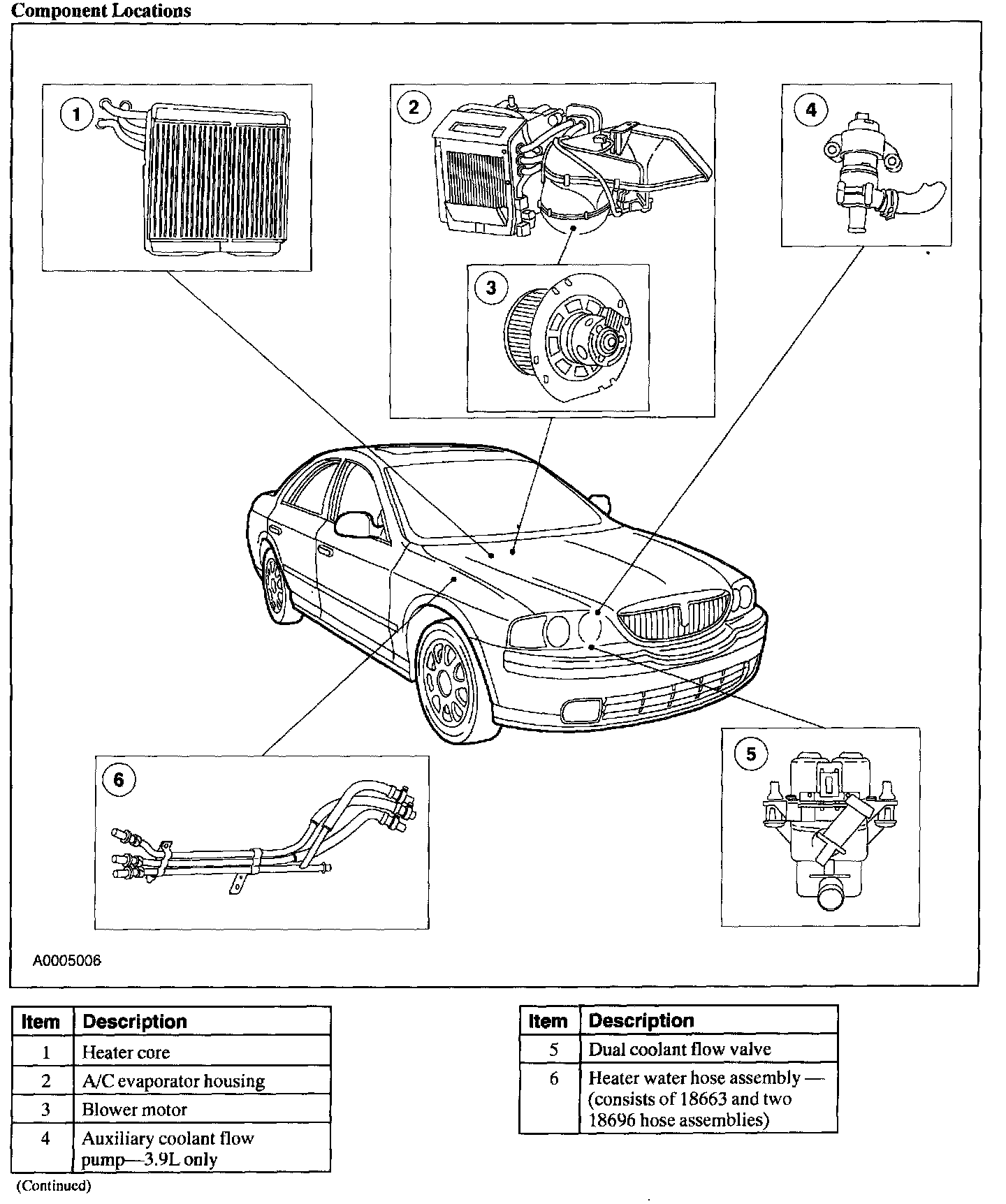

Component Locations, Part 1:






Component Locations, Part 2:






Component Locations, Part 1:






Component Locations, Part 2:
