Leak Detection Valve: Service and Repair

REMOVAL
1. Raise and support the vehicle.







2. Position a jack stand under the differential.

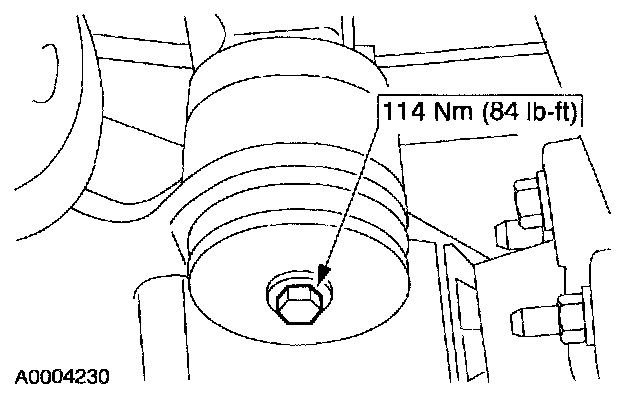

3. Remove the bolt.







4. Lower the differential to access the canister vent solenoid as necessary.







5. Remove the canister vent solenoid.
1 Disconnect the connector.
2 Disconnect the hose.
3 Remove the canister vent solenoid.

INSTALLATION
1. To install, reverse the removal procedure.
^ Carry out a leak test. Evaporative Emission System Leak Test
^ Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle

NOTE: Lubricate the O-ring seals with MERPOL(R).
