PINPOINT TEST L: THE HYBRID ELECTRONIC CLUSTER (HEC) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

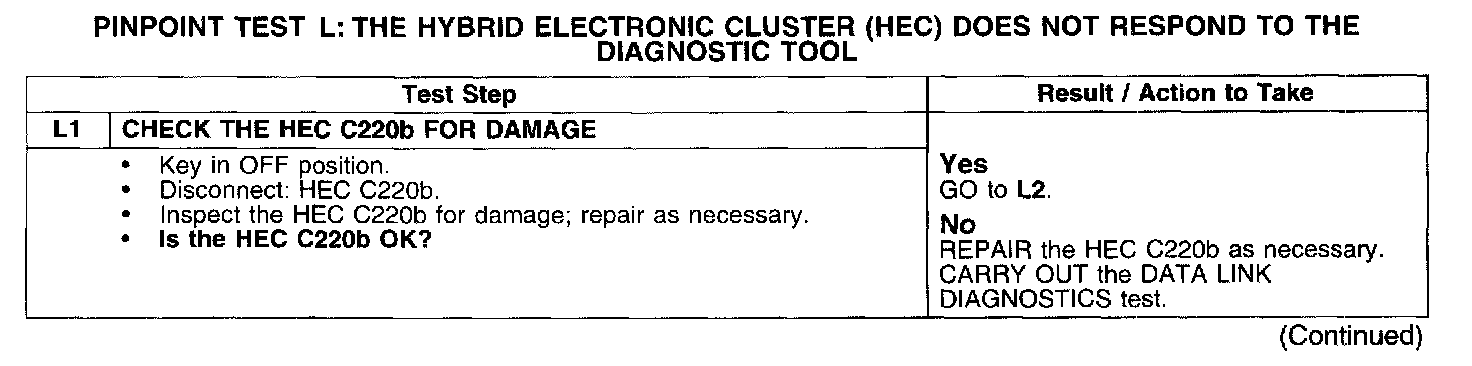

Test L1:

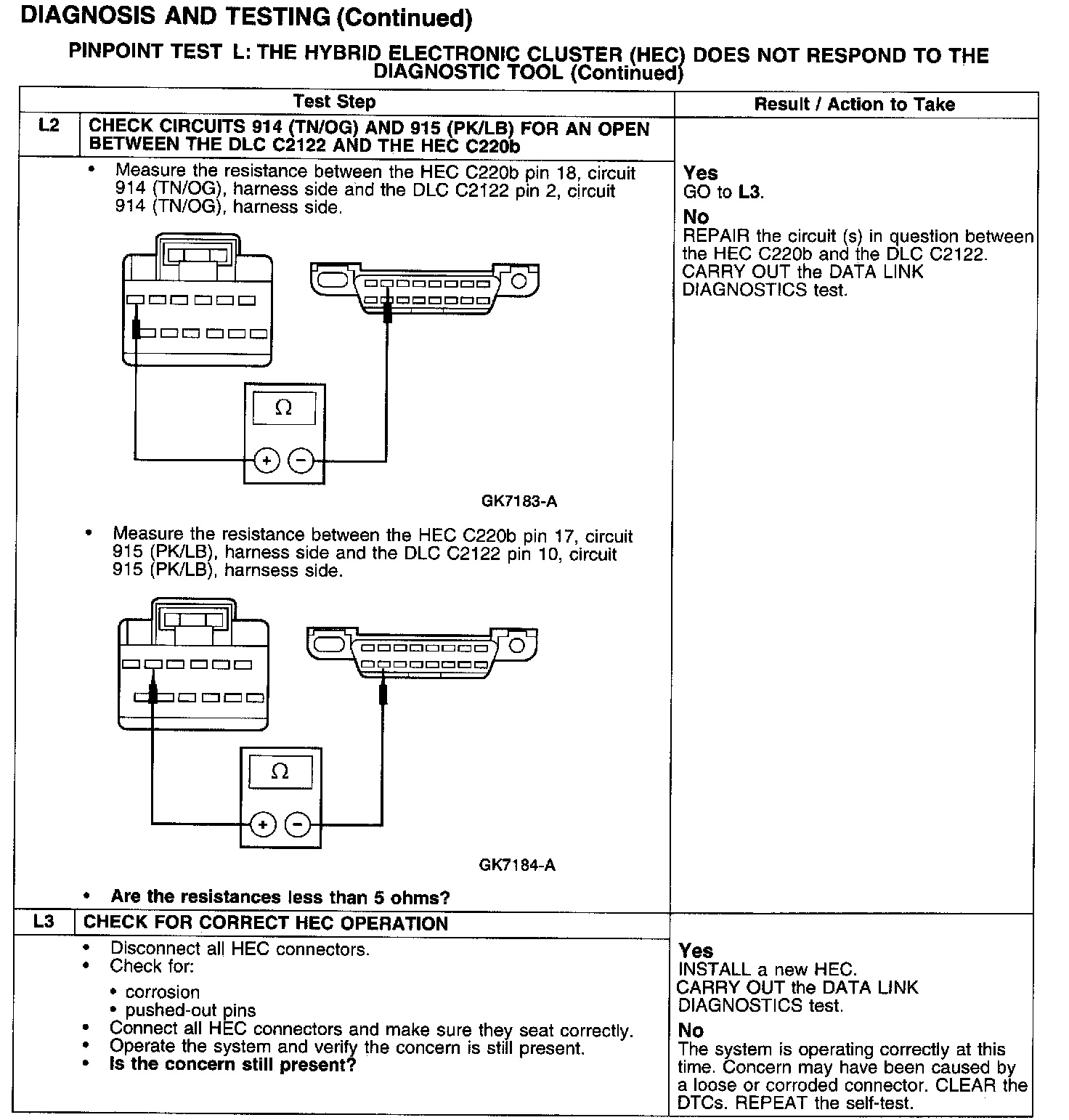

Test L2-L3:
