Audio Unit
AUDIO UNITREMOVAL
1. Disconnect the battery ground cable.
2. Remove the console finish panel.

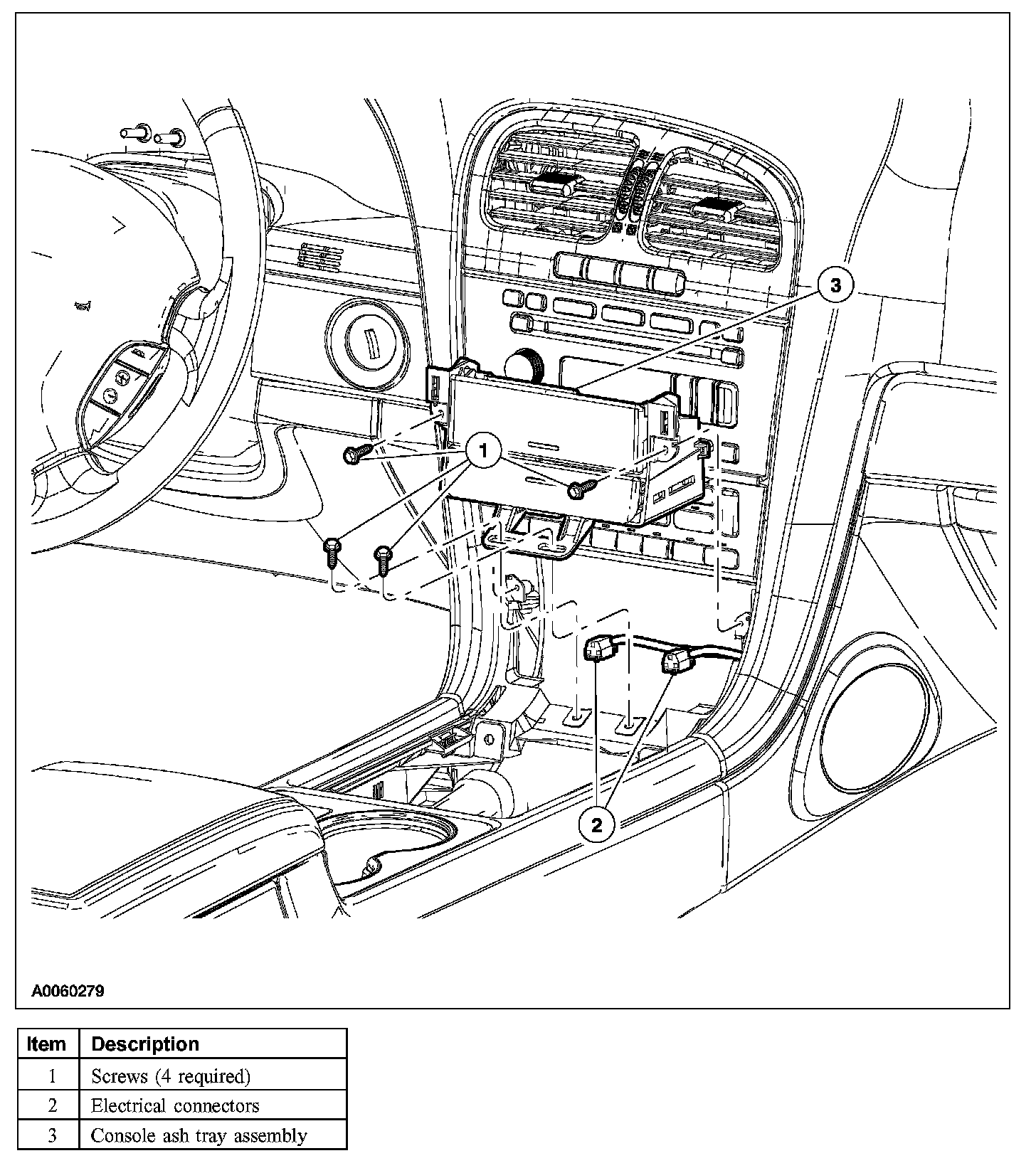

3. Remove the parts in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
REMOVAL
1. Disconnect the battery ground cable.
2. Remove the console finish panel.

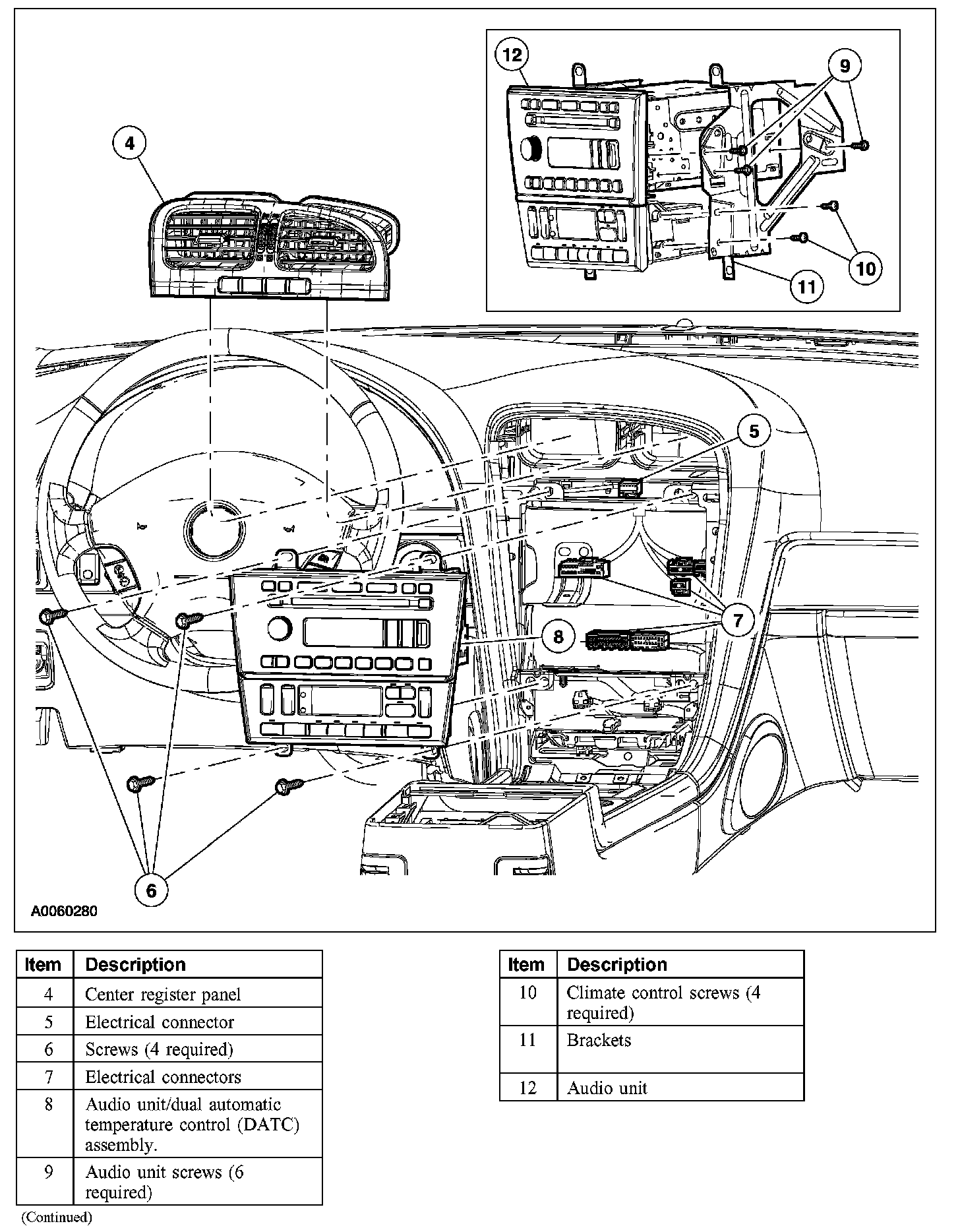

3. Remove the parts in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
