Home >> Lincoln >> 2004 >> LS V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Auxiliary Junction Box C283b

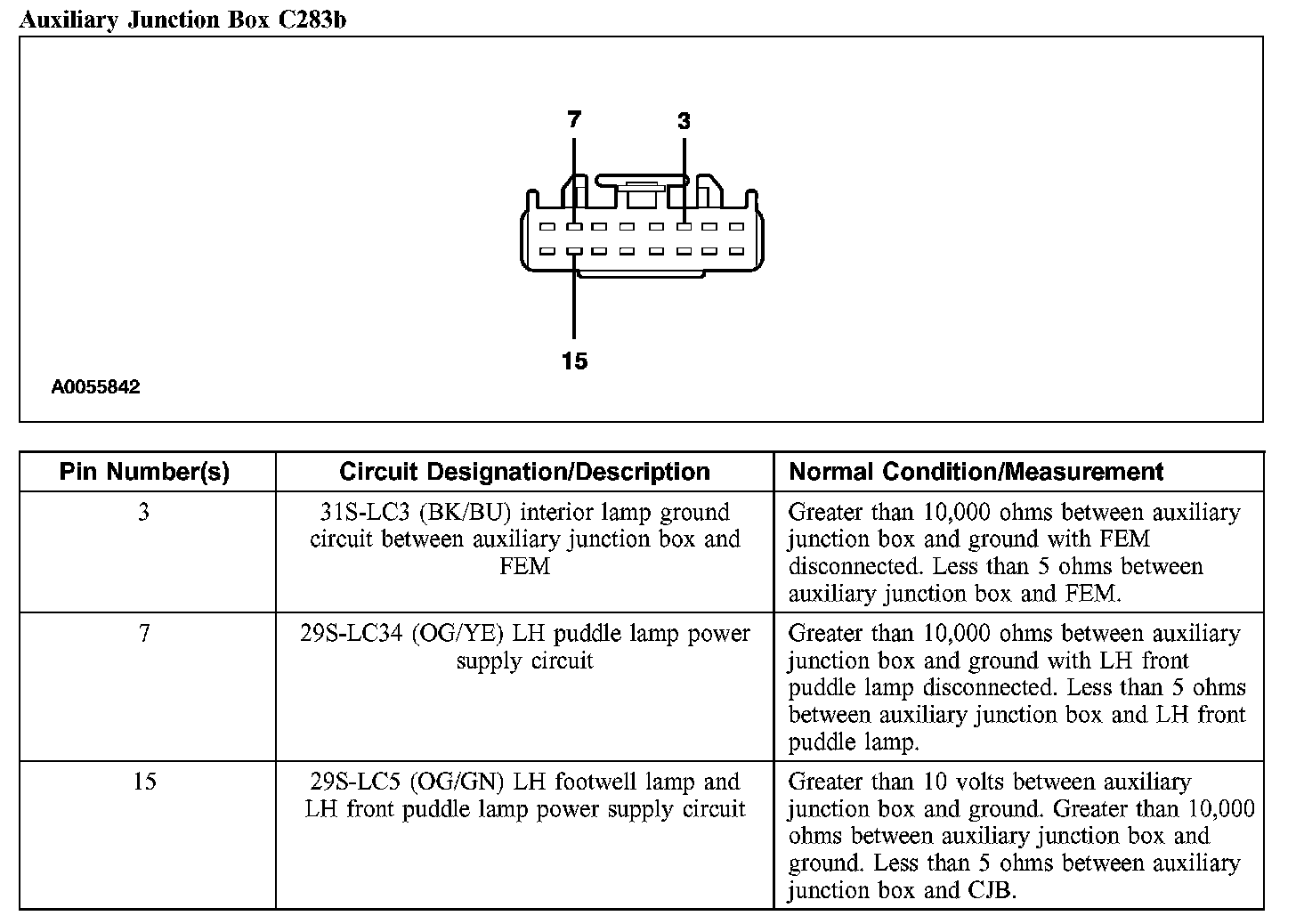

Auxiliary Junction Box C283b

Auxiliary Junction Box C283b:
