Steering Angle Sensor: Service and Repair

Steering Wheel Rotation Sensor

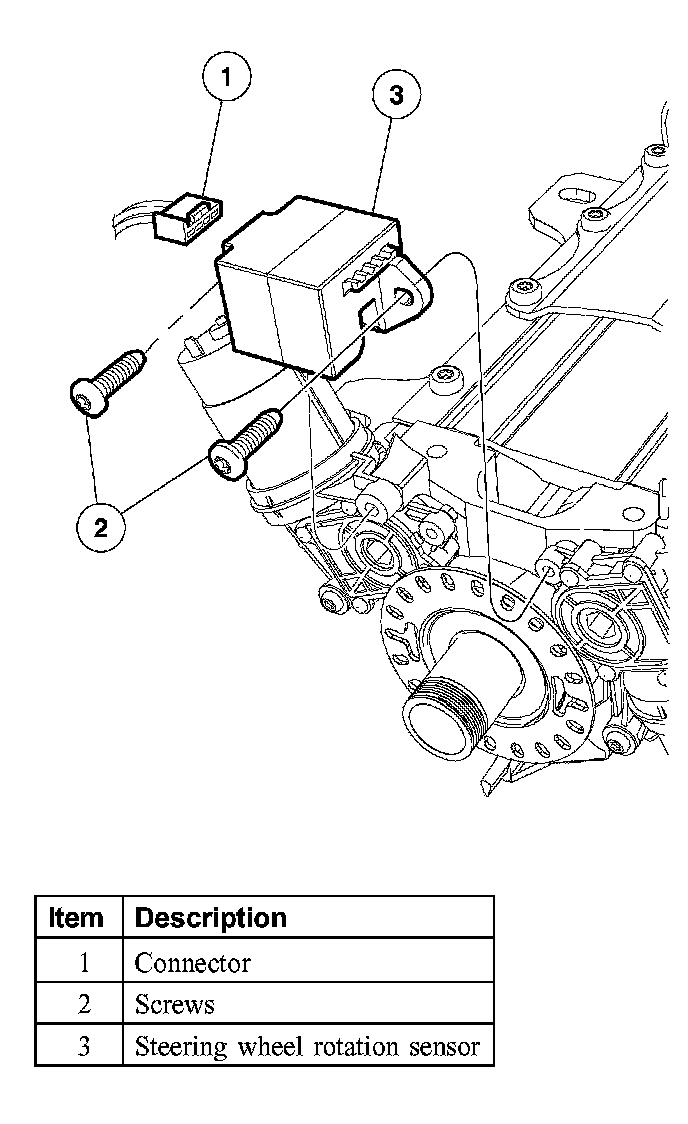

1. Remove the parts in the order indicated in the illustration and table.
