Home >> Lincoln >> 2004 >> Town Car V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Components >> Component Location Views >> View 151-46

View 151-46

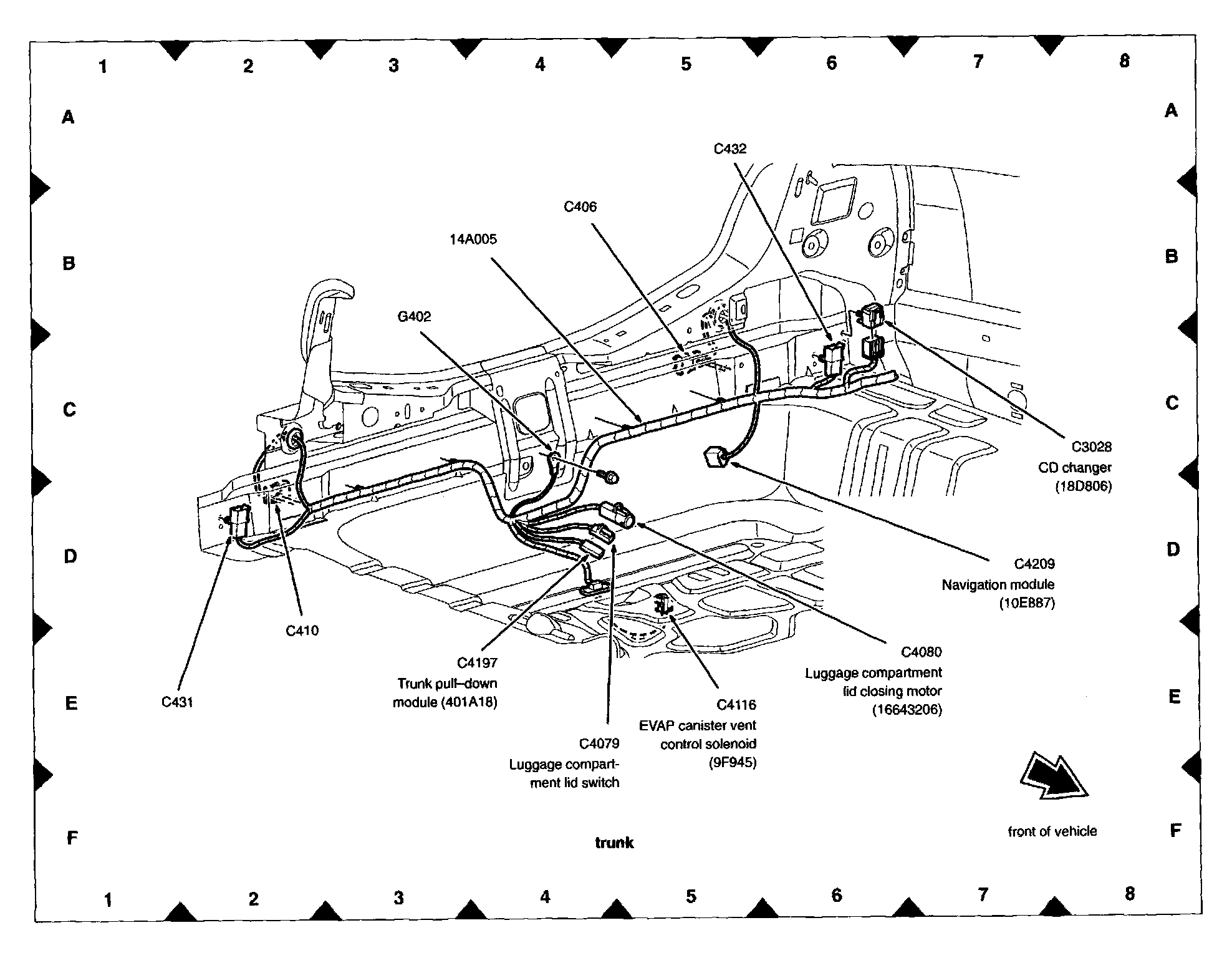

View 151-46:

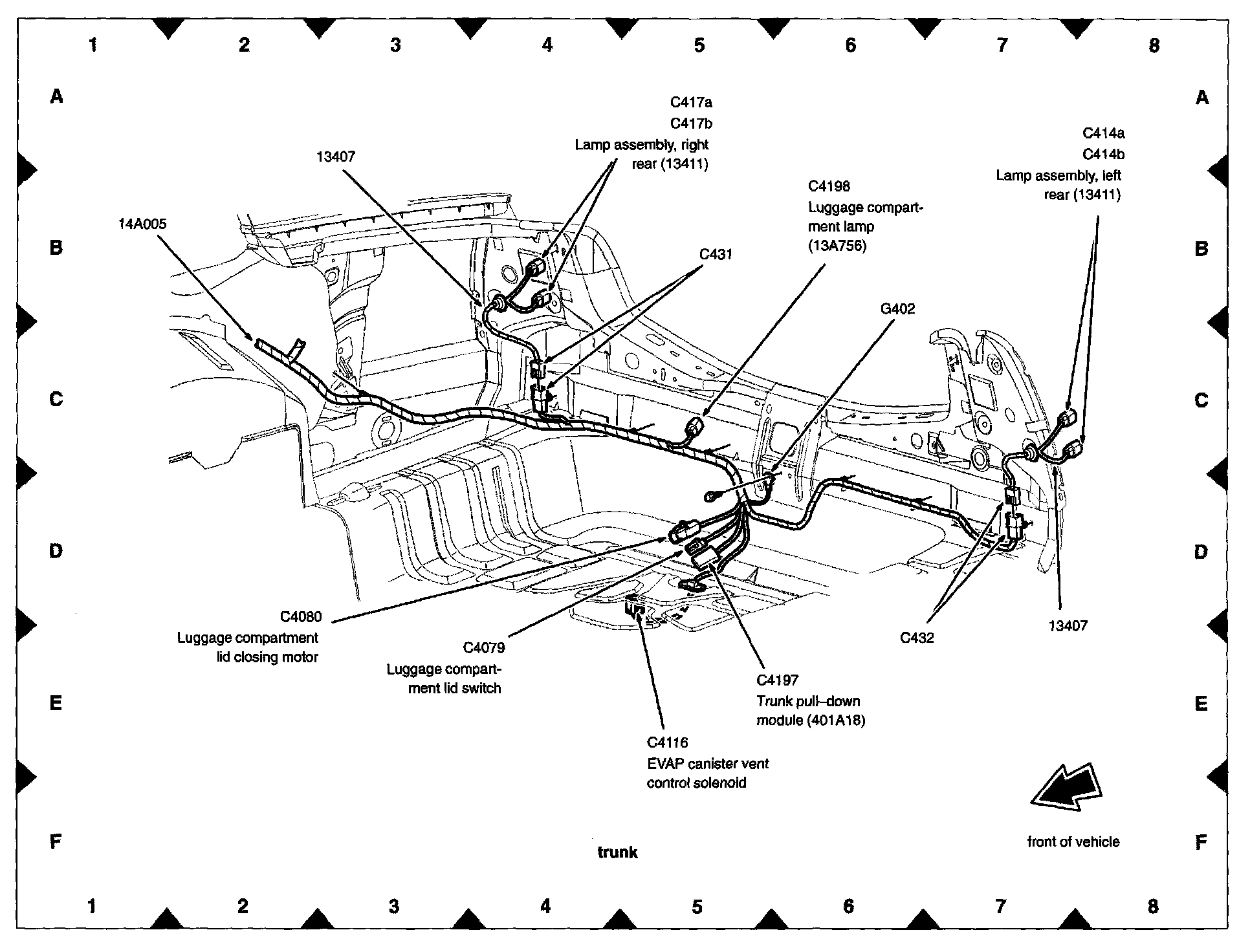

View 151-50:
