Message Center

Oil Minder Mode
Normal mode

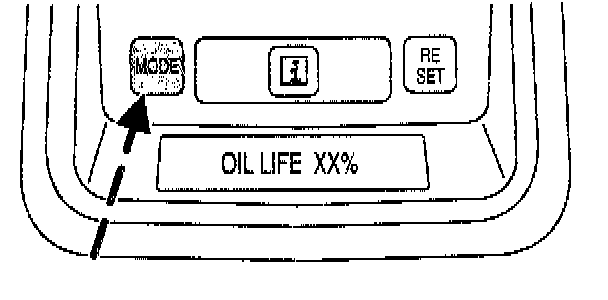

To enter oil minder mode, press the MODE button repeatedly until OIL LIFE XX % is displayed. XX will be 6-100 When Oil life is OK


Change Oil Soon
The overhead console will warn the user that it is time to change the oil based on:
- the number of engine revolution counts,
- number of miles driven or
- the calendar time since the last "Oil Life" reset.
These values are constantly updated while the vehicle is running.

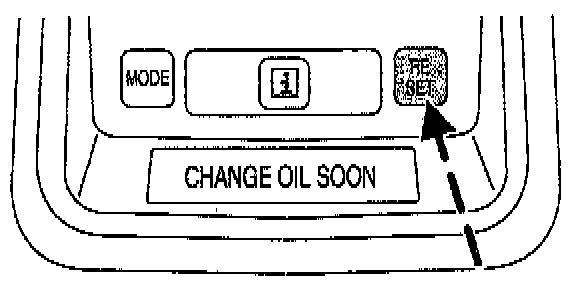

When CHANGE OIL SOON is displayed as a warning, it will be displayed until the RESET button is pressed and revert back to the previous mode.

Change Oil Now

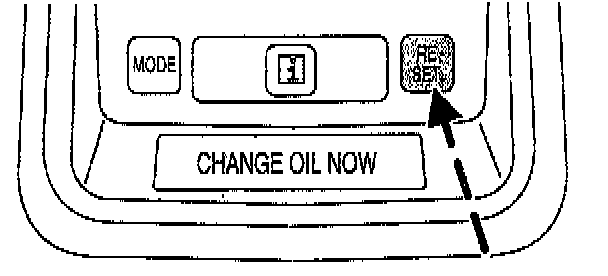

The overhead console will warn the user that the oil needs changing when CHANGE OIL NOW is displayed.
This warning will remain ON until the oil life is reset in oil minder mode (unless a higher priority message is requested).
In any other mode, the CHANGE OIL NOW warning can be cleared by pressing RESET button but will return after a period of time.

Reset Oil Life Mode
To reset oil minder when the vehicle oil is changed:
1. Press the MODE button repeatedly until one of these three messages is displayed;

Oil Life XX %:

OIL LIFE XX %,

Change Oil Soon:

CHANGE OIL SOON or

Change Oil Now:

CHANGE OIL NOW.

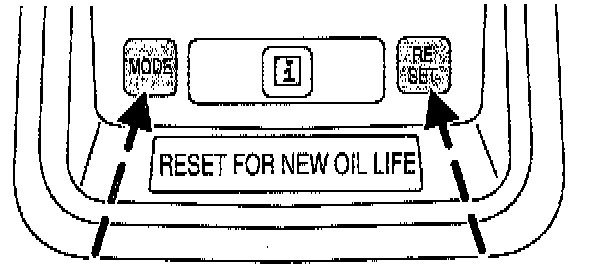

2. Press and hold the MODE button for 5 seconds until

Reset For New Oil Life:

RESET FOR NEW OIL LIFE is displayed.
3. Press and hold the RESET button for 2 seconds. The oil life value will be reset to 100%

Note: If the RESET button is not pressed after one minute of no activity, the original oil life will be restored.

Note: If power is interrupted during the reset oil life mode, the overhead console resets the oil life to the original value.
