Test A

PINPOINT TEST A: THE ENGINE DOES NOT CRANK

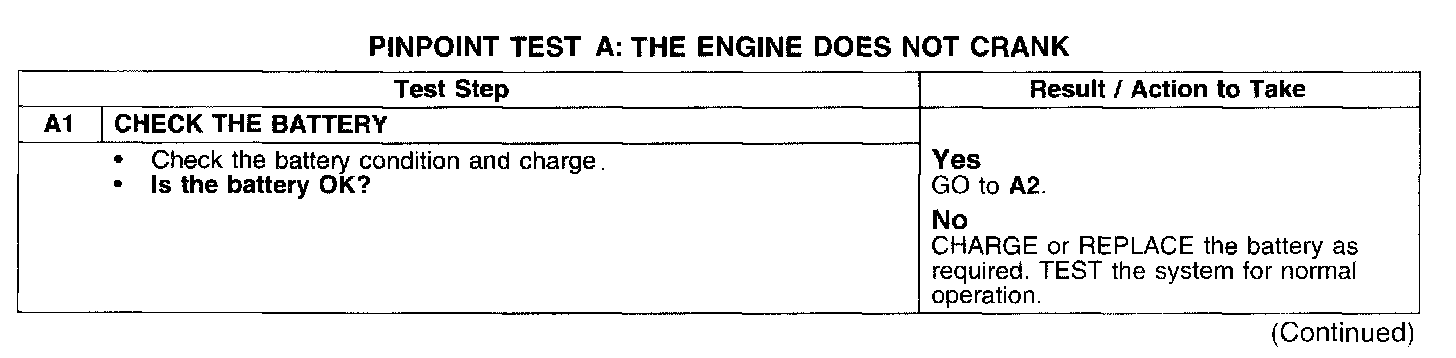

Test A1:

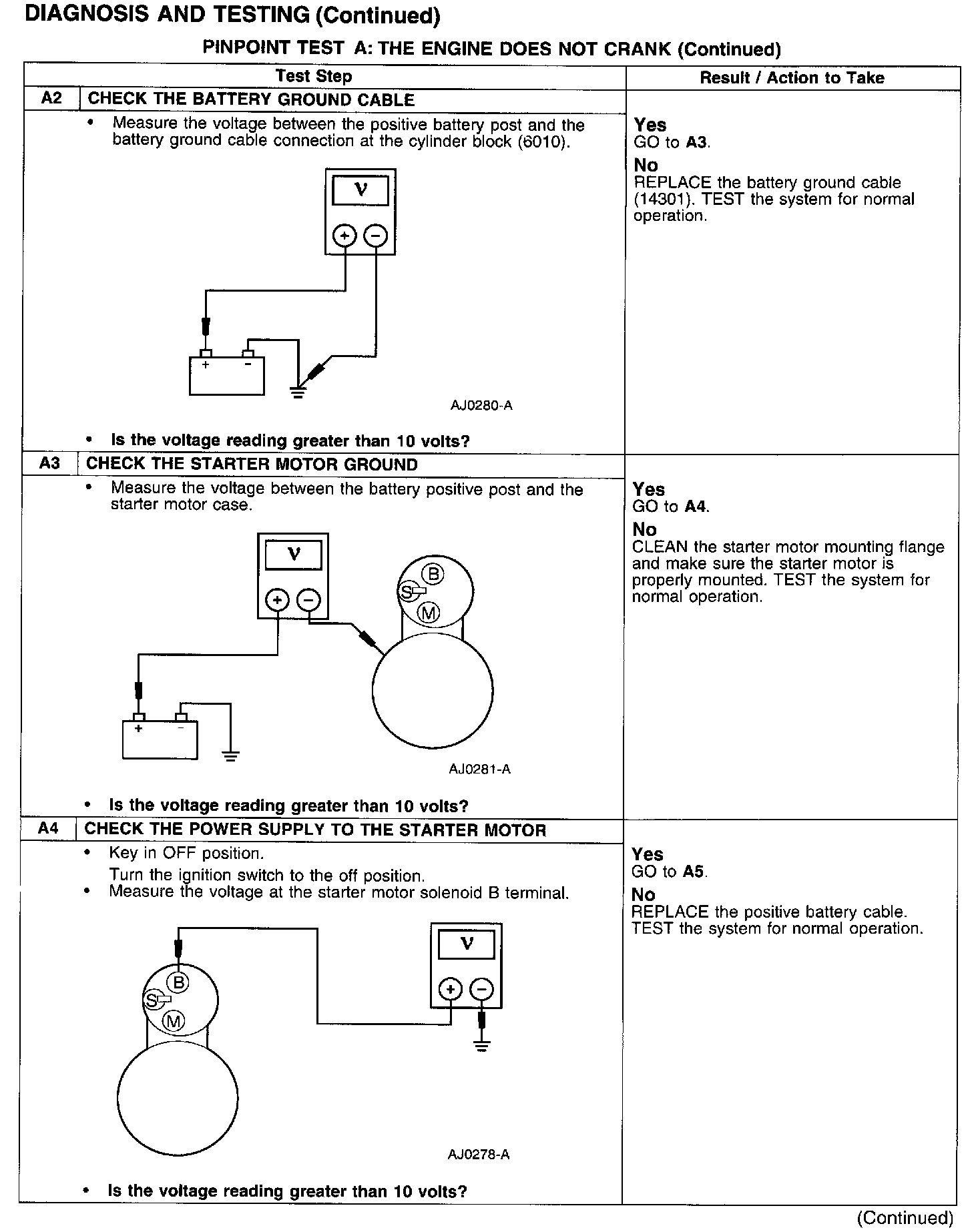

Test A2-A4:

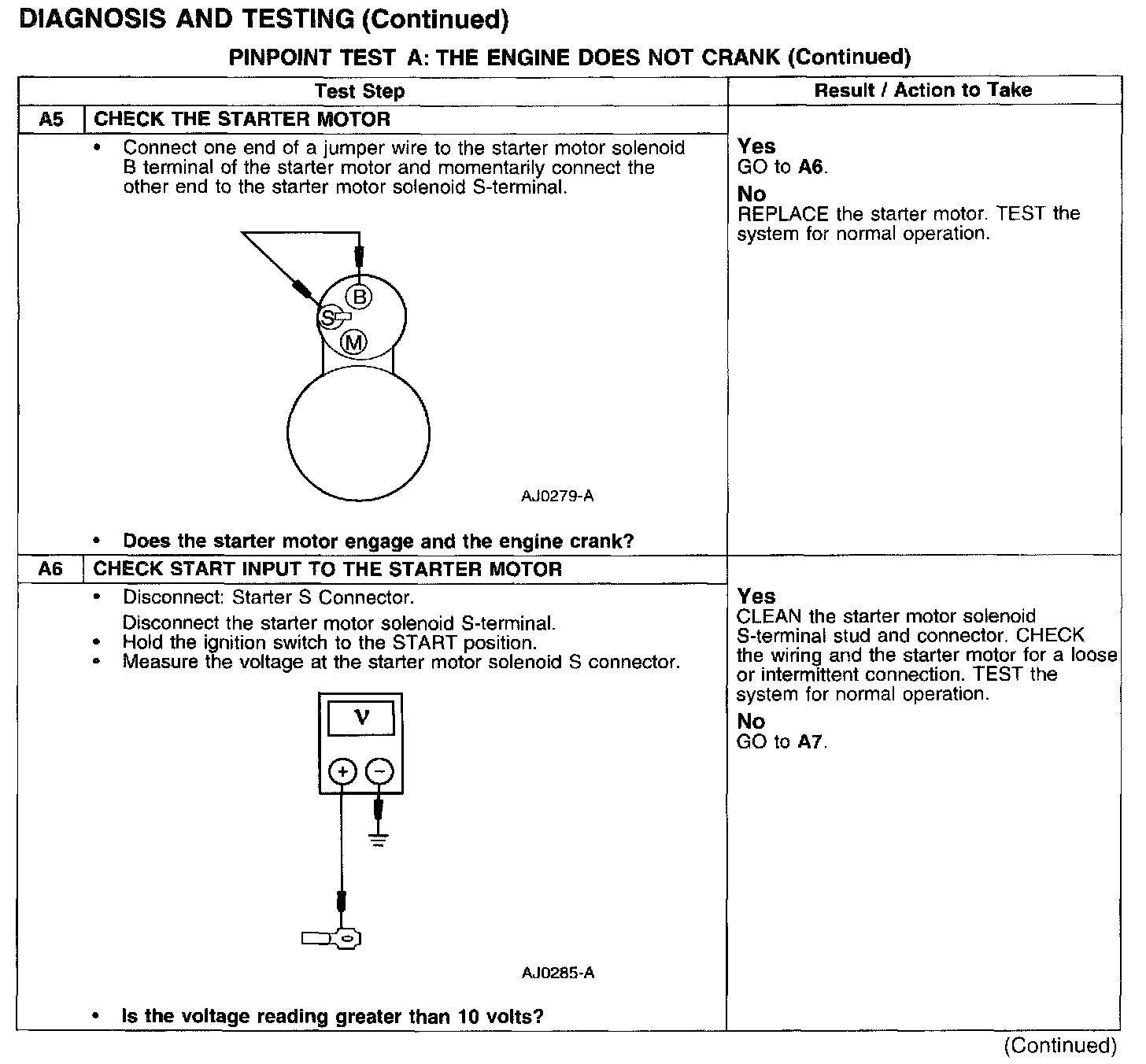

Test A5-A6:

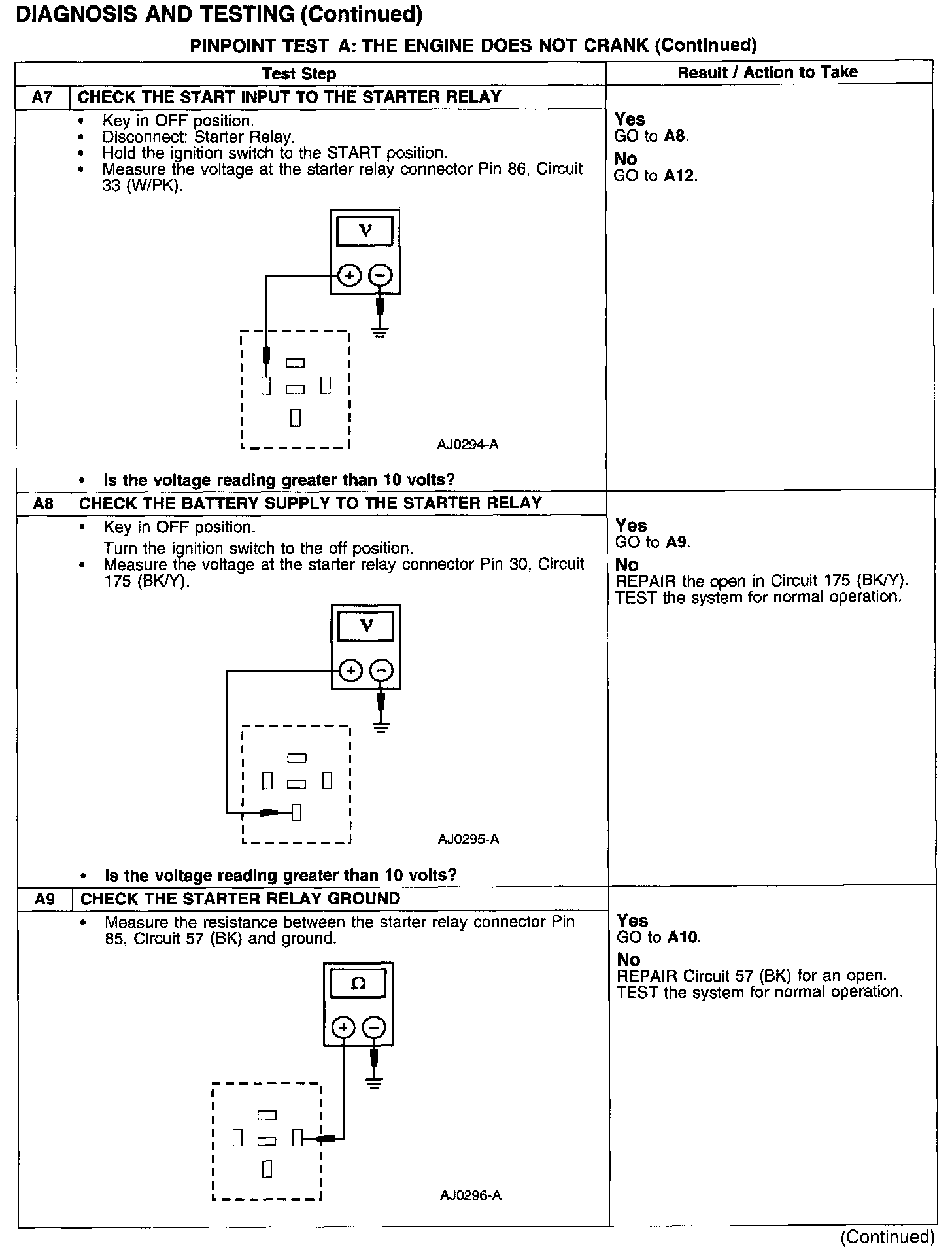

Test A7-A9:

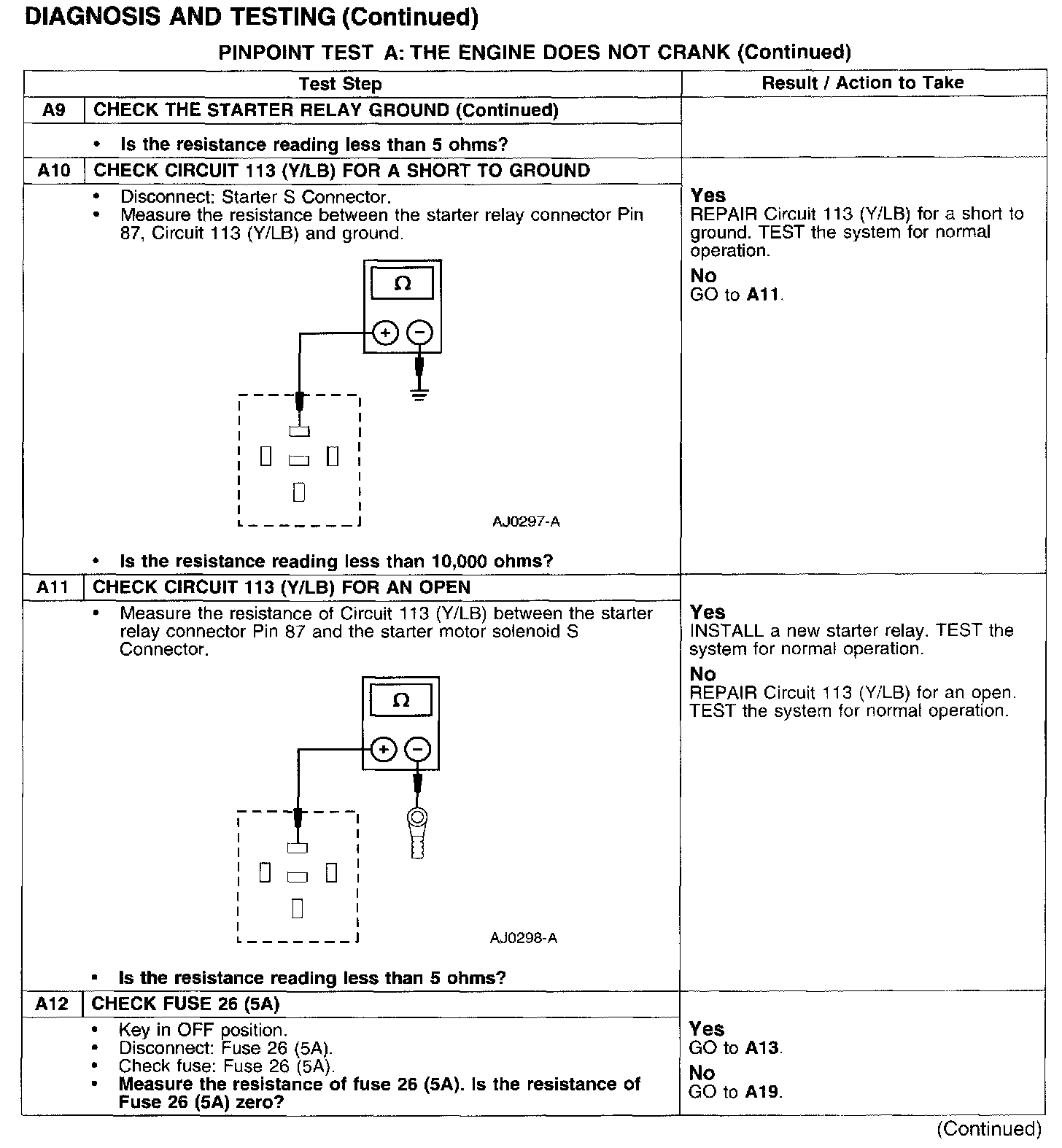

Test A9-A12:






Test A13-A14:

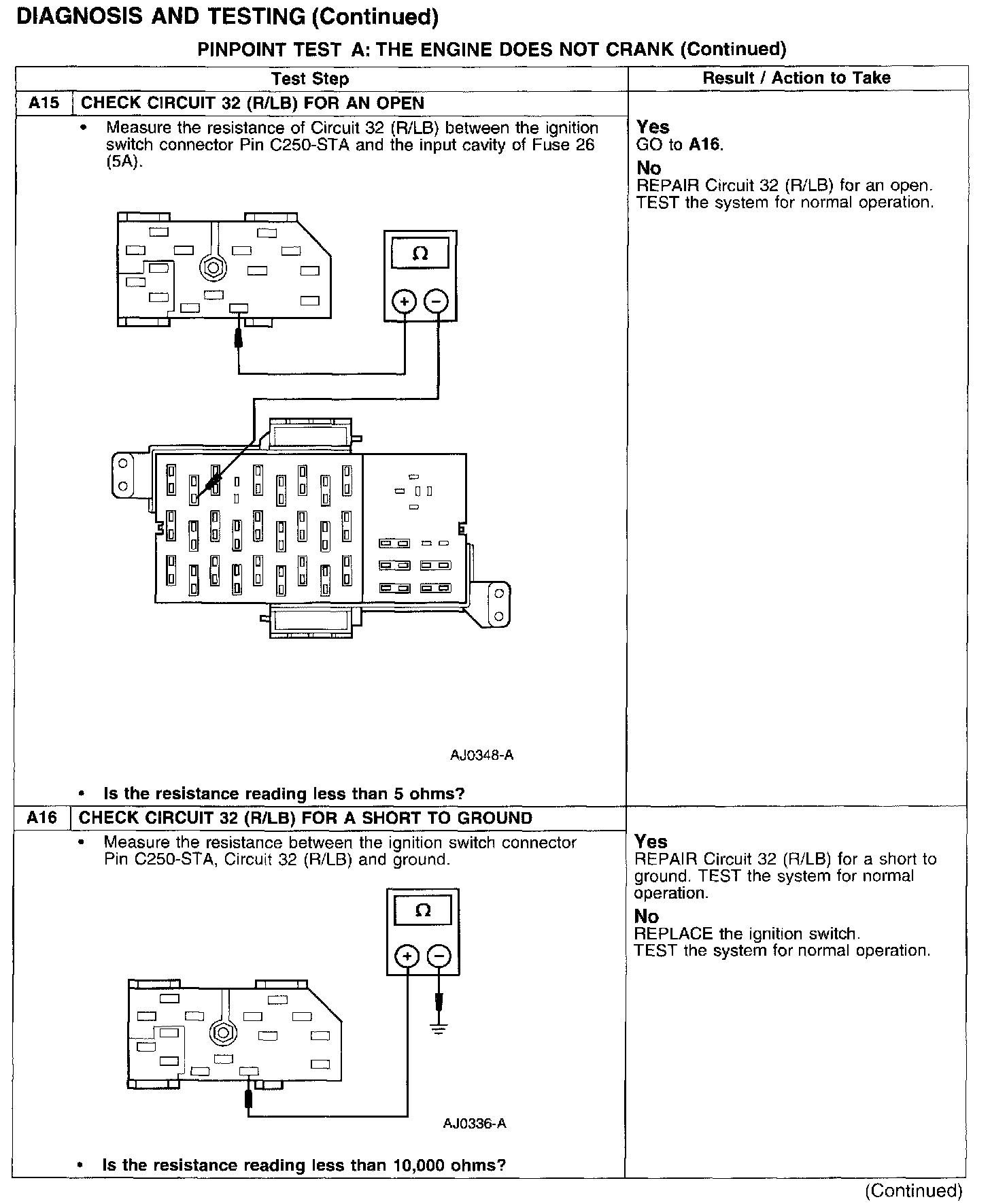

Test A15-A16:

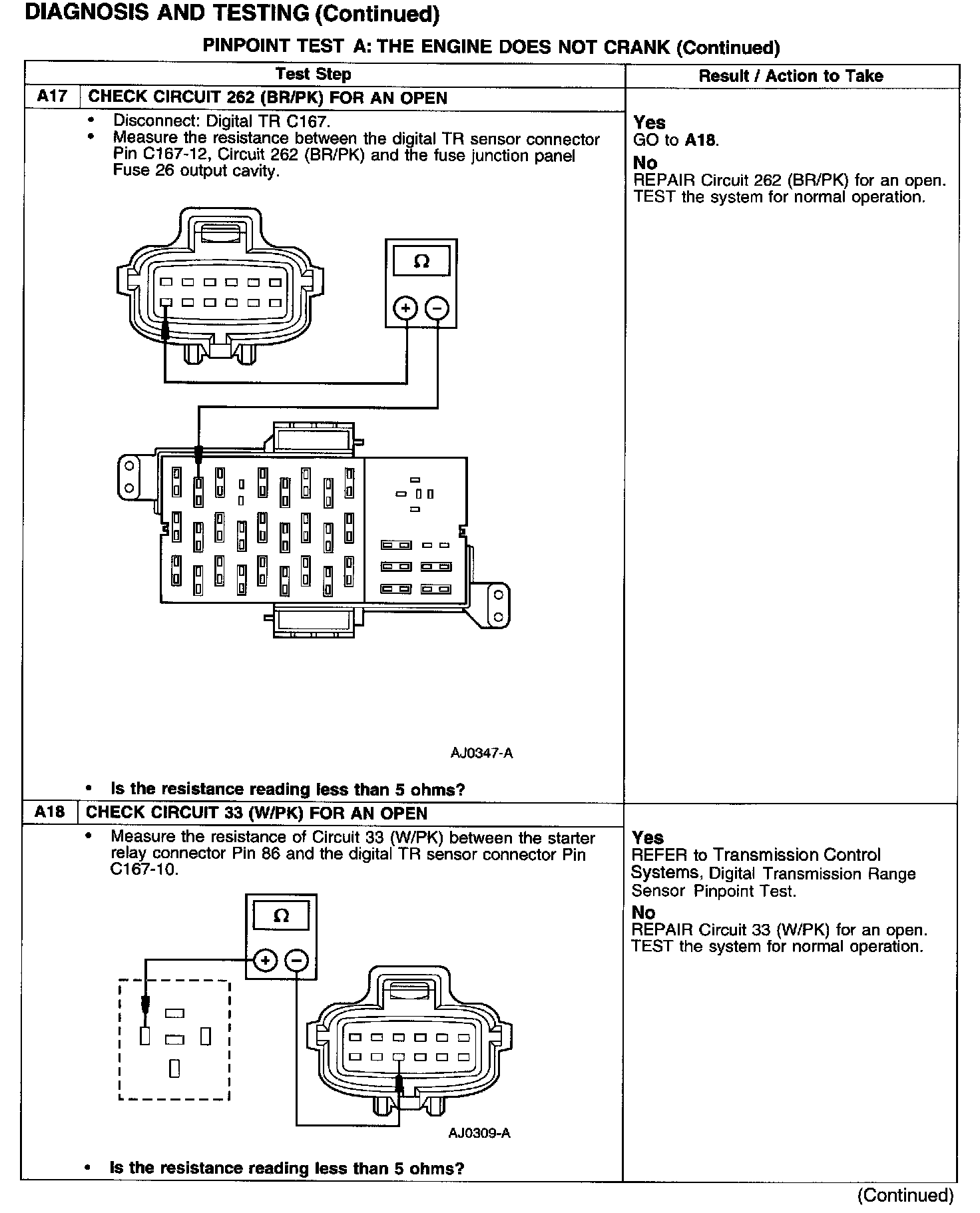

Test A17-A18:

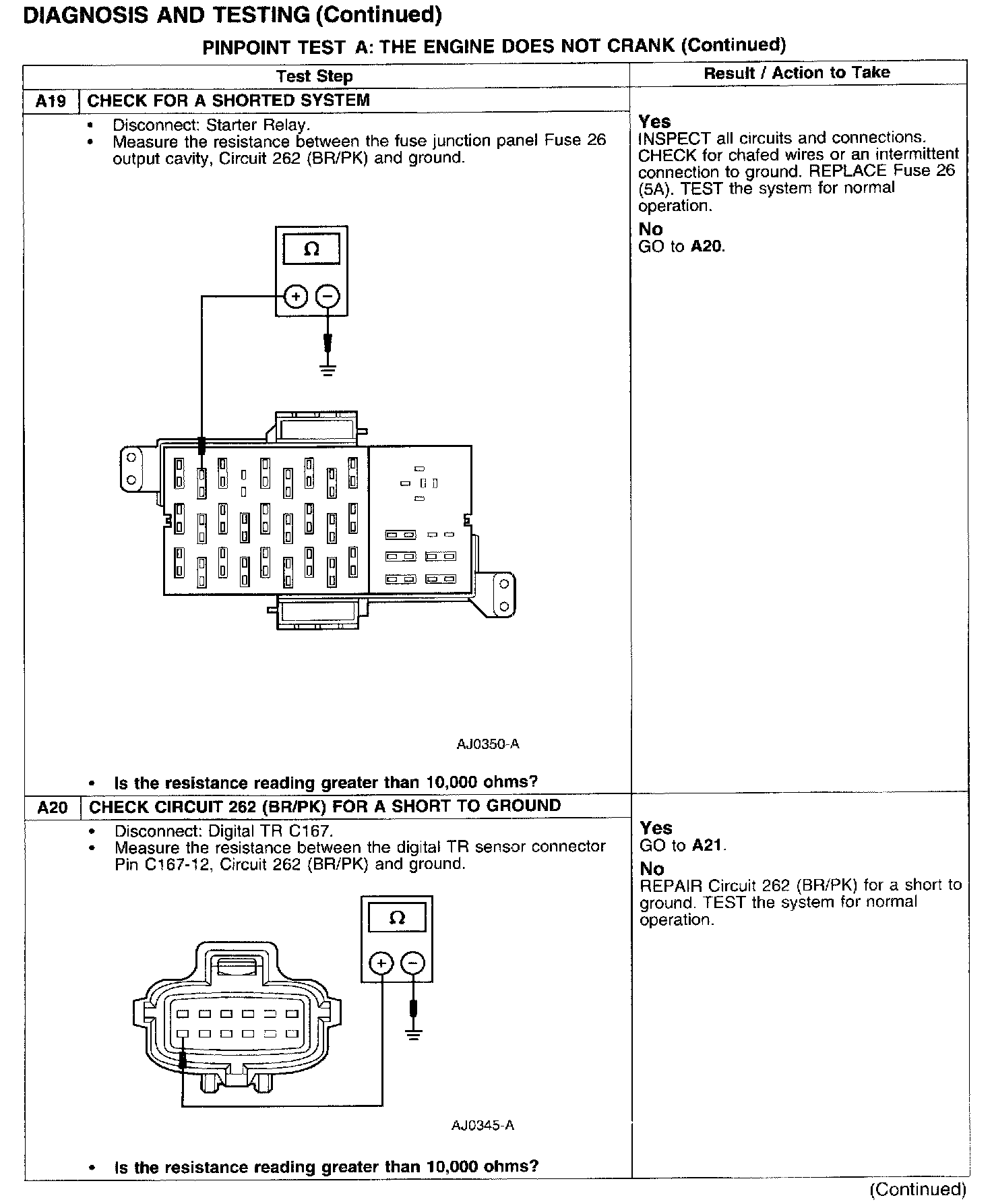

Test A19-A20:

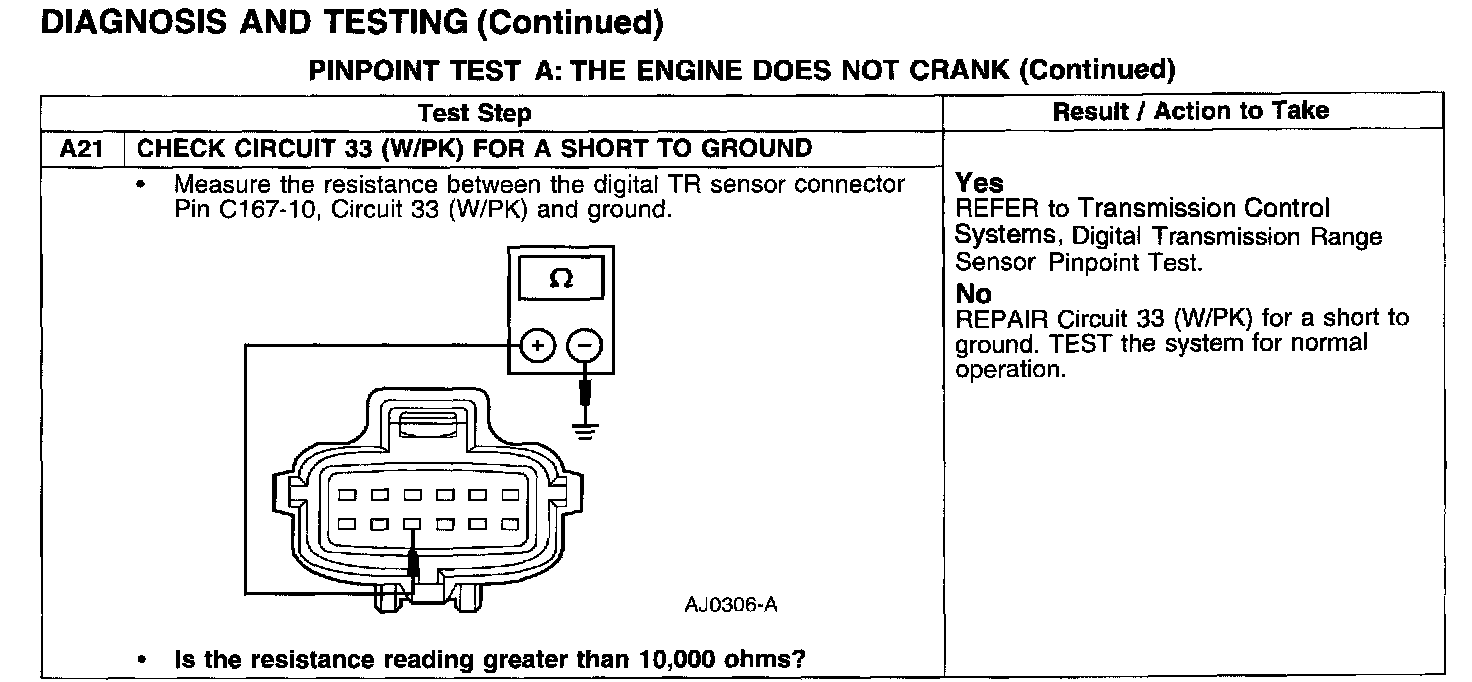

Test A21:
