Front Door Window Regulator: Service and Repair

FRONT DOOR WINDOW REGULATOR

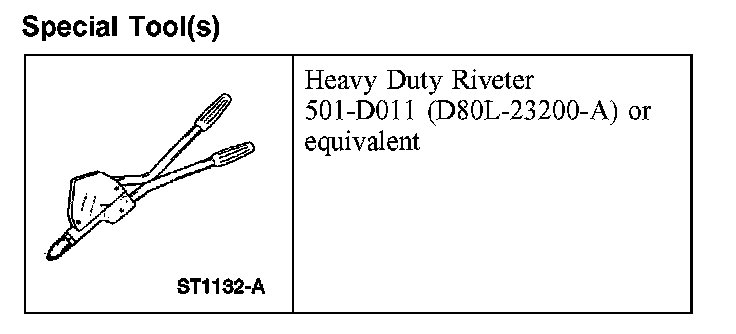

Heavy Duty Riveter:

SPECIAL TOOL(S)

REMOVAL
1. Remove the front door window glass.

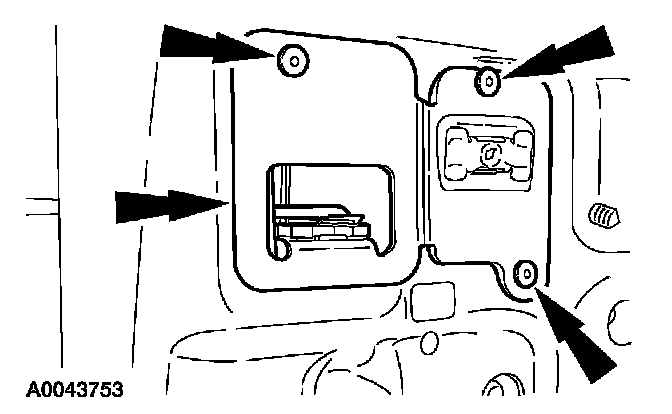

2. Remove the rivets and the front door latch remote control.
- Disconnect the actuator rod.

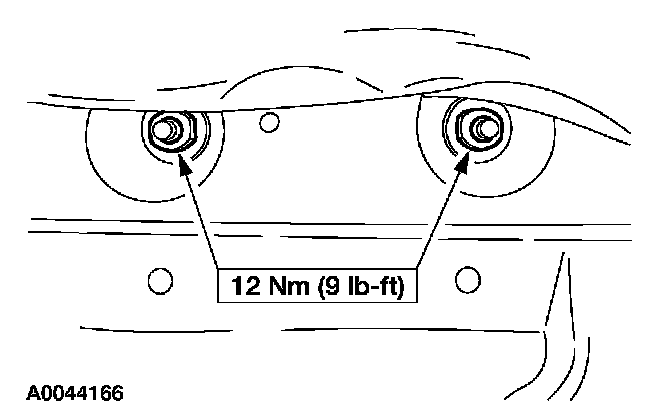

3. Remove the window regulator nuts.

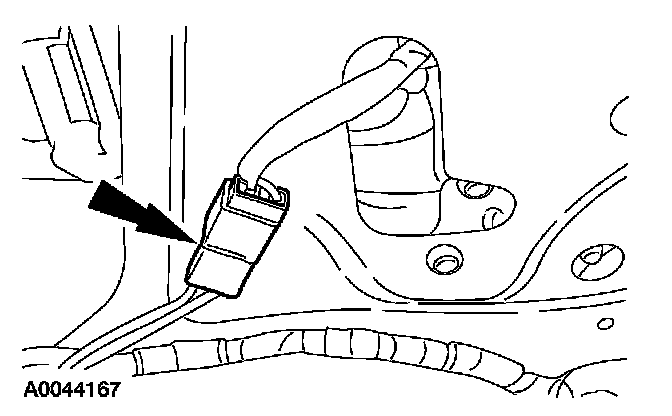

4. Disconnect the electrical connector.

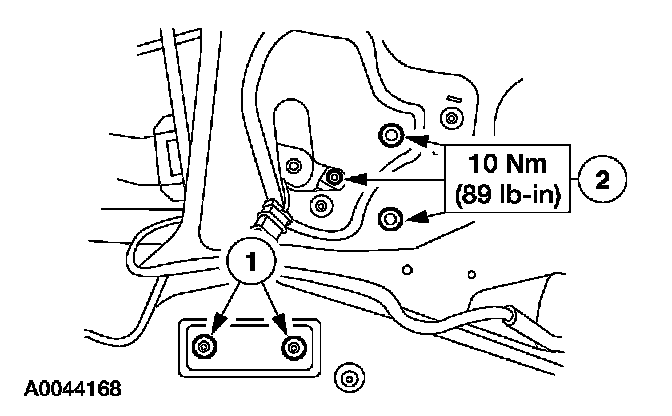

5. Remove the front door window regulator and motor.
1 Remove the rivets.
2 Remove the screws.

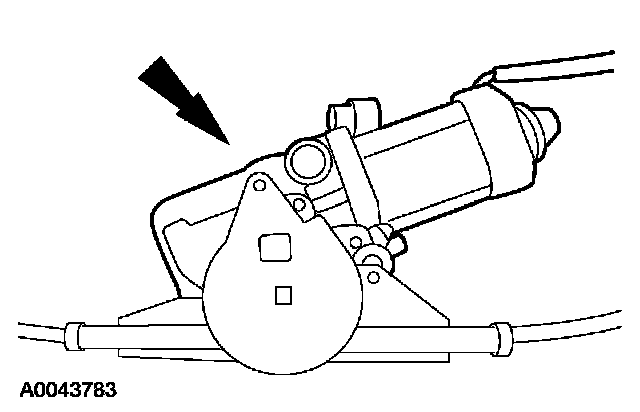

6. Remove the front door window regulator motor.
- Partially separate the window motor from the regulator, then press the release tab on the regulator and remove the front door window regulator motor.

INSTALLATION
1. To install, reverse the removal procedure.
- Using the special tool, install the rivets.
