Plenum Chamber

PLENUM CHAMBER

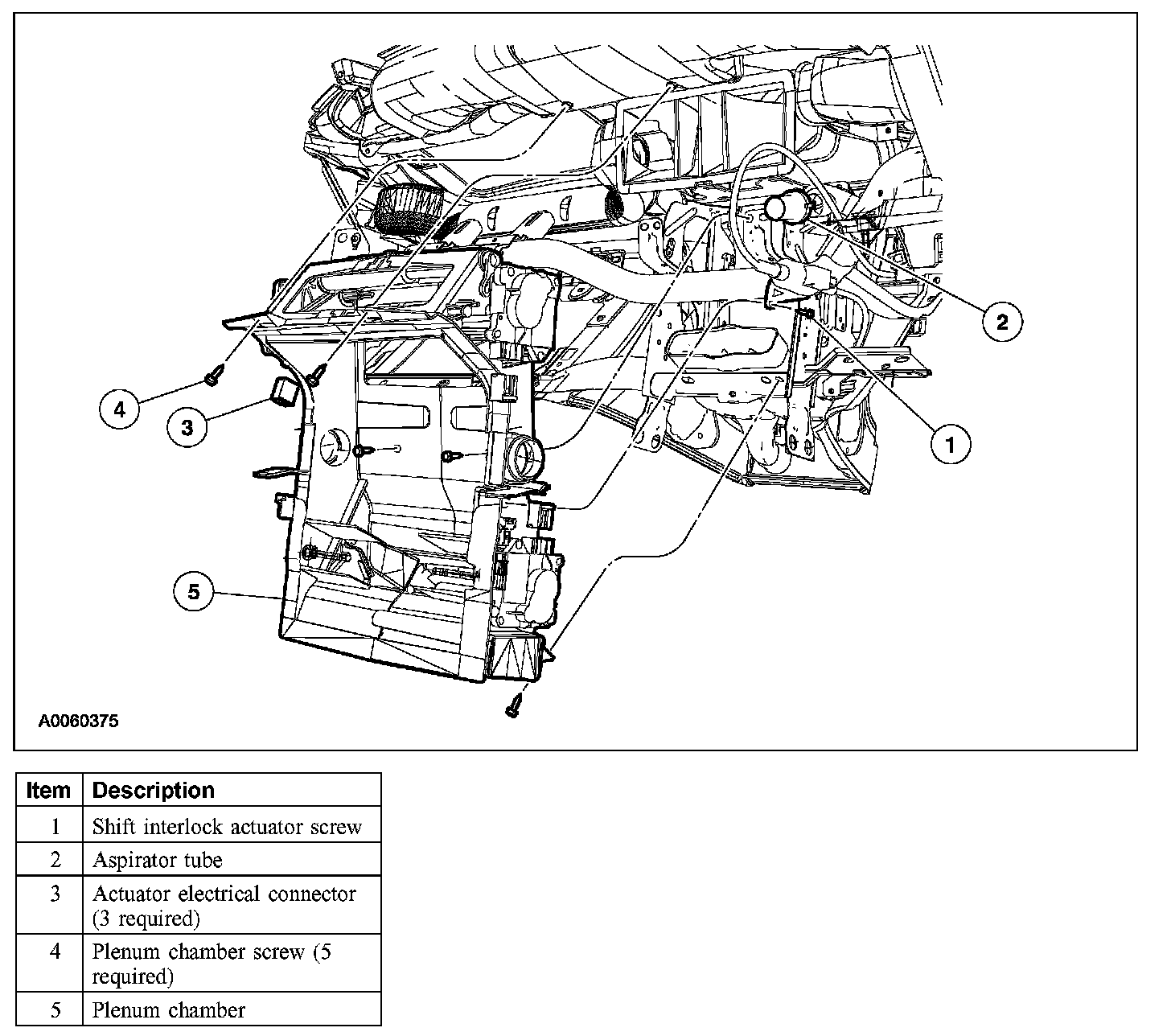

Removal and Installation
1. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, Instrument Panel, Instrument Panel

2. Remove the shift interlock actuator screw.
3. Disconnect the 3 mode door actuator electrical connectors.
4. Remove the 5 plenum chamber screws.
5. Remove the plenum chamber.
6. To install, reverse the removal procedure.
