Cruise Control Switch: Service and Repair

SPEED CONTROL SWITCH

Removal and Installation
1. Remove the driver air bag module.

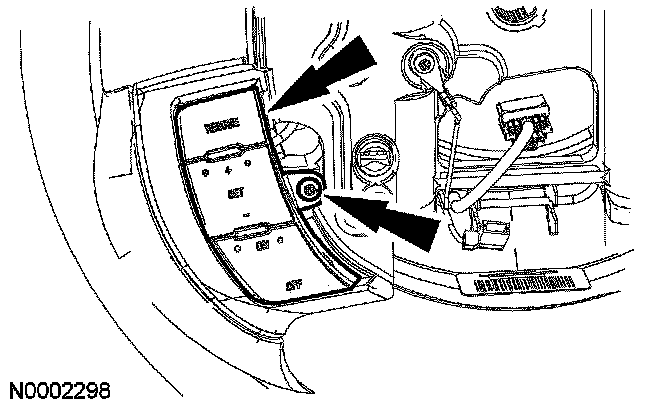

2. Remove the screw and the speed control switch.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
