Test D: Steering System Drift/Pull/Wander


Pinpoint Test D: Steering System Drift/Pull/Wander
This pinpoint test is intended to diagnose the following:
^ Steering Gear
^ Intermediate shaft
^ Steering gear mounts
^ Suspension components

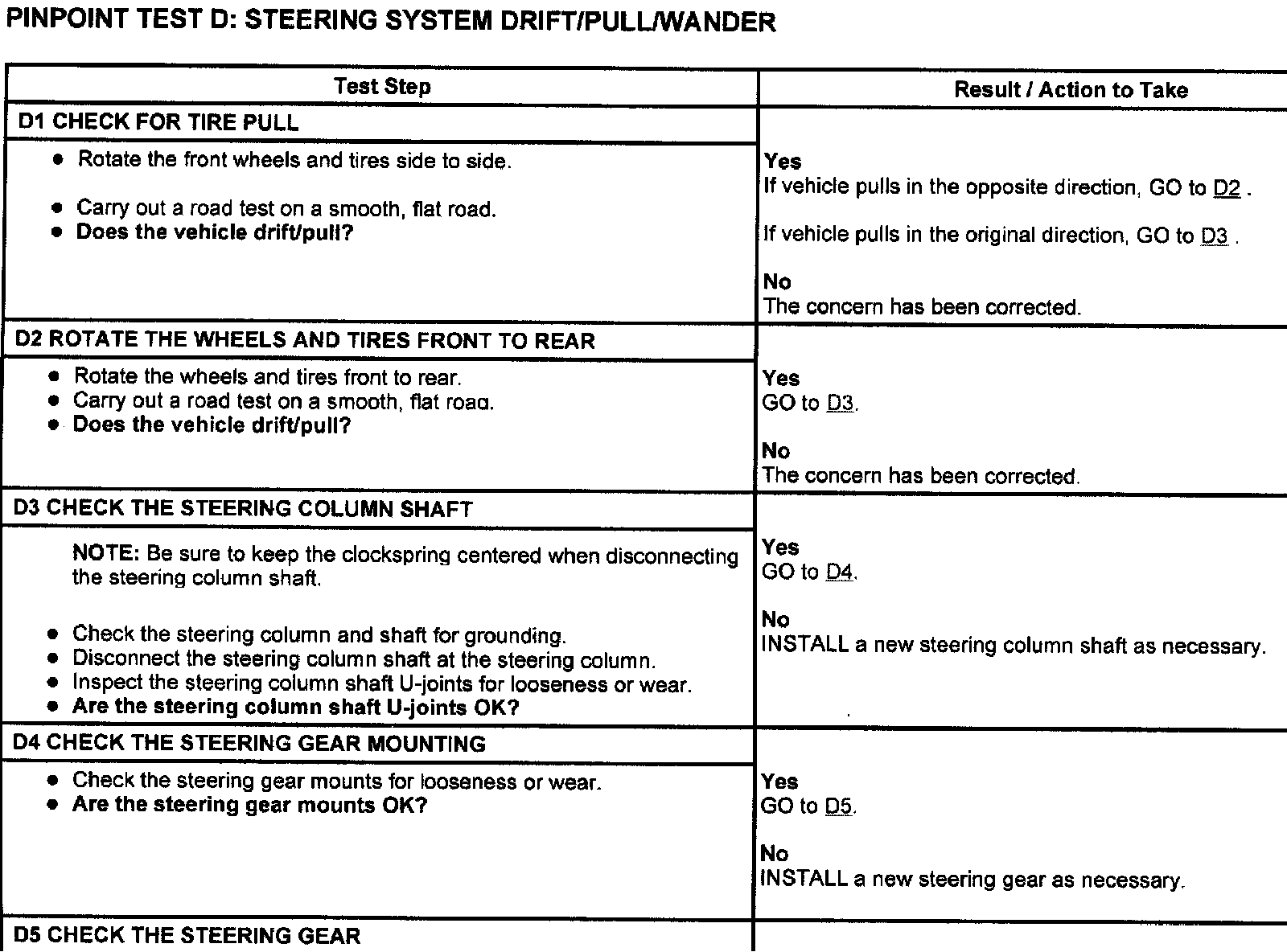

D1-D5

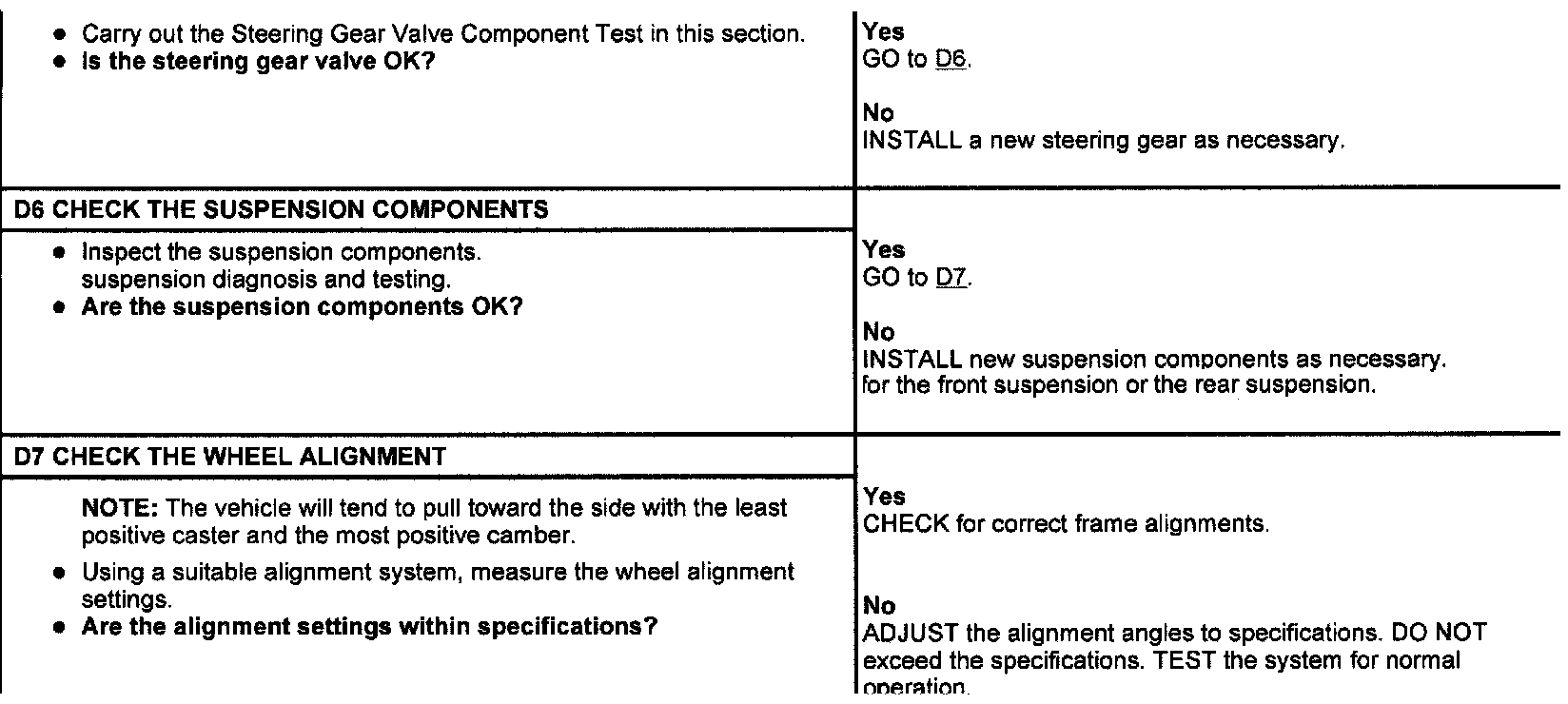

D5-D7
