Transmission Mount: Service and Repair

4R70E/4R75E

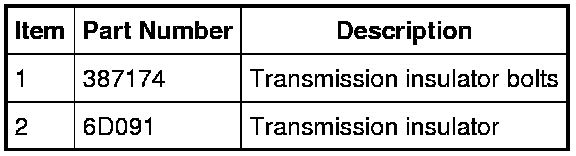

Transmission Insulator and Retainer









Removal

1. Remove the transmission support crossmember. For additional information, refer to Transmission Support Crossmember Service and Repair.

2. Remove the transmission support insulator.





3. To install, reverse the removal procedure.
- Tighten transmission insulator bolts to 90 Nm (66 lb-ft).
