Register - LH

Register - LH, MKZ









Removal and Installation

1. Remove the instrument cluster finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

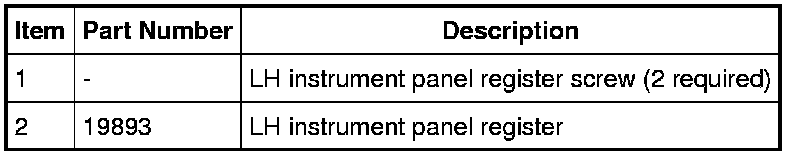

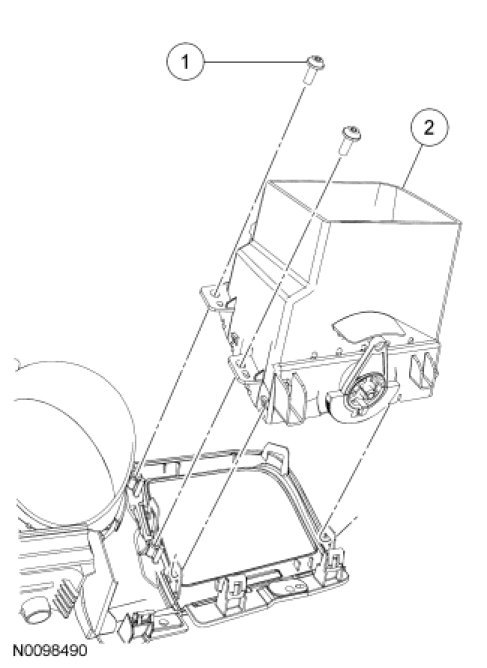

2. Remove the 2 LH instrument panel register screws.

3. Remove the LH register.

4. To install, reverse the removal procedure.
