Mazda Truck
>>
1993
>>
MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
Part 1 of 3
Part 1 of 3

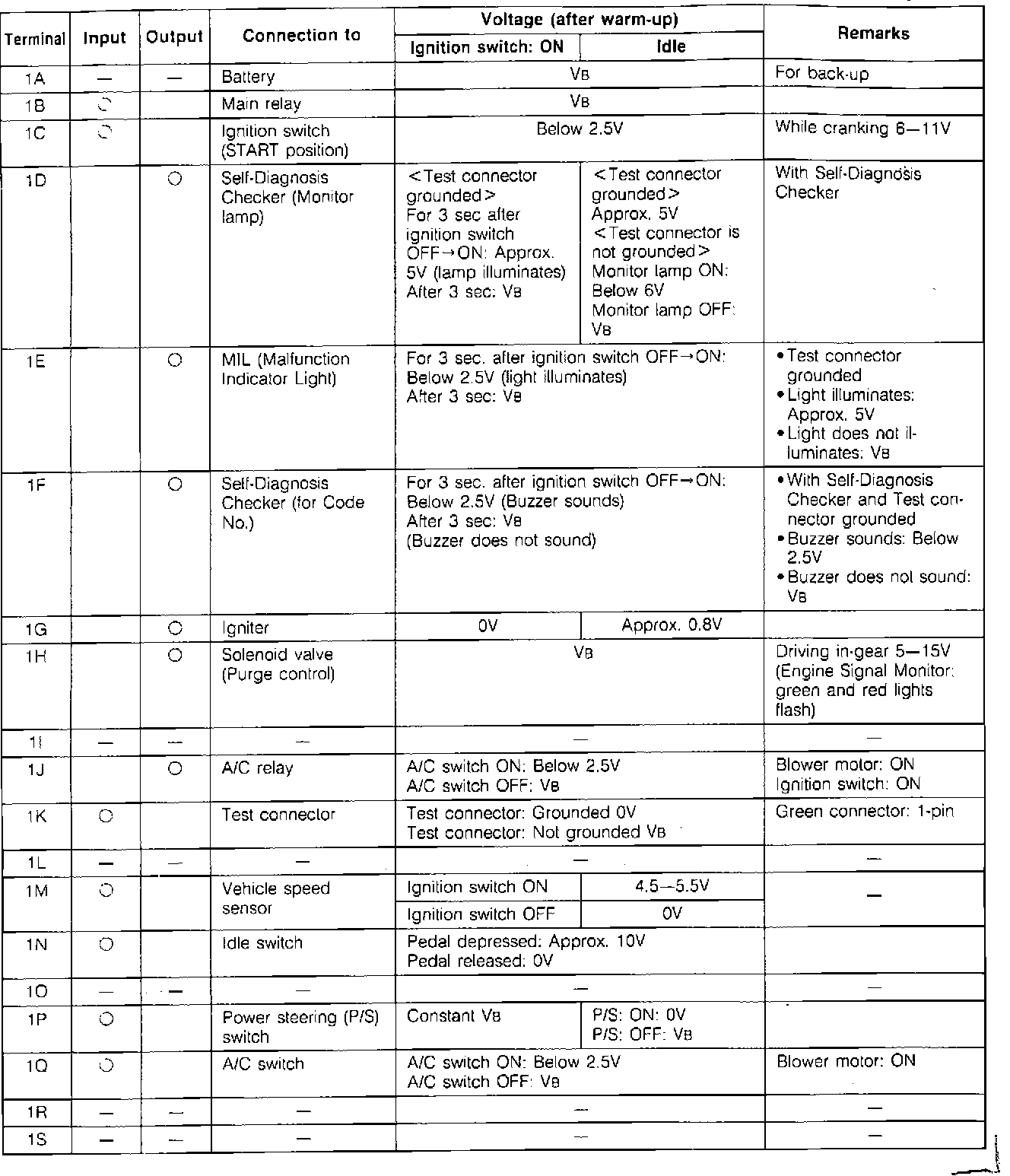

ECU Pin Voltage Chart:
