Torque Specifications

Timing Components:

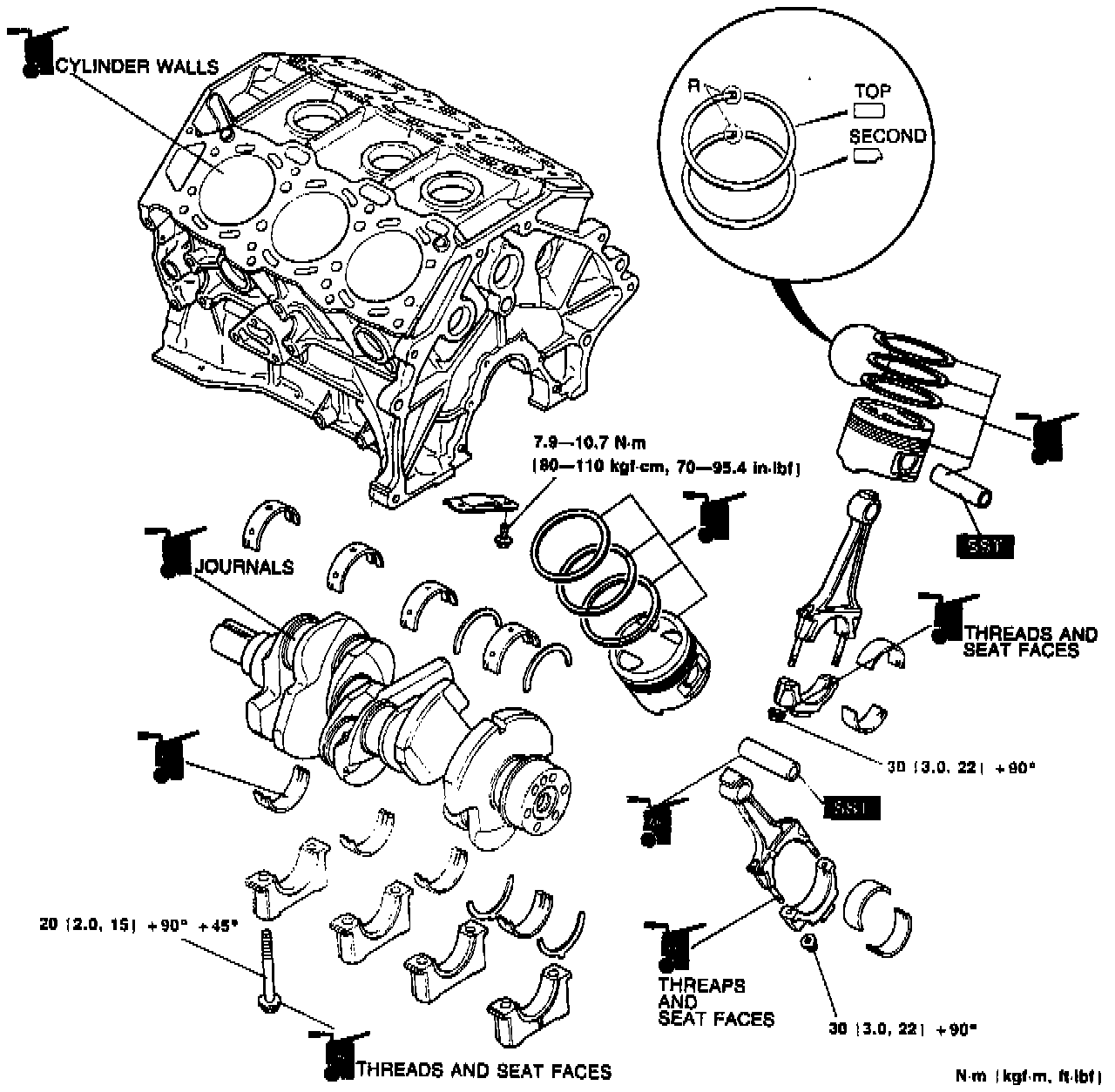

Internal Parts:






Main Bolt Torque/Sequence:






External Parts:
