Home >> Mazda Truck >> 1993 >> Navajo 2WD V6-4.0L OHV >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DL - Pressure Feedback EGR/Delta PFE Sensor >> Sensor Data

Sensor Data

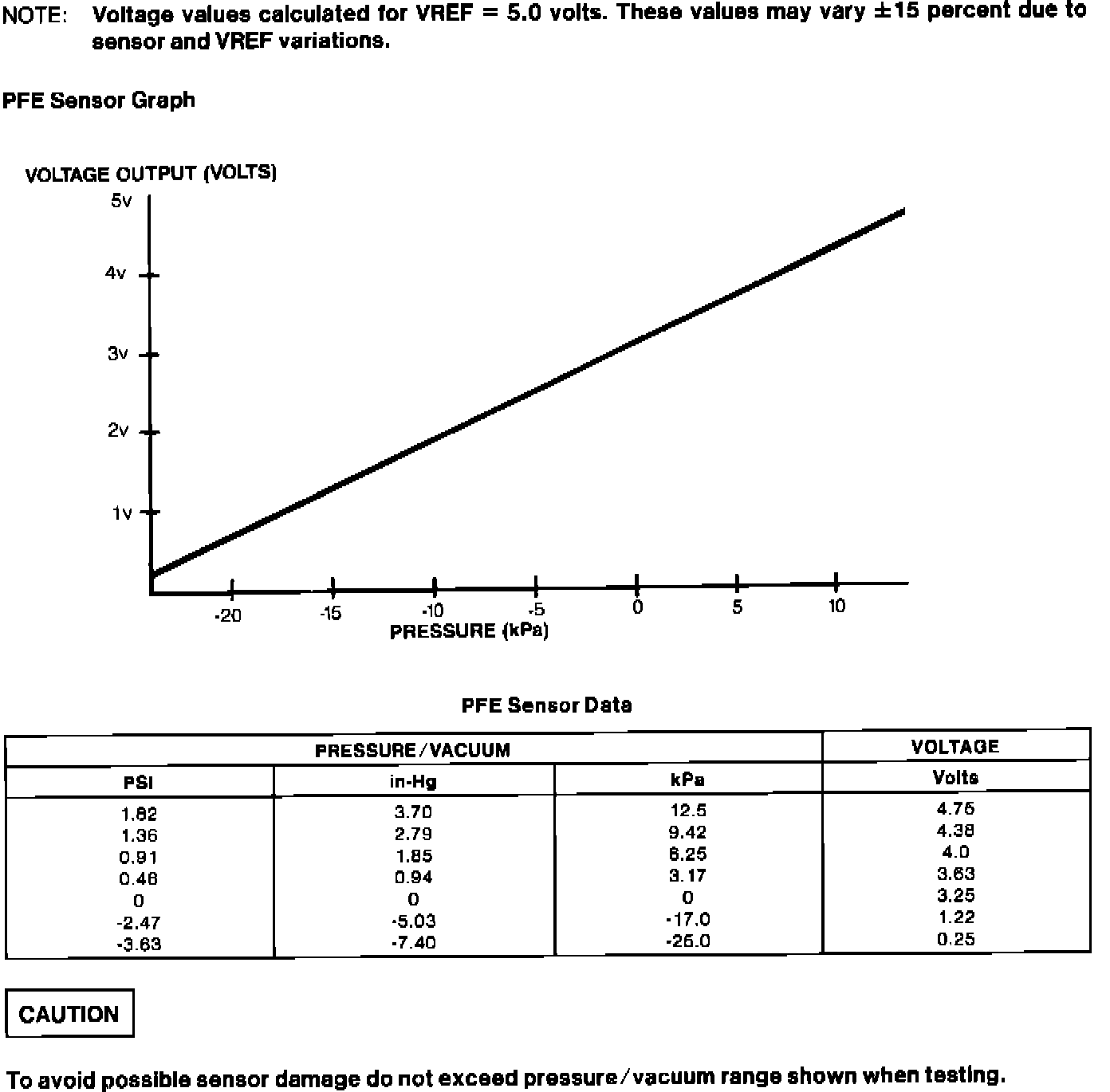

PFE Sensor/EGR Vacuum Regulator Solenoid:

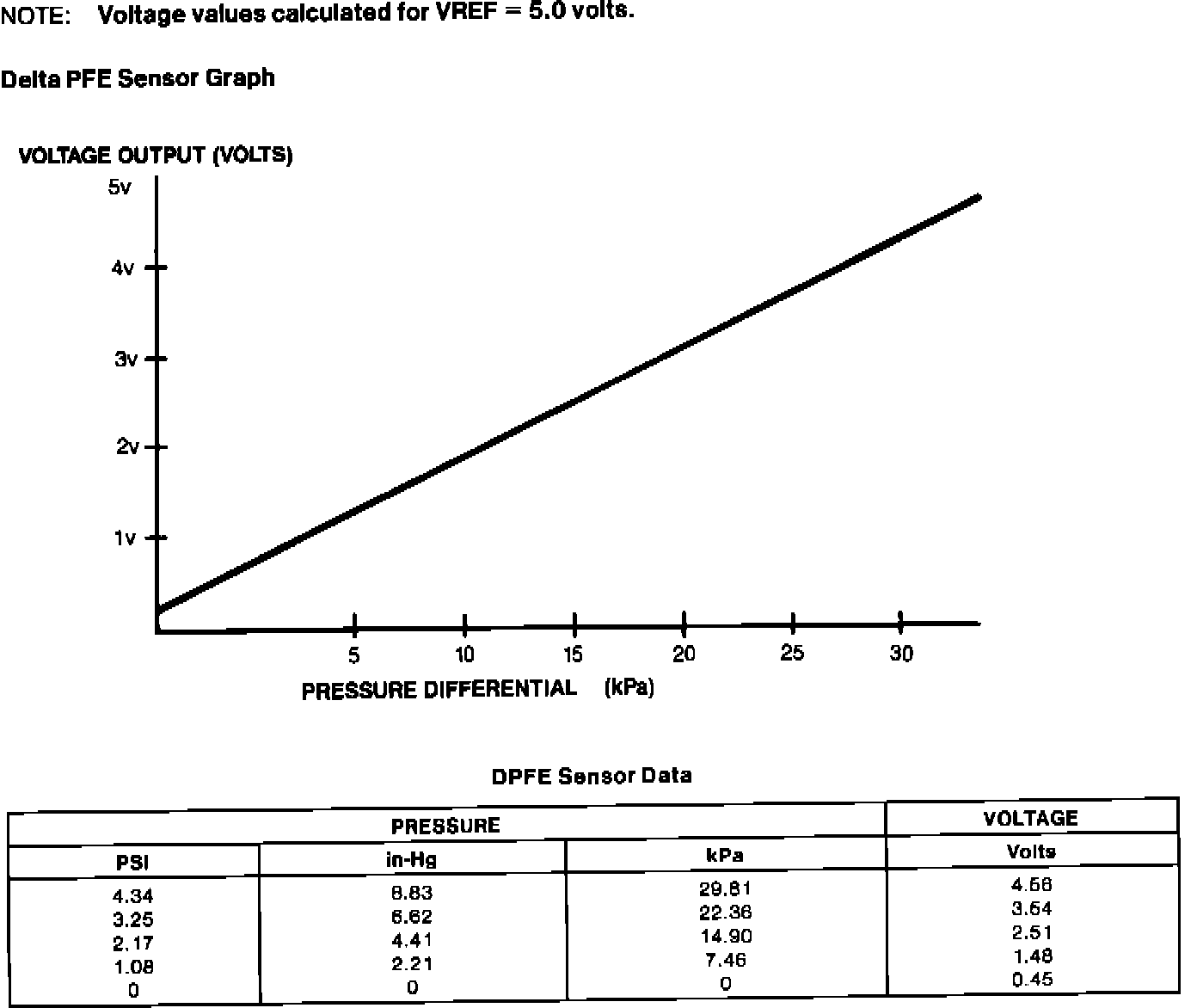

Delta PFE Sensor/EGR Vacuum Regulator Solenoid:
