Home
>>
Mazda Truck
>>
2003
>>
B2300 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Automatic Transmission Cooling Components View
Automatic Transmission Cooling Components View

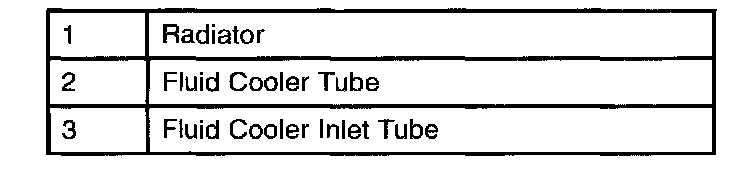

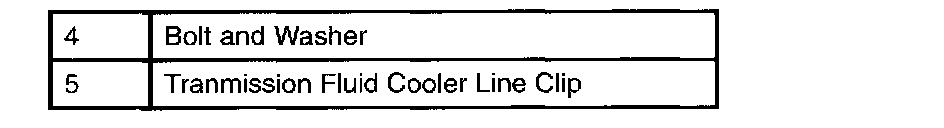

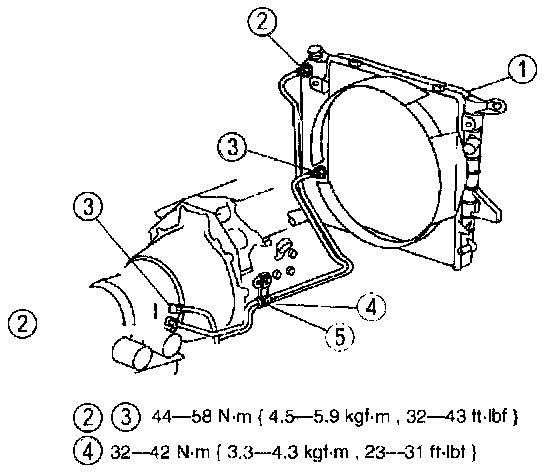

AUTOMATIC TRANSMISSION COOLING COMPONENTS VIEW
2.3 L and 3.0L
