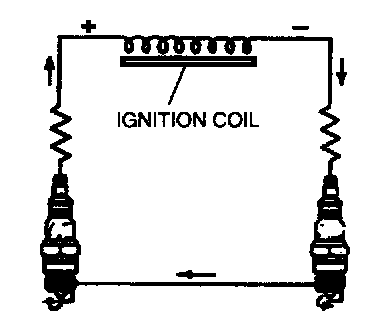

Test 13: Ignition Scope Pinpoint Test

CAUTION: Fouled plugs or a damaged ignition may cause high catalyst temperatures. Check components next to the catalyst and muffler for heat damage.

Step 1 - 2:

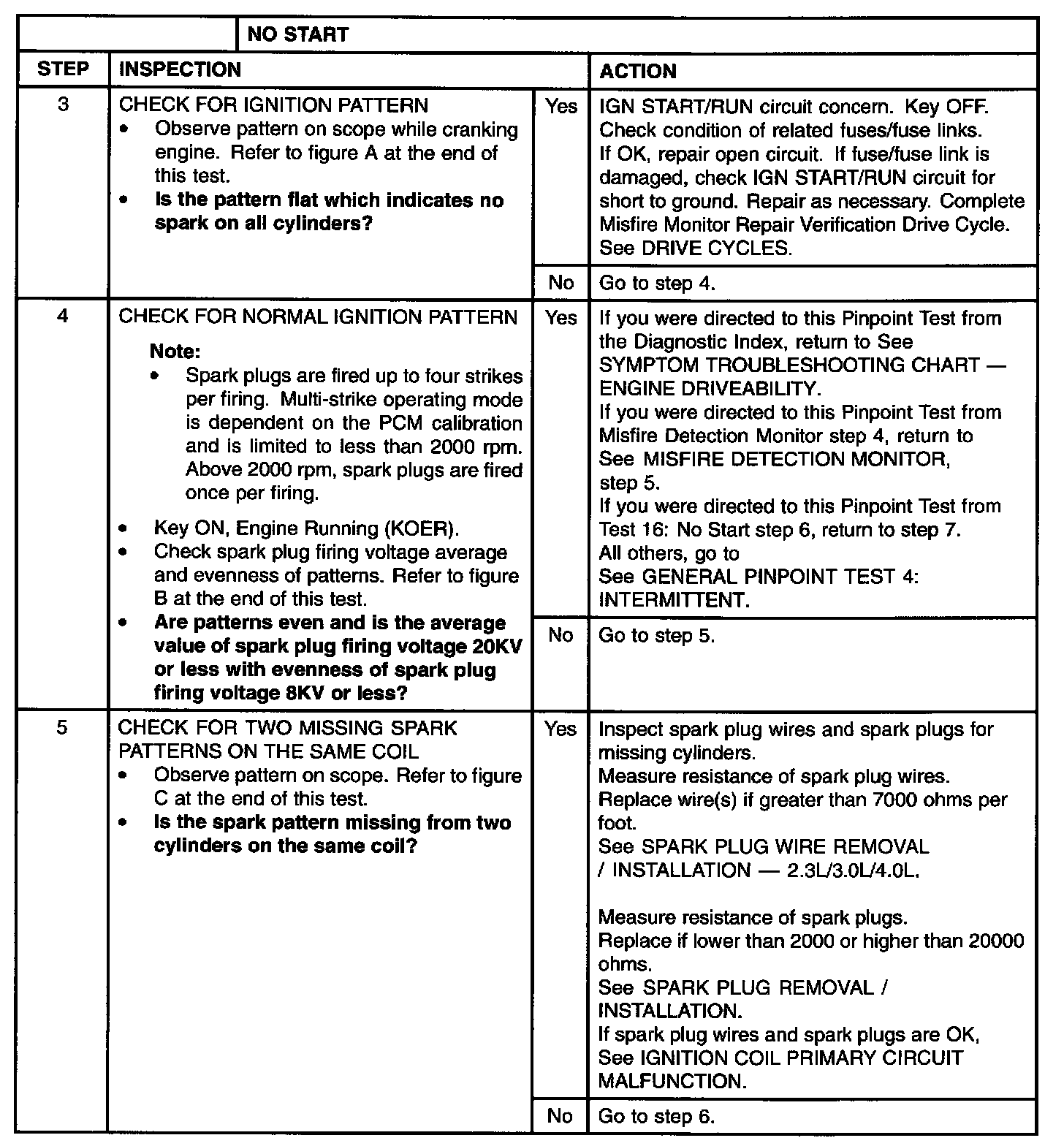

Step 3 - 5:

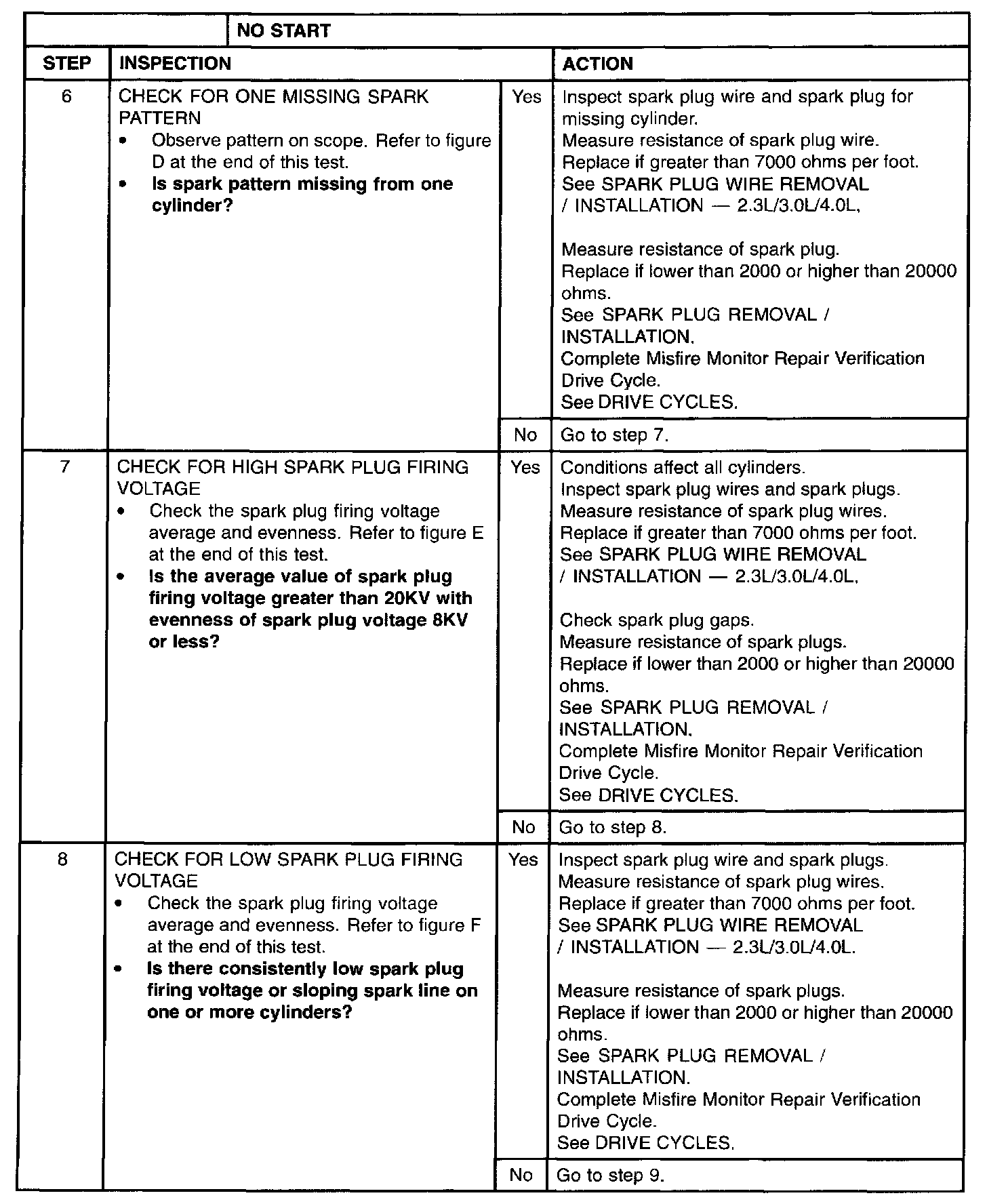

Step 6 - 8:

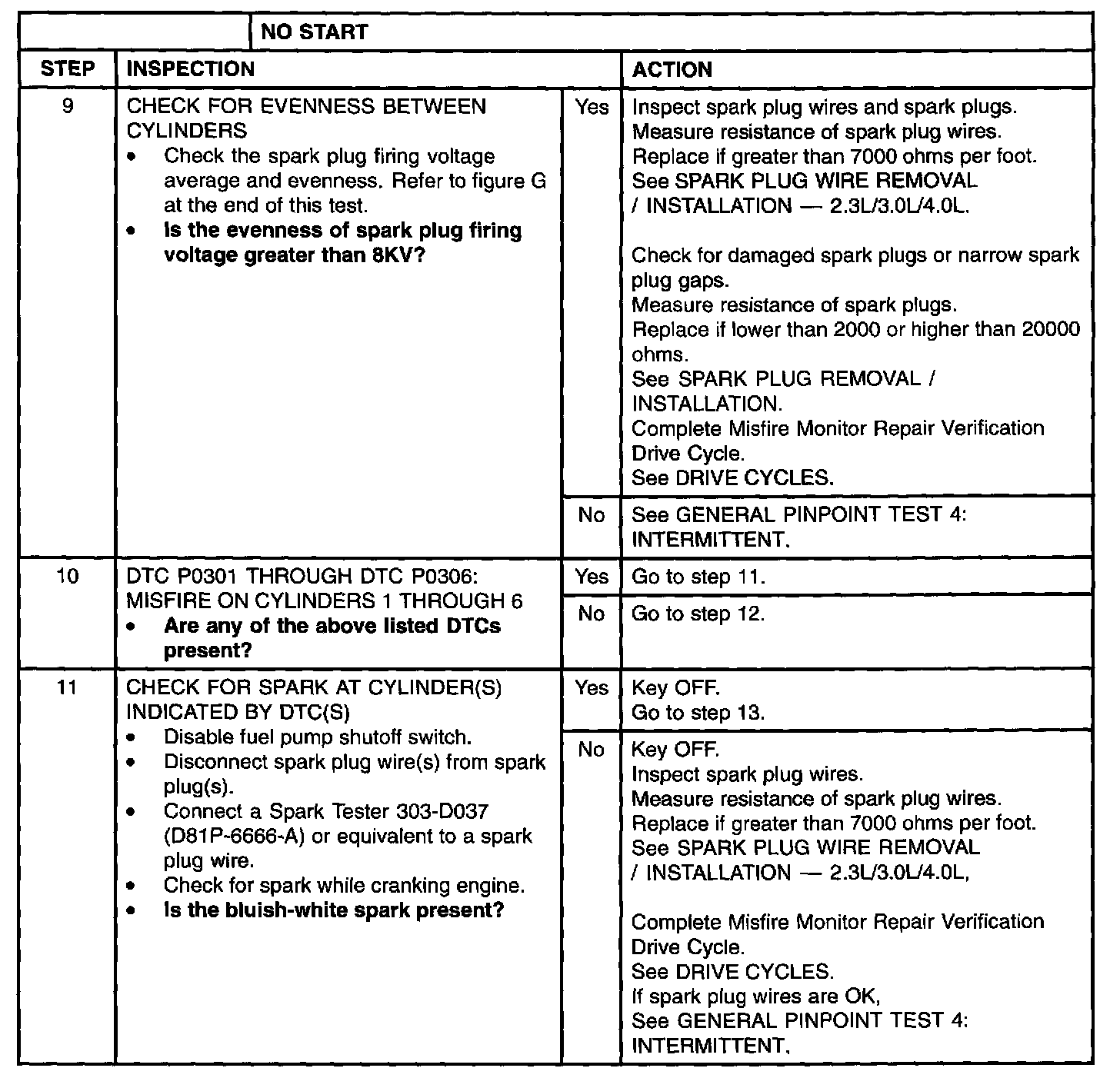

Step 9 - 11:

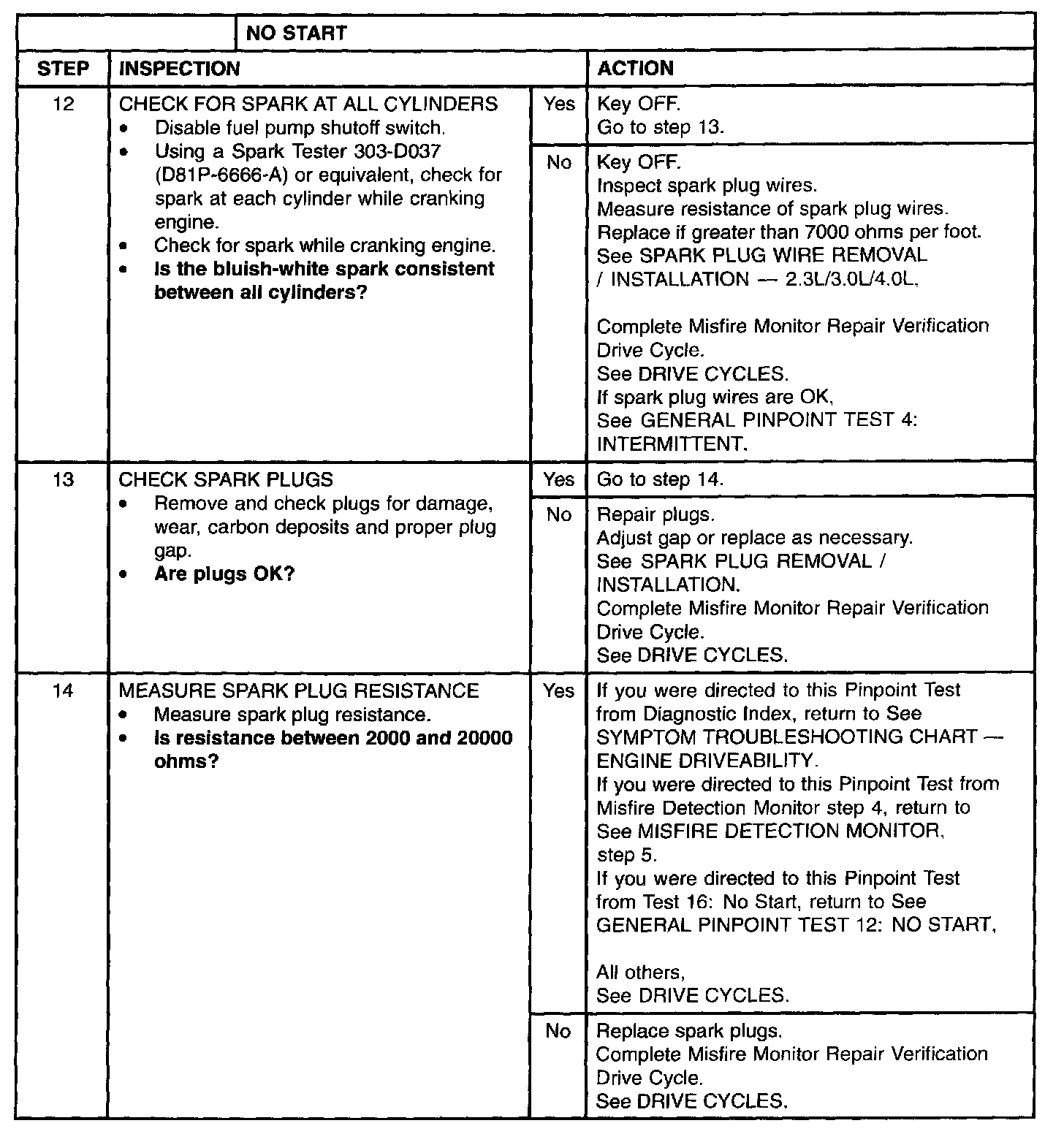

Step 12 - 14:

GENERAL PINPOINT TEST 13: IGNITION SCOPE PINPOINT TEST
