PID/Data Monitor Item Table

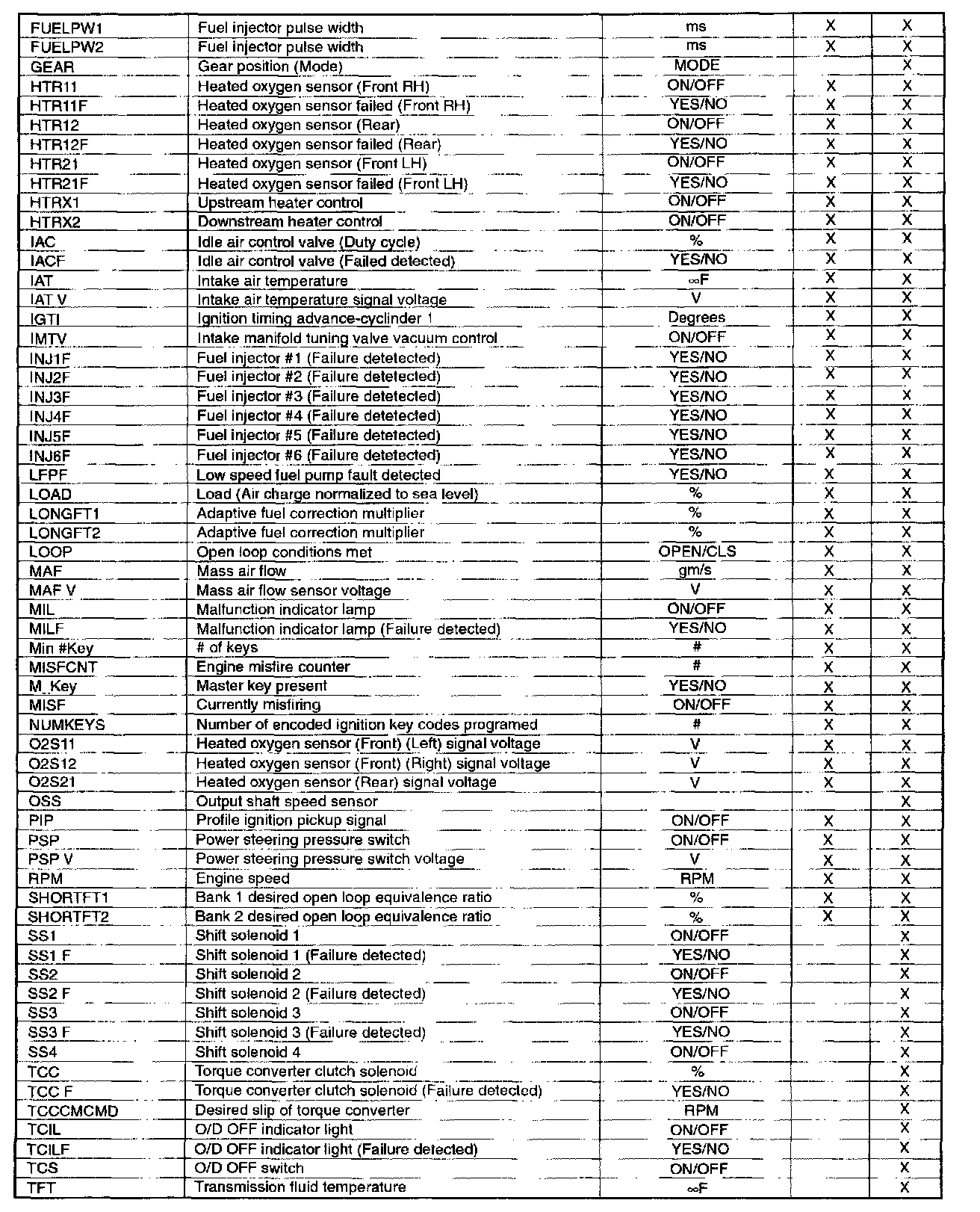

PID/Data Monitor Item Table 1:

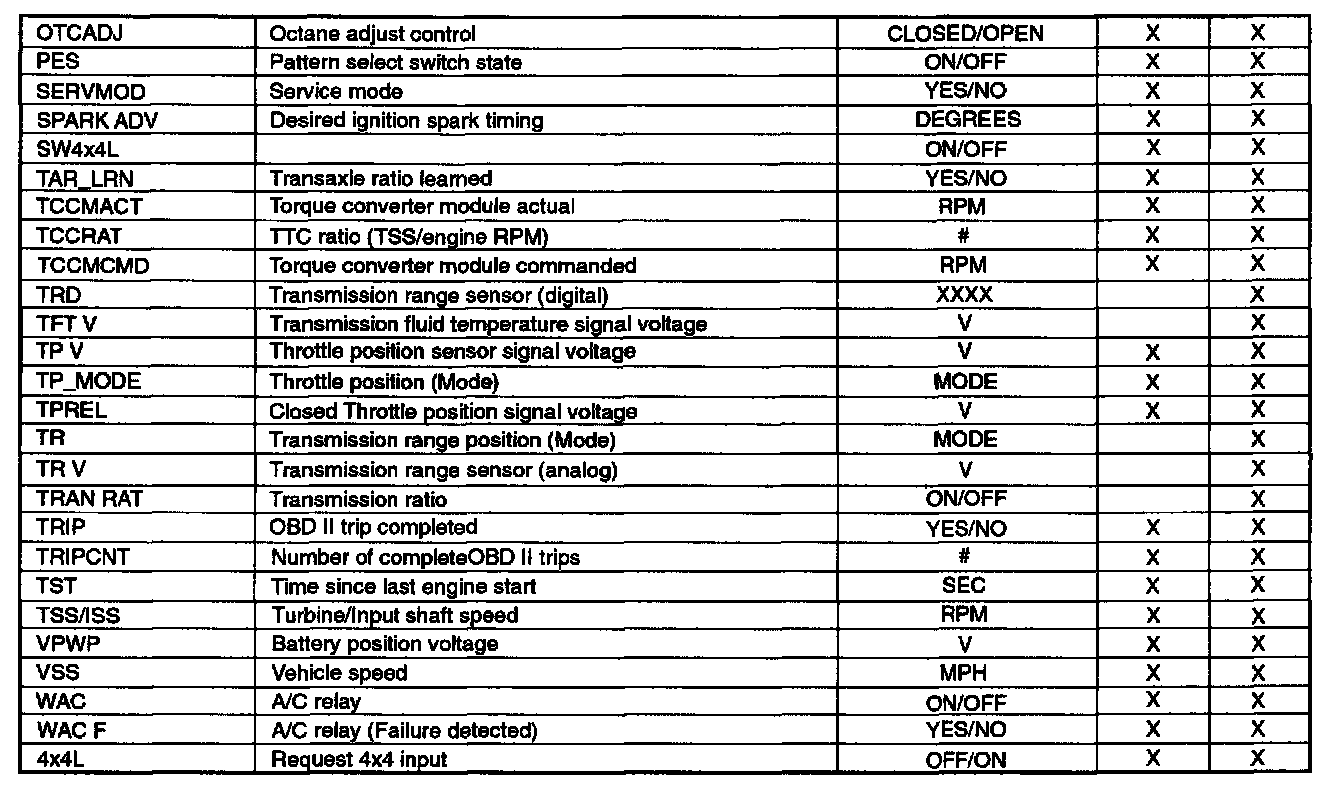

PID/Data Monitor Item Table 2:

PID/Data Monitor Item Table 3:

PID/DATA MONITOR ITEM TABLE

NOTE: The shown PIDs may display on the WDS or equivalent tester, but they are not used for inspection, because the devices are not applied for in this model.
