General Engine Specifications

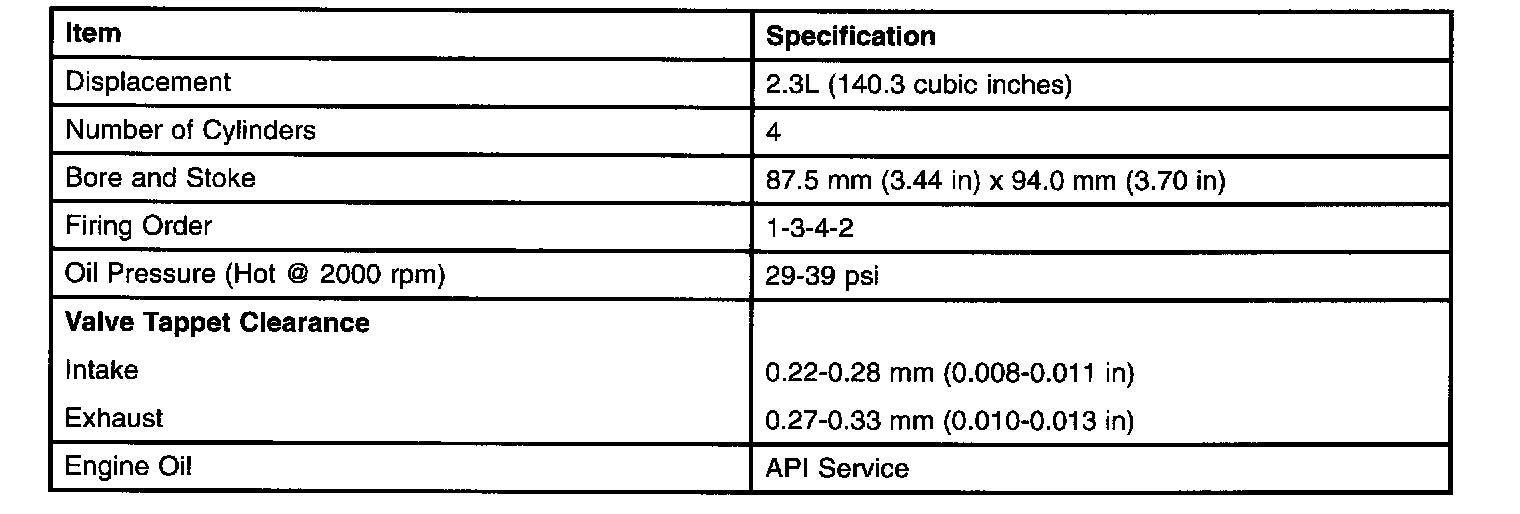

ENGINE SPECIFICATIONS-2.3L





FUEL SYSTEM SPECIFICATIONS





CHARGING SYSTEM SPECIFICATIONS





ENGINE IGNITION SPECIFICATIONS-2.3L

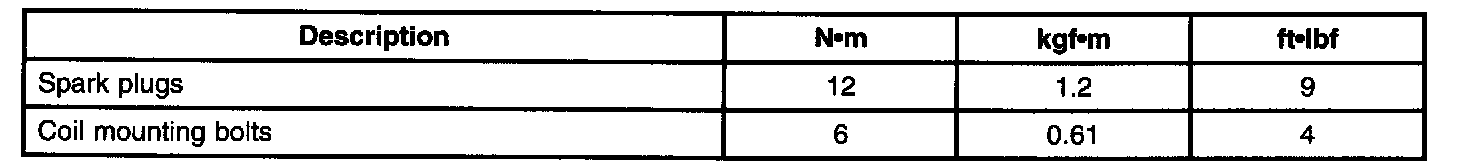

IGNITION TORQUE SPECIFICATIONS





STARTING SYSTEM SPECIFICATIONS

Tightening Specifications

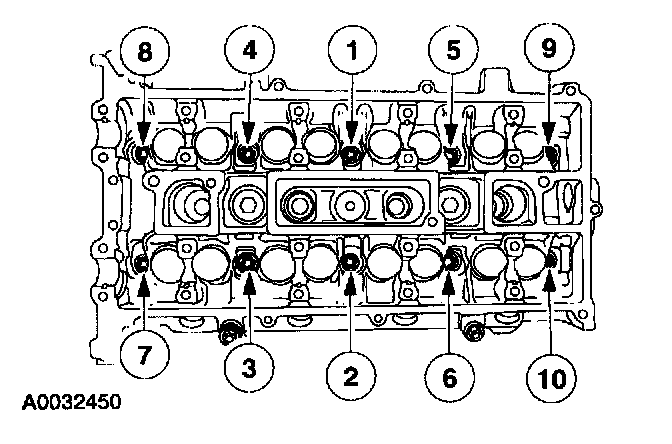

Cylinder head
Note: Torque to Yeild Head Bolts, must replace with new bolts.
Stage 1 5 Nm (0.5 kgf-cm, 44 inch lbs.)
Stage 2 15 Nm (1.5 kgf-cm, 11 ft. lbs.)
Stage 3 45 Nm (4.5 kgf-cm, 33 ft. lbs.)
Stage 4 additional 90 degrees (1/4 turn)
Stage 5 additional 90 degrees (1/4 turn)
Intake manifold bolts 10 Nm (1.8 kgf-m, 13 ft. lbs.)

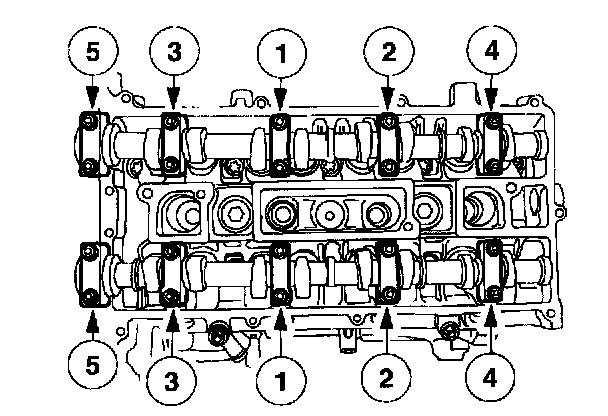

Camshafts and bearing caps
Stage 1; Tighten the camshaft bearing caps one turn at a time until tight.
Stage 2 7 Nm (0.7 kgf-cm, 62 inch lbs.).
Stage 3 Tighten the bolts to 16 Nm (1.6 kgf-cm, 12 ft. lbs.)
Vibration damper bolt.
Stage 1 40 Nm (4.0 kgf-cm, 30 ft. lbs.)
Stage 2 additional 90 degrees (1/4 turn)

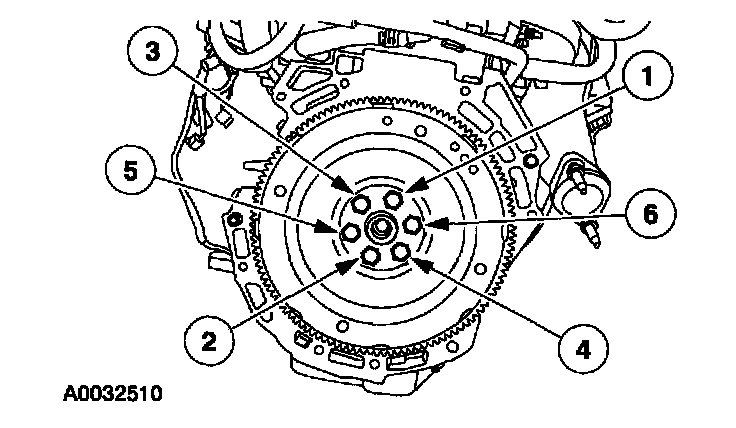

Flywheel or flexplate.
Stage 1 50 Nm (37 ft. lbs.).
Stage 2 80 Nm (59 ft. lbs.).
Stage 3 112 Nm (83 ft. lbs.).

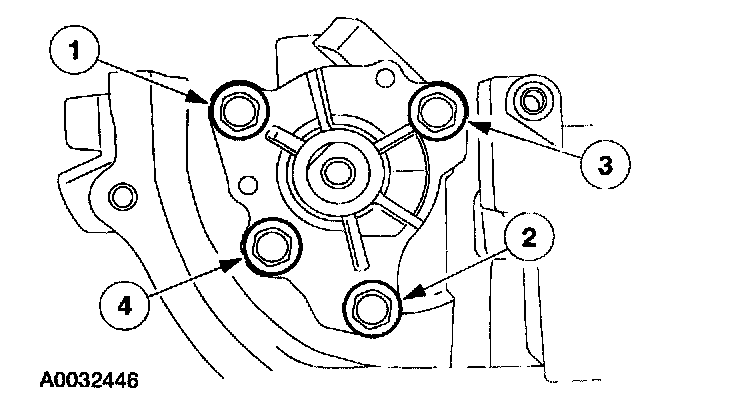

New gasket and the oil pump assembly
Stage 1 10 Nm (1.0 kgf-cm, 80 inch lbs.)
Stage 2 23 Nm (2.3 kgf-cm, 17 ft. lbs.)
Exhaust manifold bolts 54 Nm (5.51 kgf.m, 40 ft. lbs.)
Water pump bolts 10 Nm (1.0 kgf.m, 89 inch lbs.)
