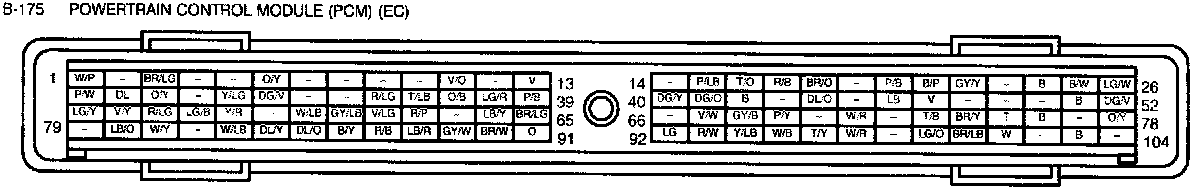

Engine Control Module

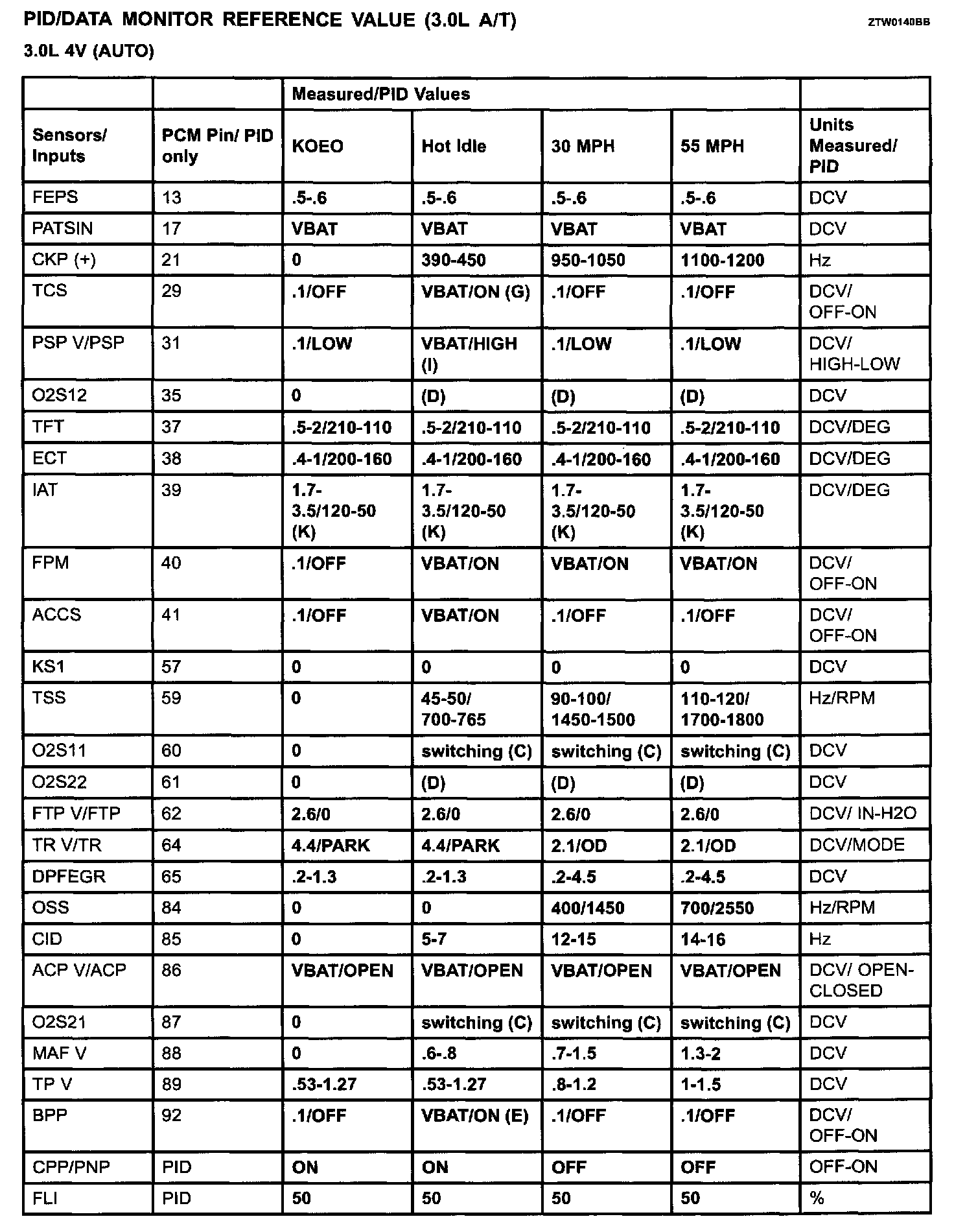

PID/Data Monitor Reference Value (3.0L A/T):

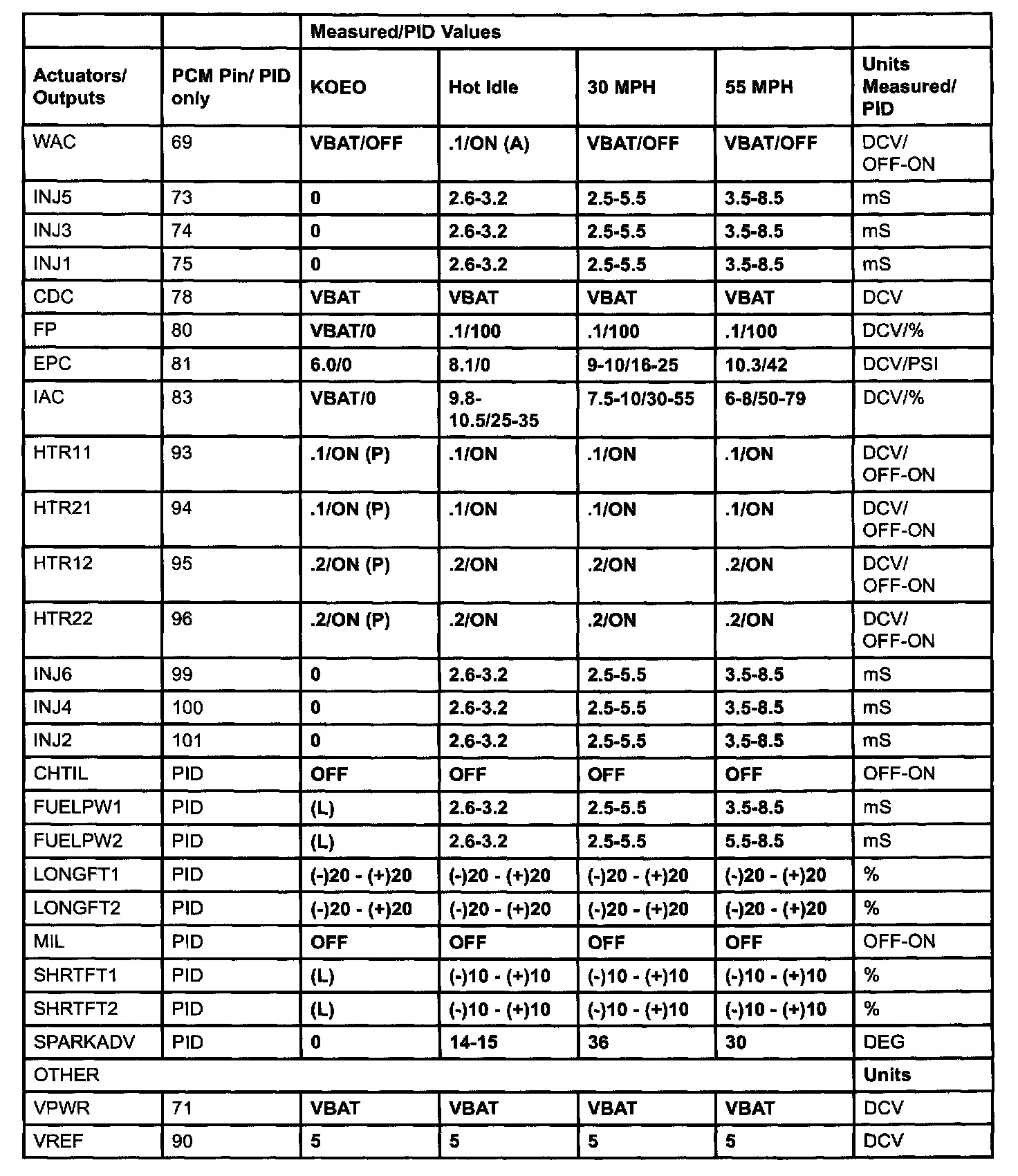

PID/Data Monitor Reference Value (3.0L A/T):

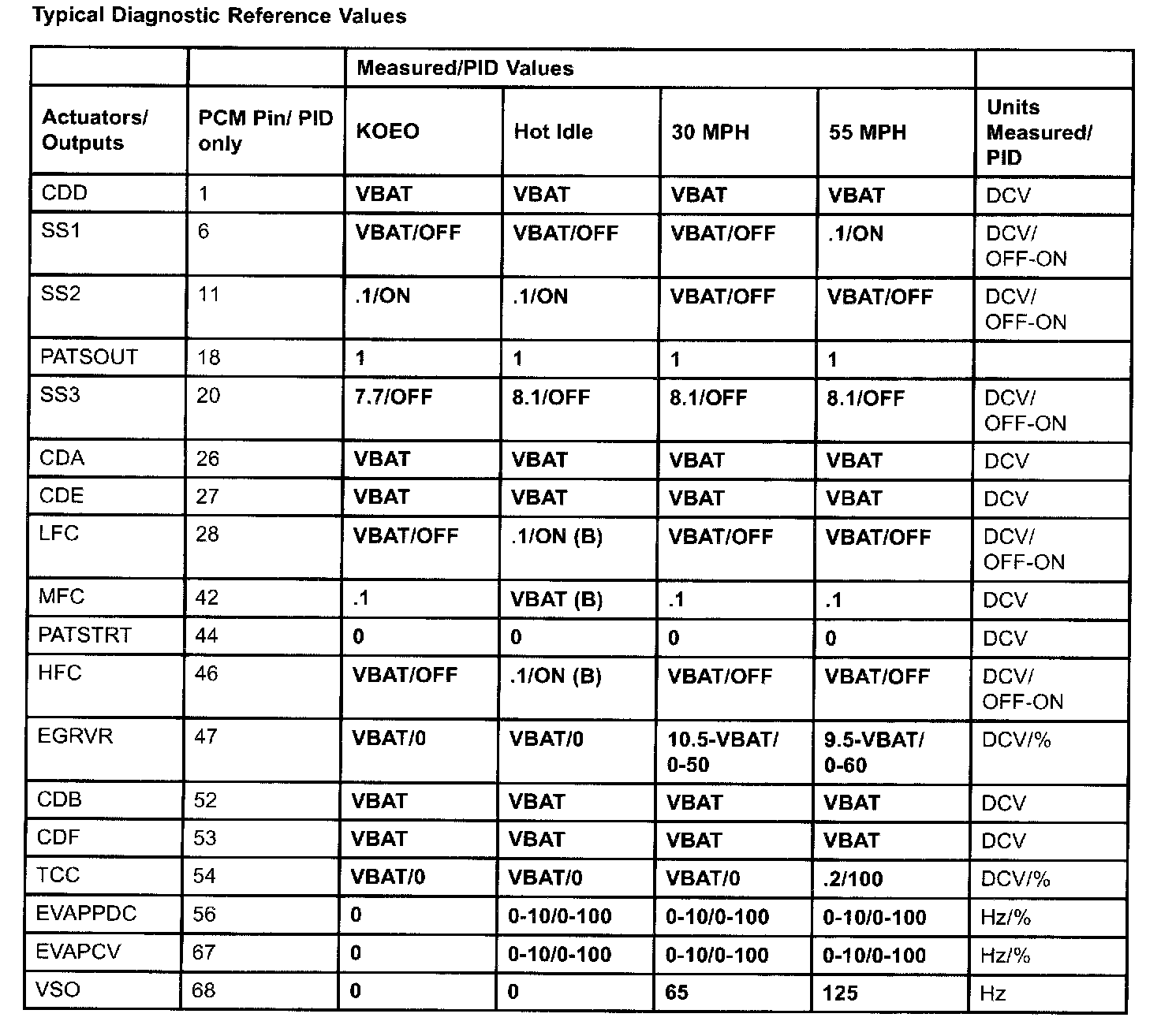

Typical Diagnostic Reference Values:






Typical Diagnostic Reference Values:

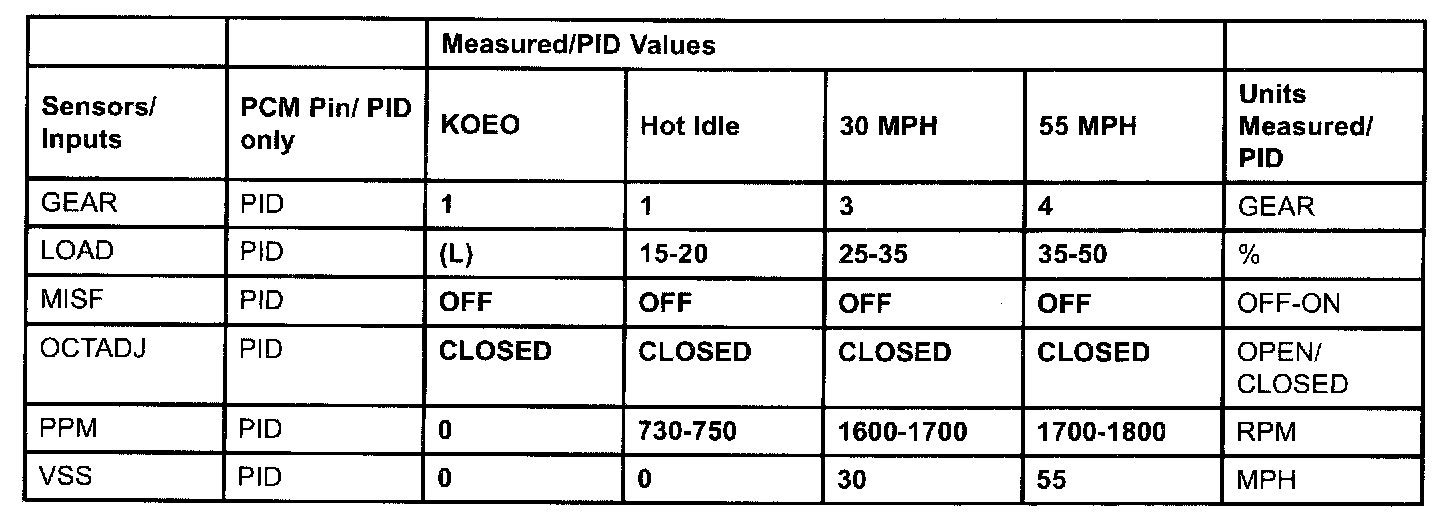

Generic OBD II PID Values:
