Throttle Position Sensor: Service and Repair

THROTTLE POSITION (TP) SENSOR

Removal and Installation

NOTE: Air cleaner outlet tube is removed for clarity.

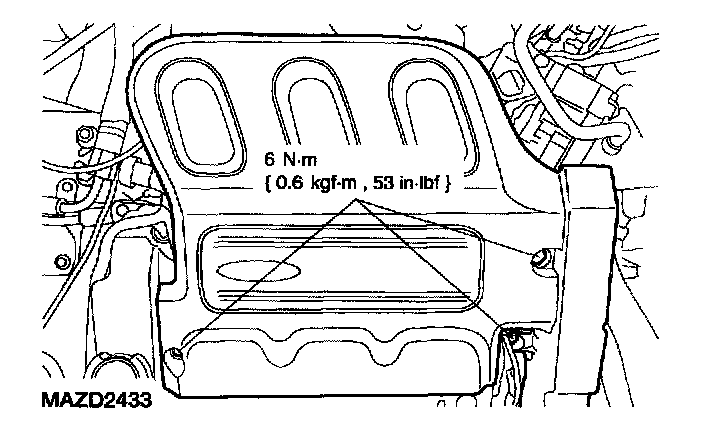

1. Remove the nuts and the engine appearance cover.

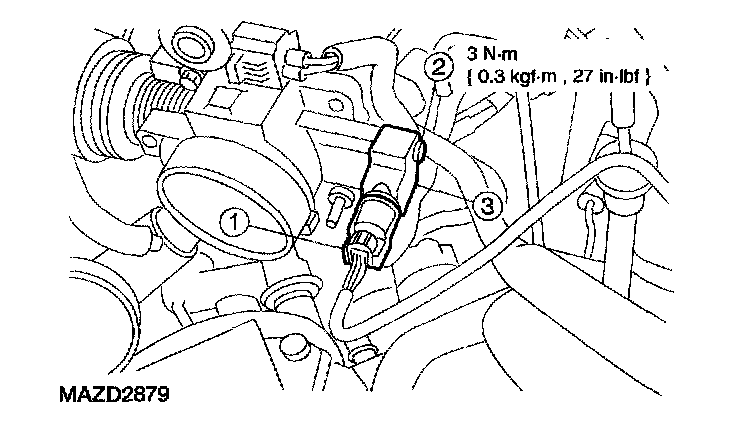

2. Remove the throttle position (TP) sensor.
1. Disconnect the electrical connector.
2. Remove the screws.
3. Remove the sensor

3. To install, reverse the removal procedure.
