Knock Sensor: Service and Repair

KNOCK SENSOR (KS) 3.0L DURATEC (4V)

Removal and Installation

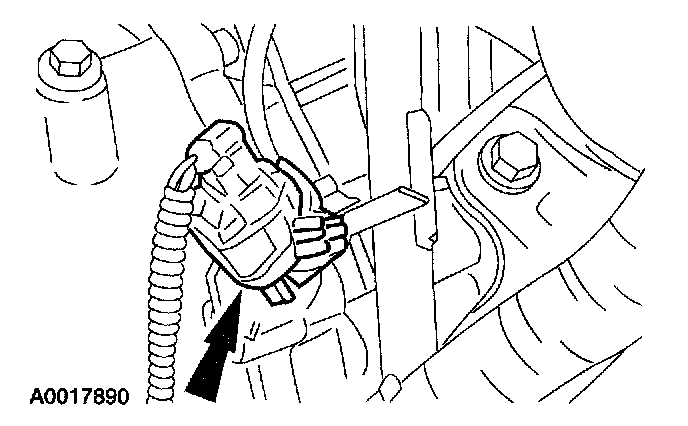

1. Disconnect the knock sensor (KS) electrical connector.

NOTE: The KS is located on the RH side of the cylinder block.




2. Remove the bolt and the KS.
3. To install, reverse the removal procedure.
