Spark Plug: Service and Repair

SPARK PLUGS

Removal




1. Remove the ignition coil-on-plugs. Refer to IGNITION COIL-ON-PLUG - LH, and IGNITION COIL-ON-PLUG - RH.

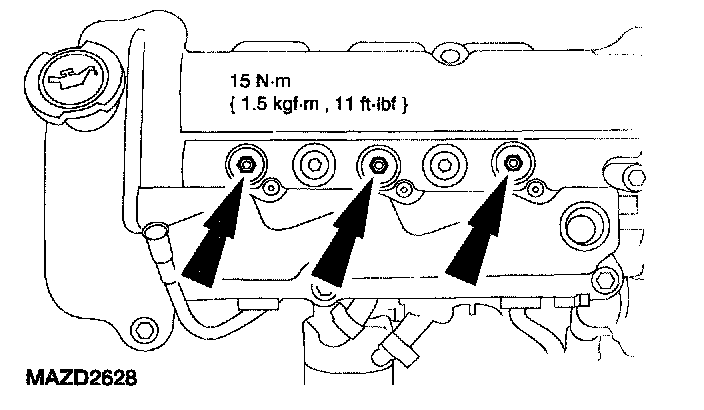

NOTE: LH shown, RH similar.

2. Remove the LH and RH spark plugs.
3. Inspect the spark plugs. Refer to SPARK PLUG - INSPECTION.
4. To install, reverse the removal procedure.
