Symptom Related Diagnostic Procedures

SYMPTOM TROUBLESHOOTING CHART - CONVENTIONAL BRAKE SYSTEM

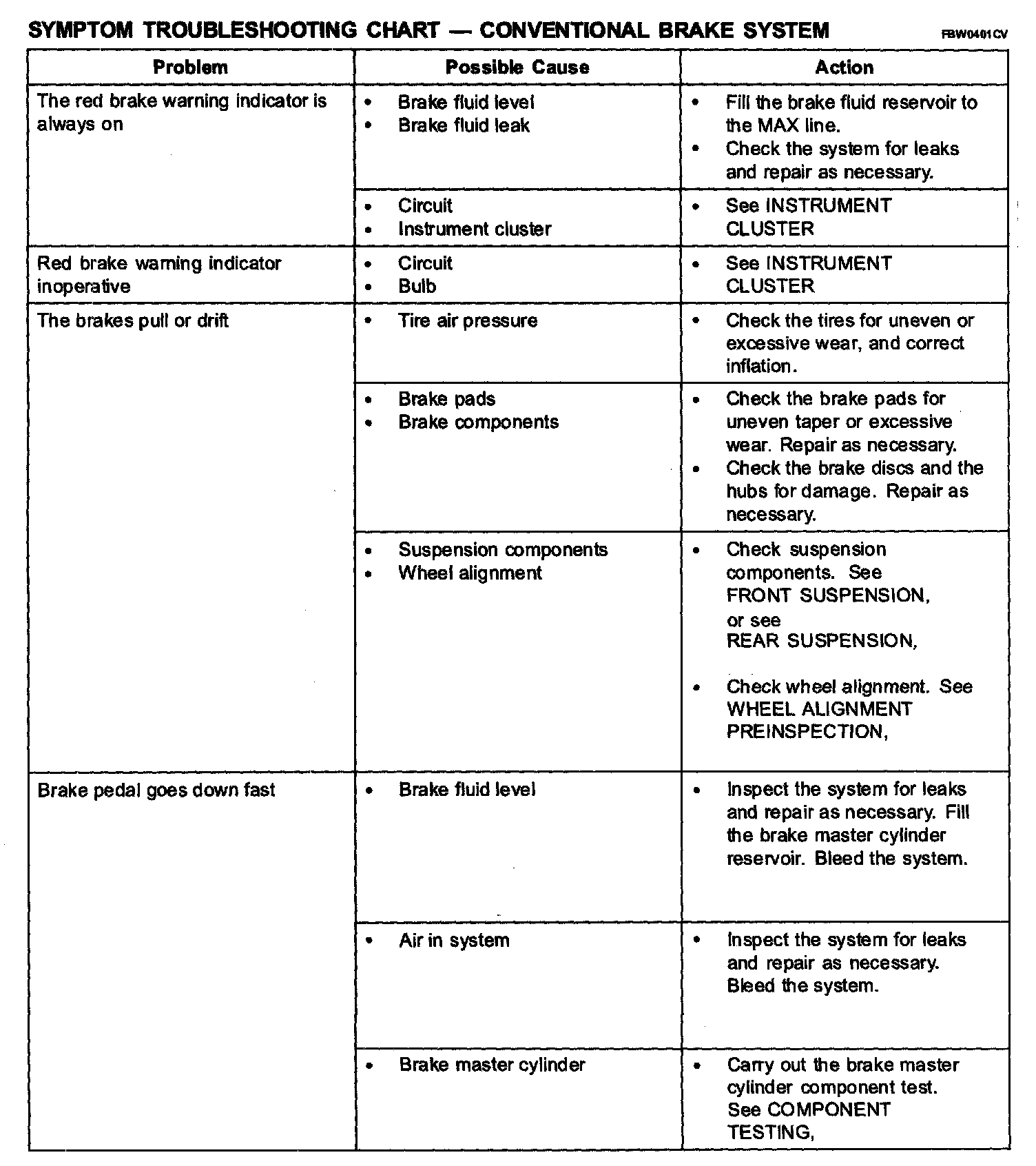

SYMPTOM TROUBLESHOOTING CHART - CONVENTIONAL BRAKE SYSTEM (Part 1):

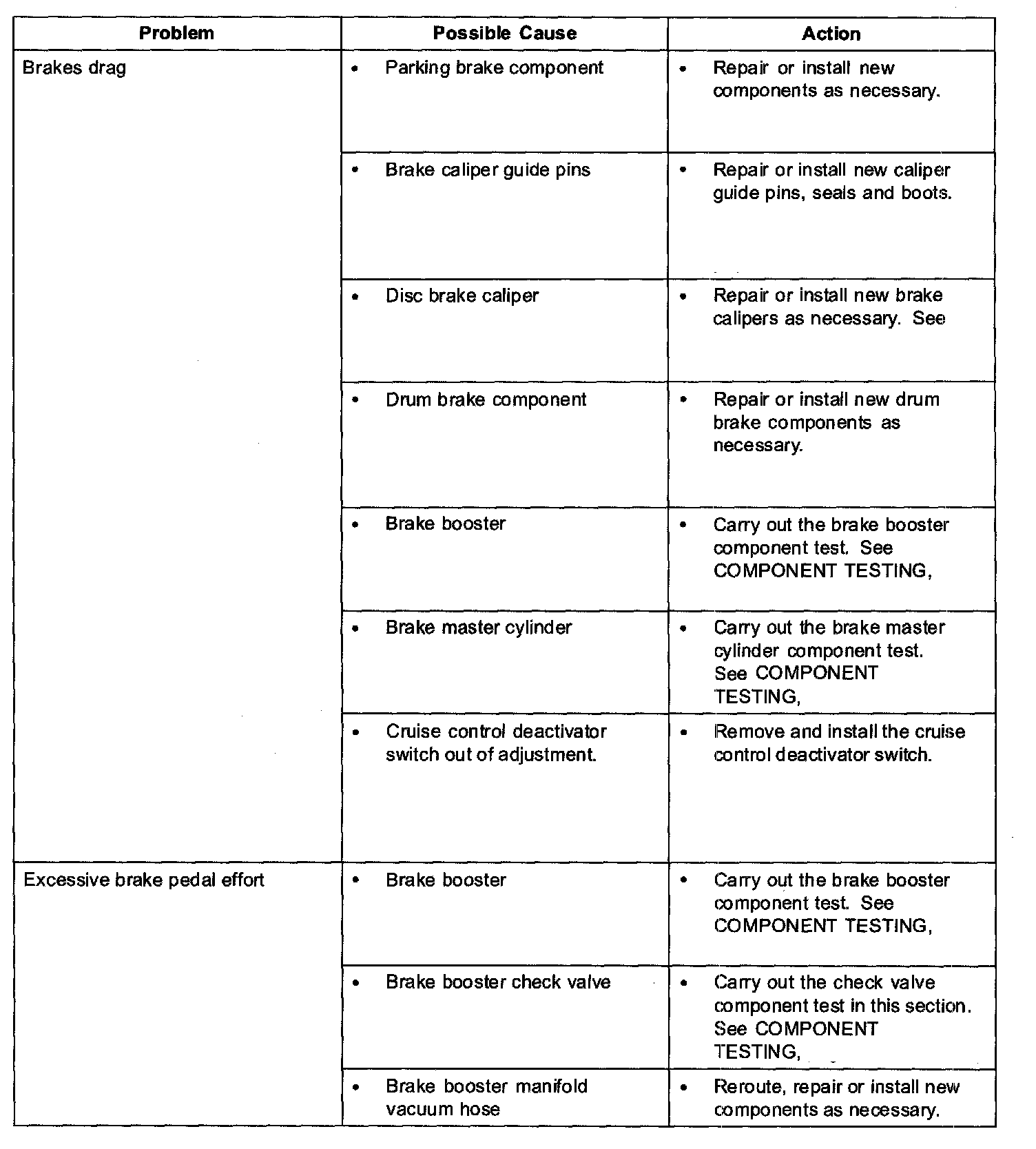

SYMPTOM TROUBLESHOOTING CHART - CONVENTIONAL BRAKE SYSTEM (Part 2):

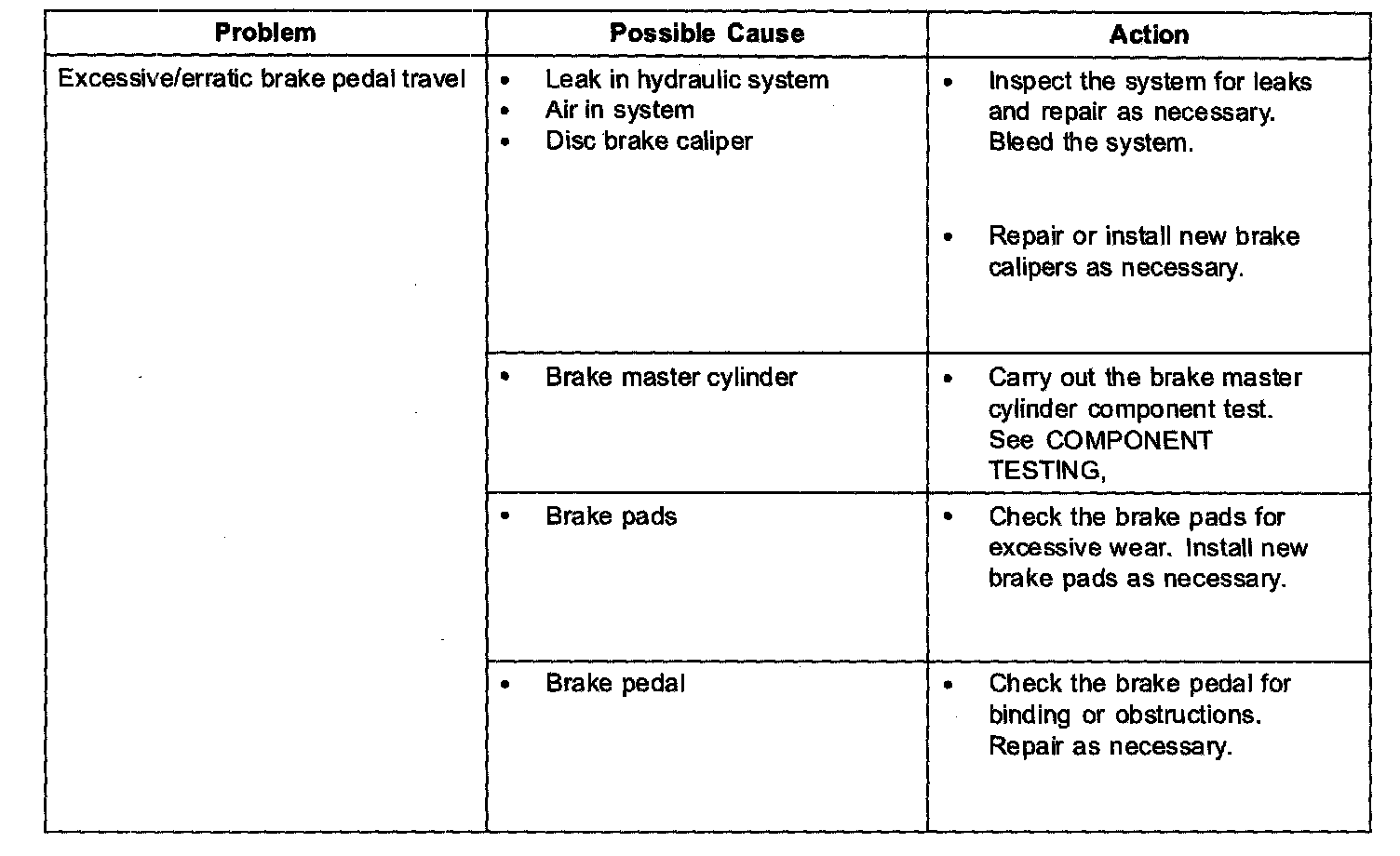

SYMPTOM TROUBLESHOOTING CHART - CONVENTIONAL BRAKE SYSTEM (Part 3):

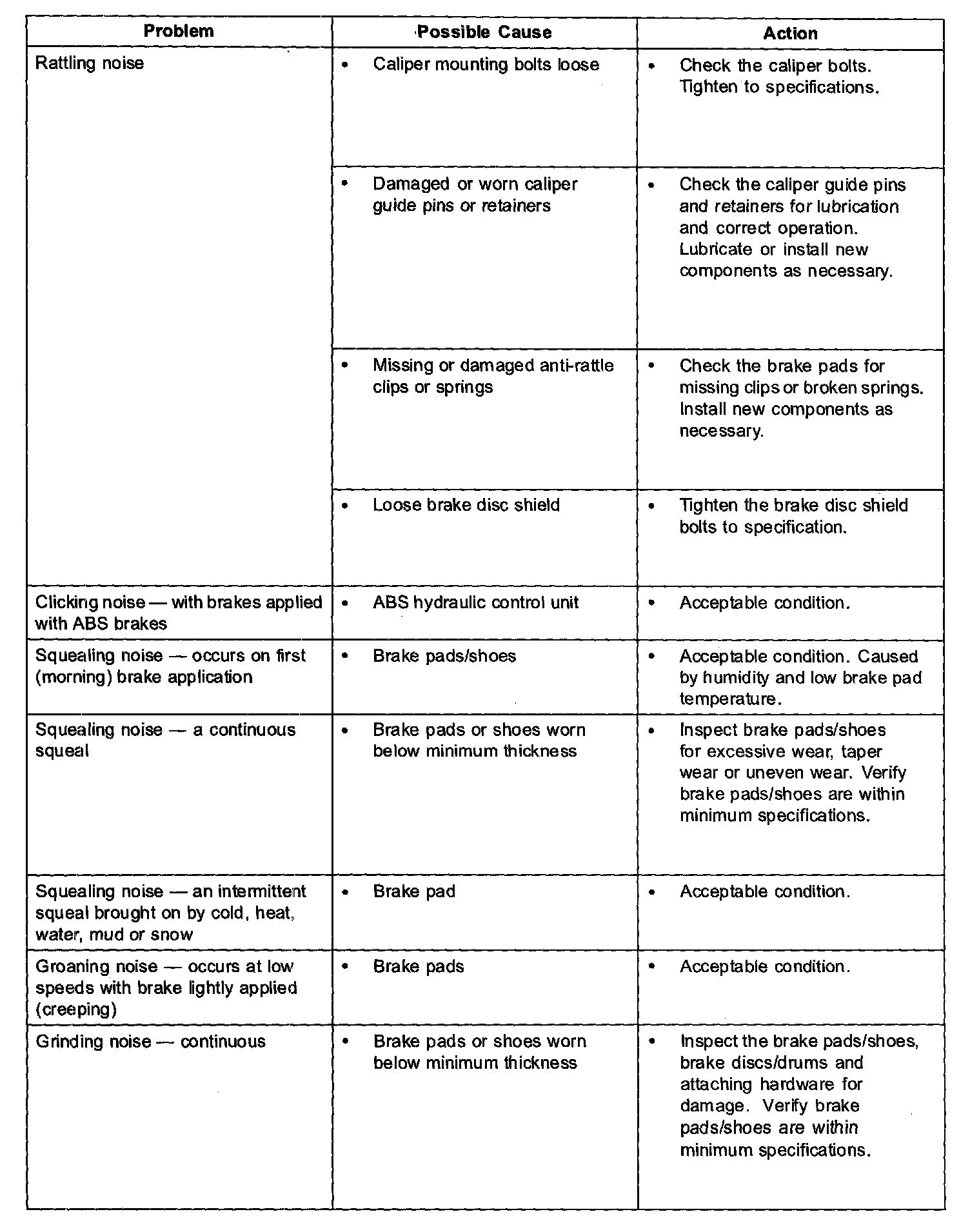

SYMPTOM TROUBLESHOOTING CHART - CONVENTIONAL BRAKE SYSTEM (Part 4):

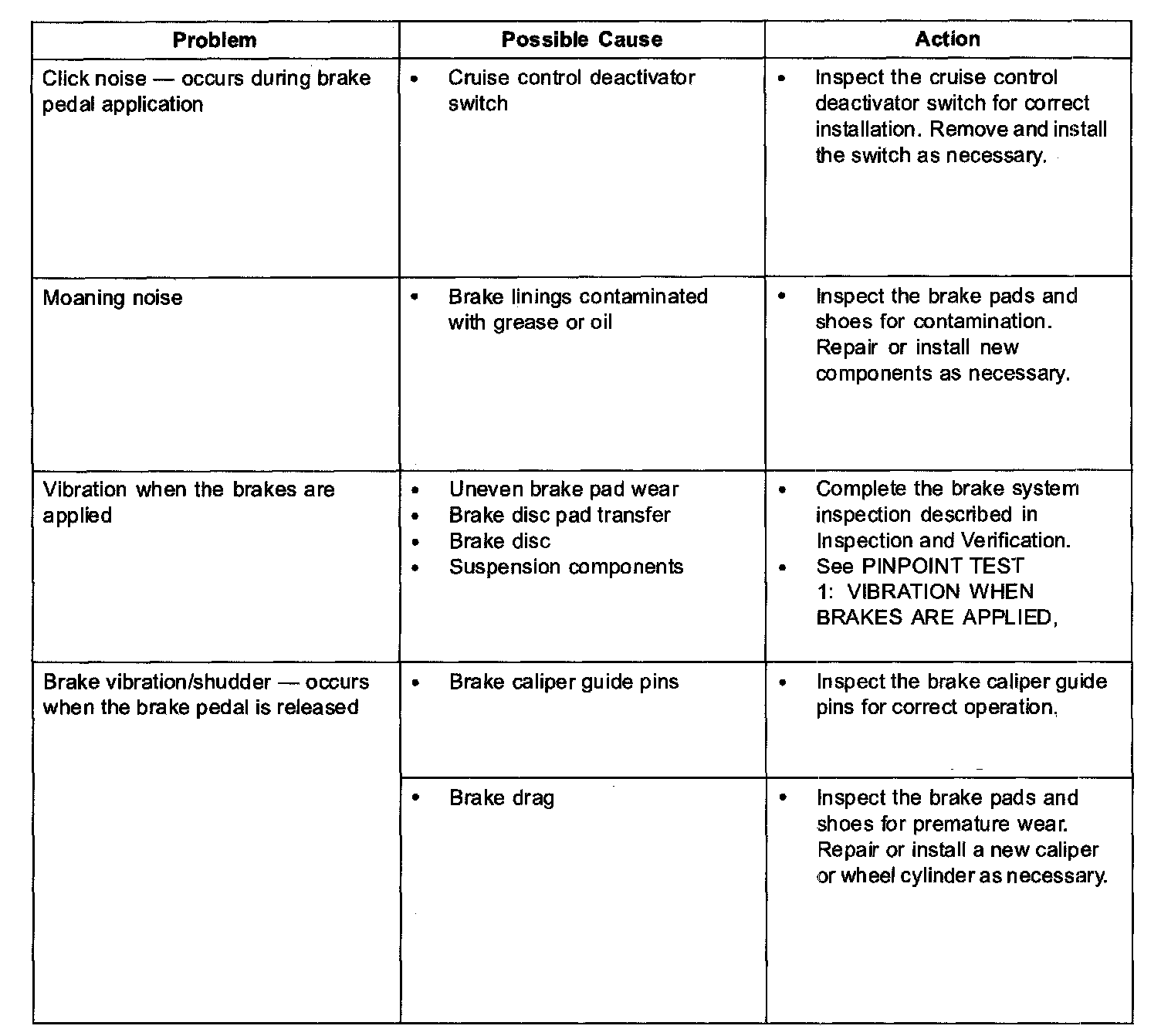

SYMPTOM TROUBLESHOOTING CHART - CONVENTIONAL BRAKE SYSTEM (Part 5):

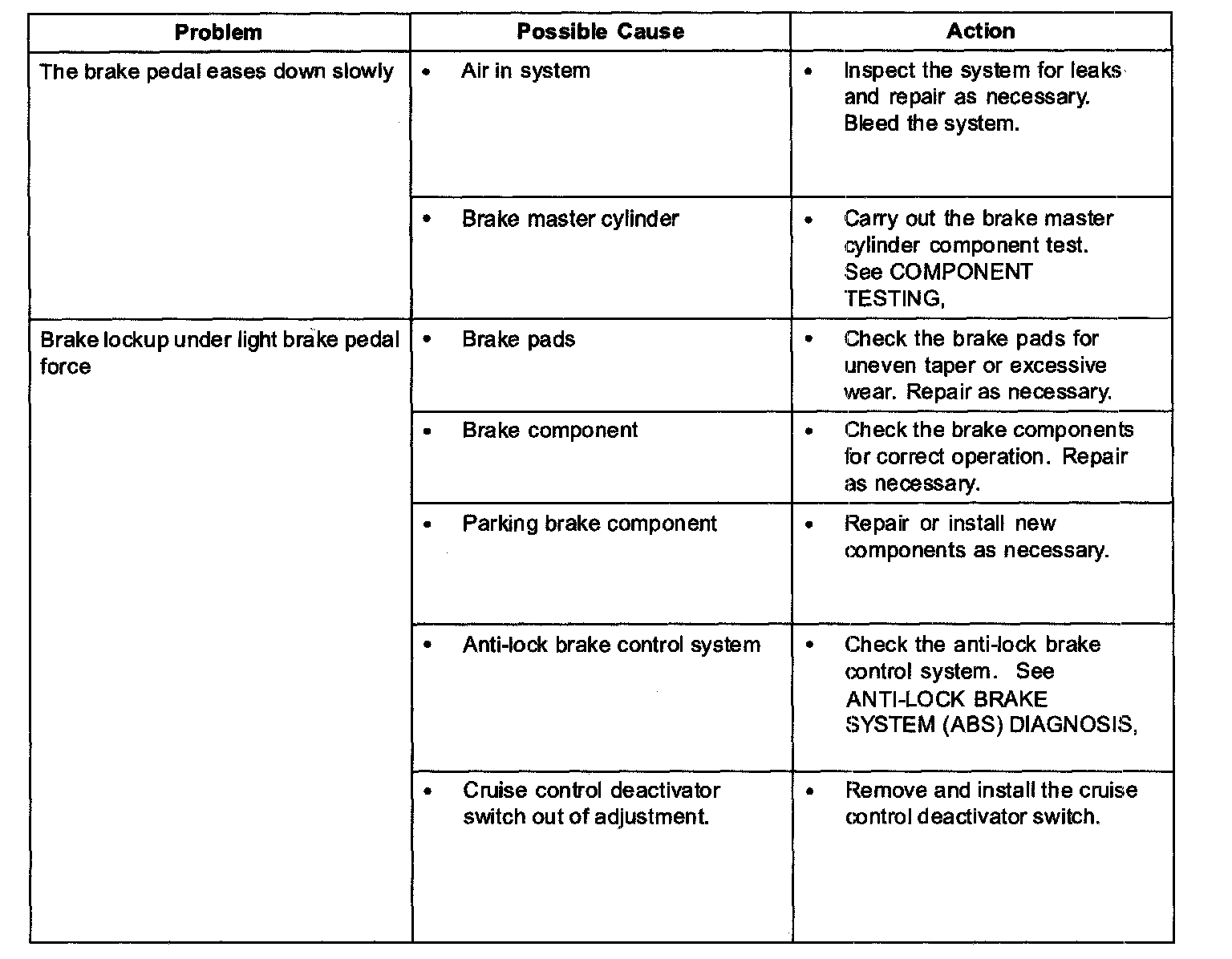

SYMPTOM TROUBLESHOOTING CHART - CONVENTIONAL BRAKE SYSTEM (Part 6):
