Pinpoint Test 1

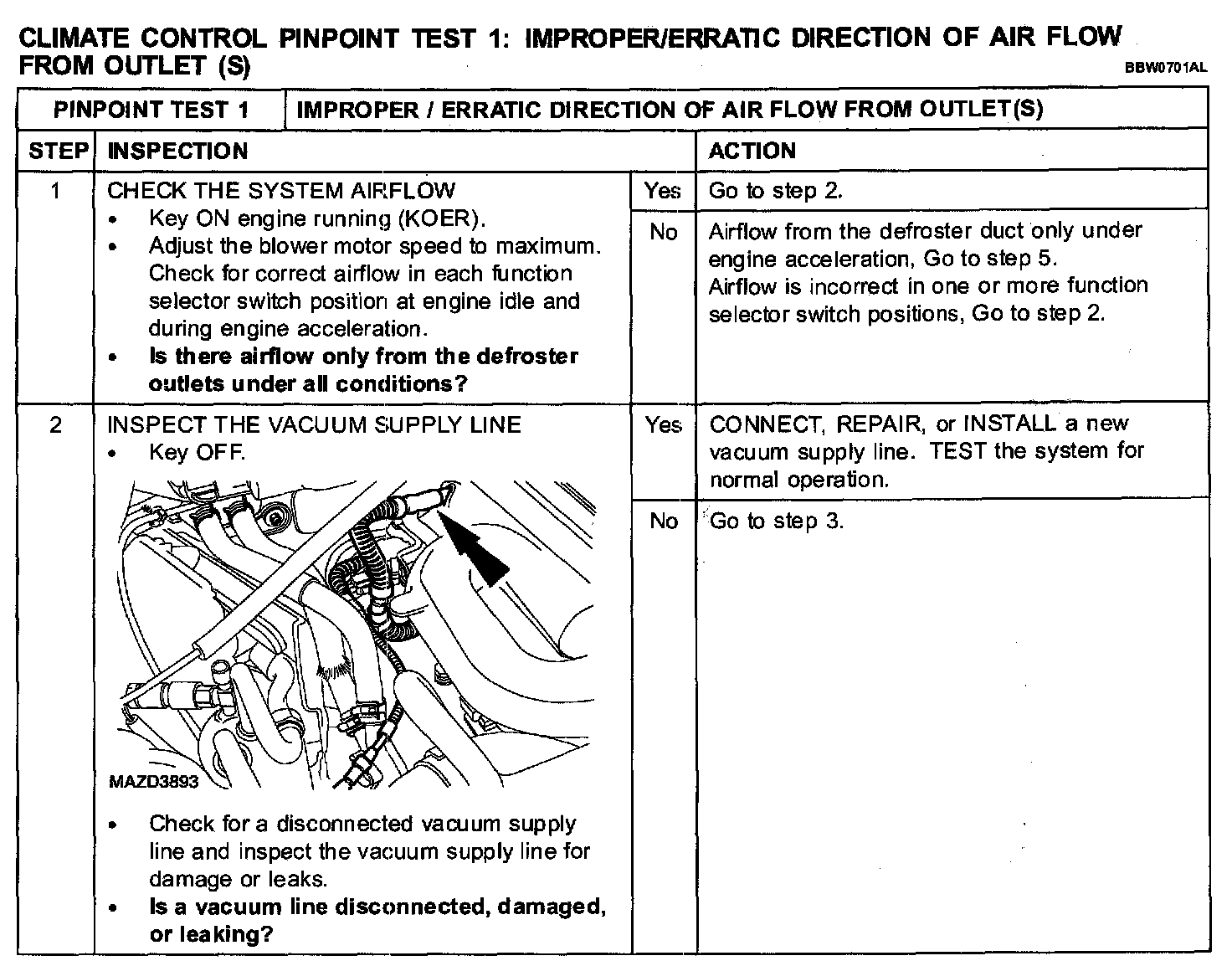

Step 1 - 2:

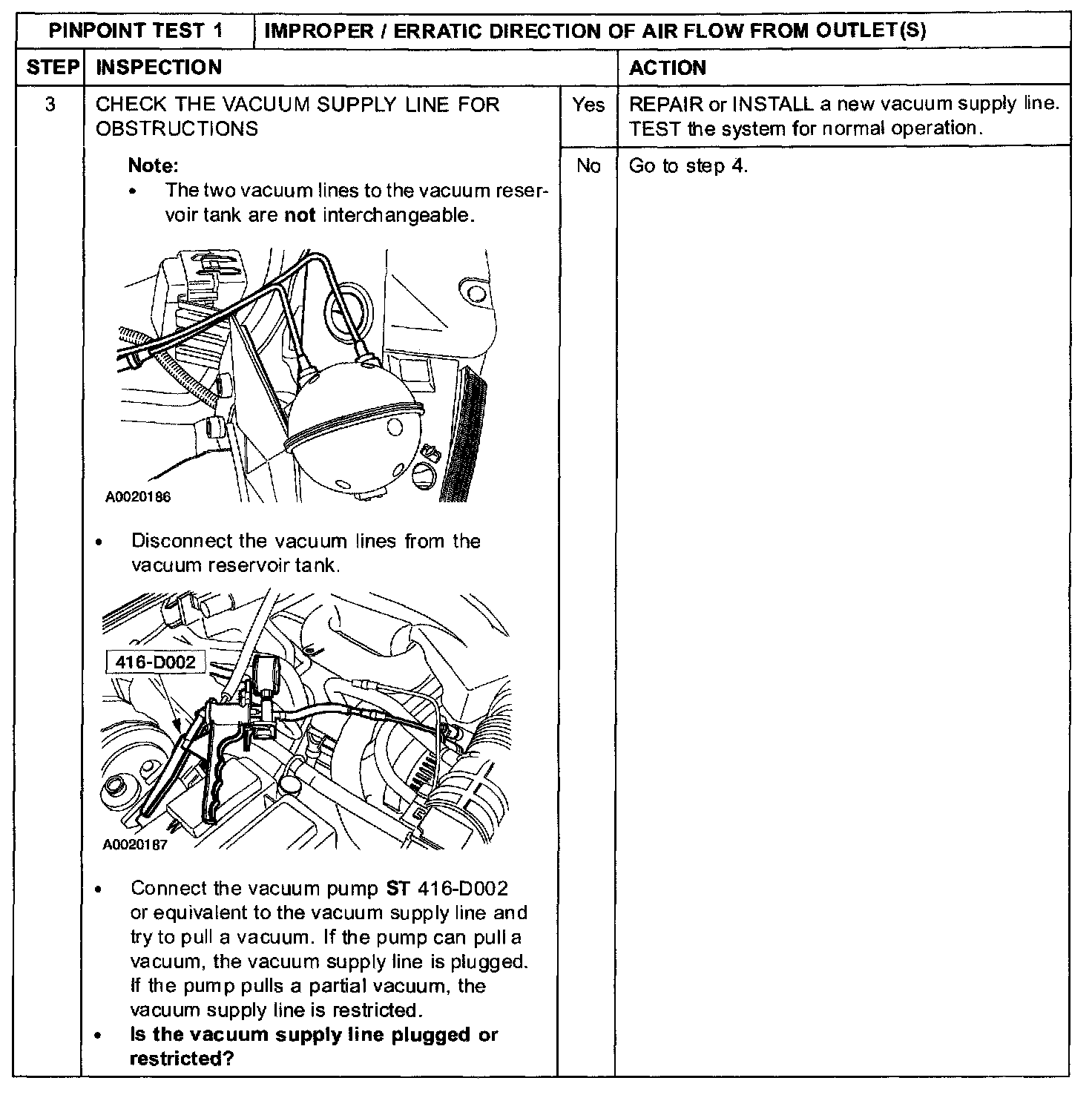

Step 3:

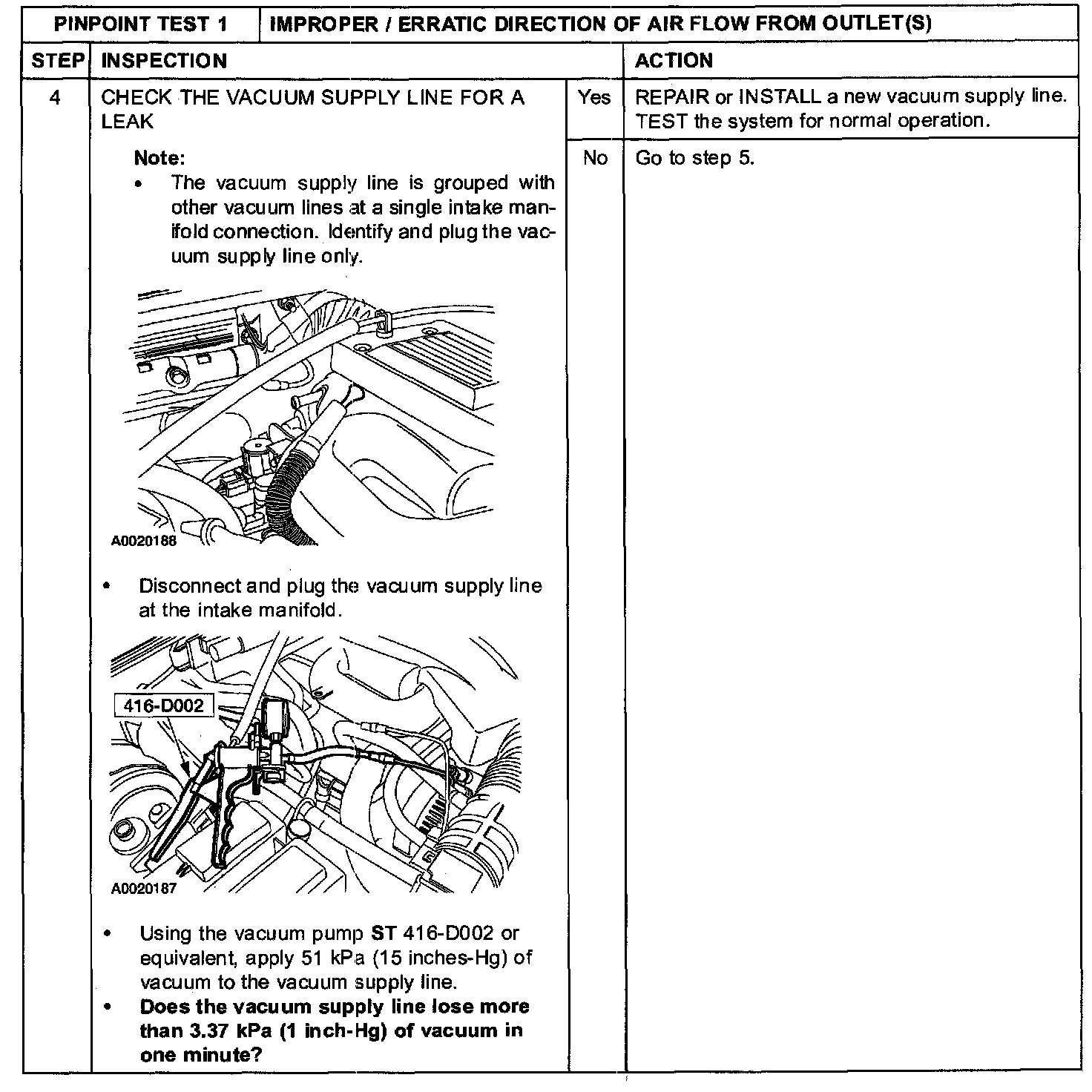

Step 4:

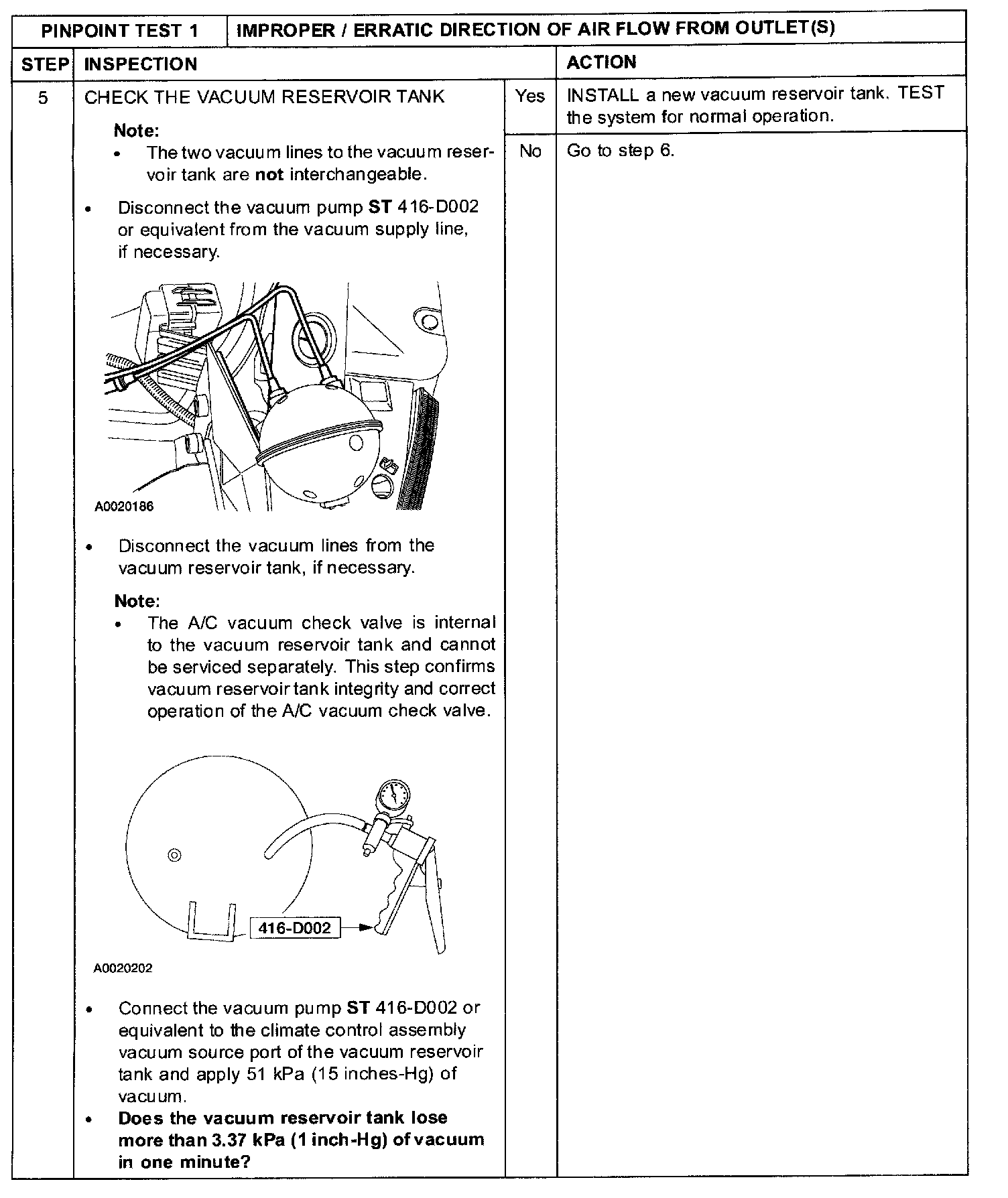

Step 5:

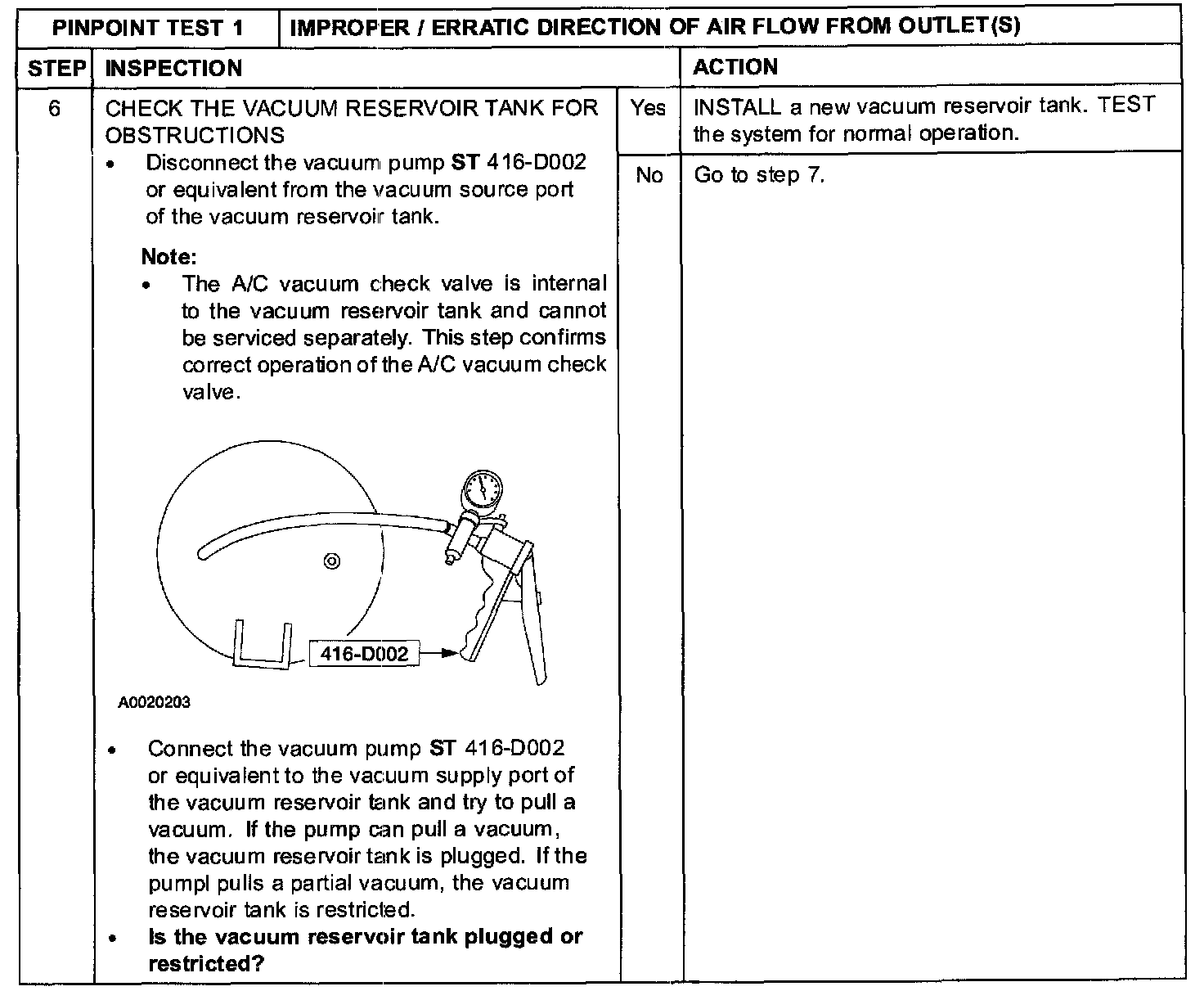

Step 6:

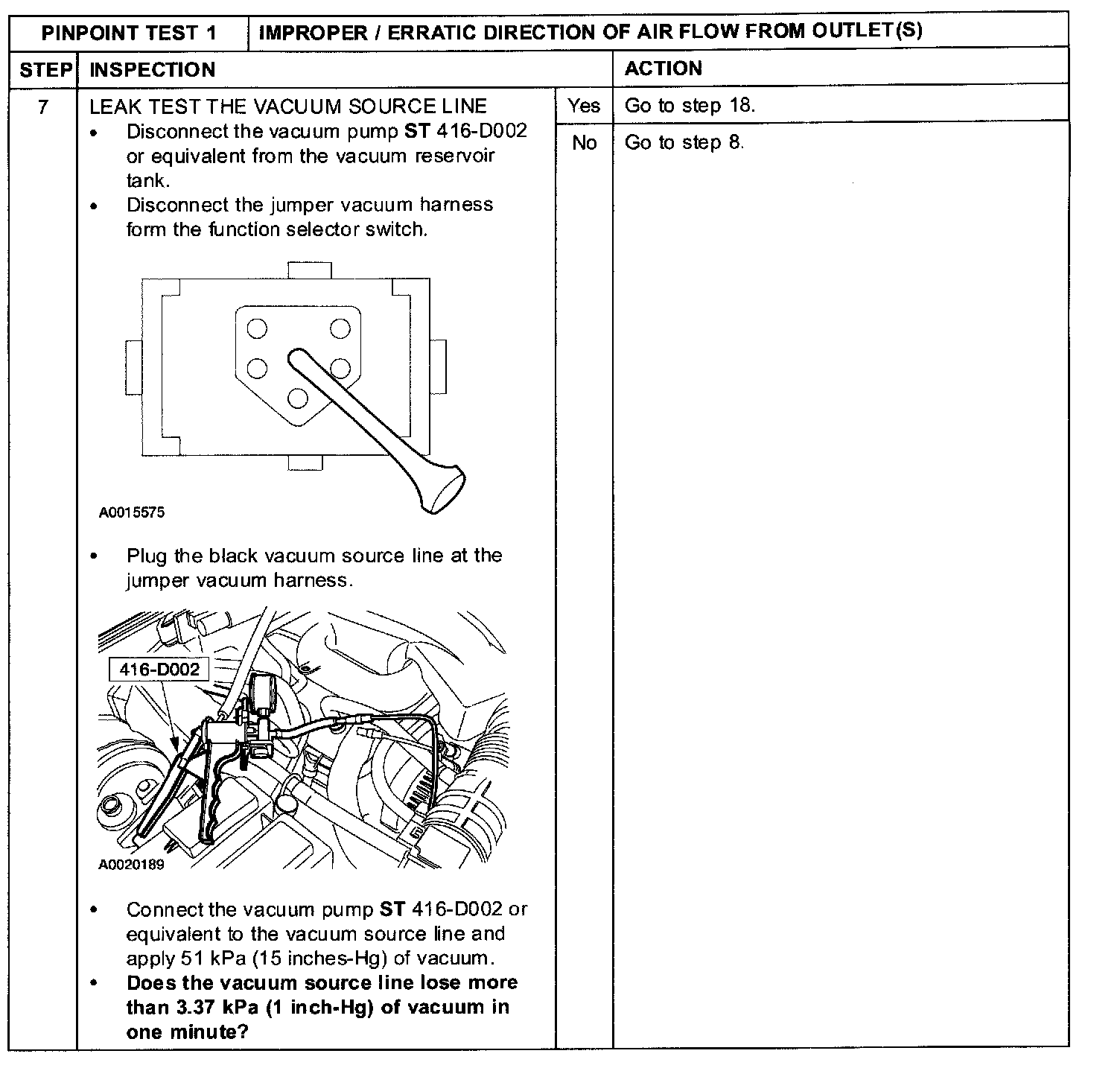

Step 7:

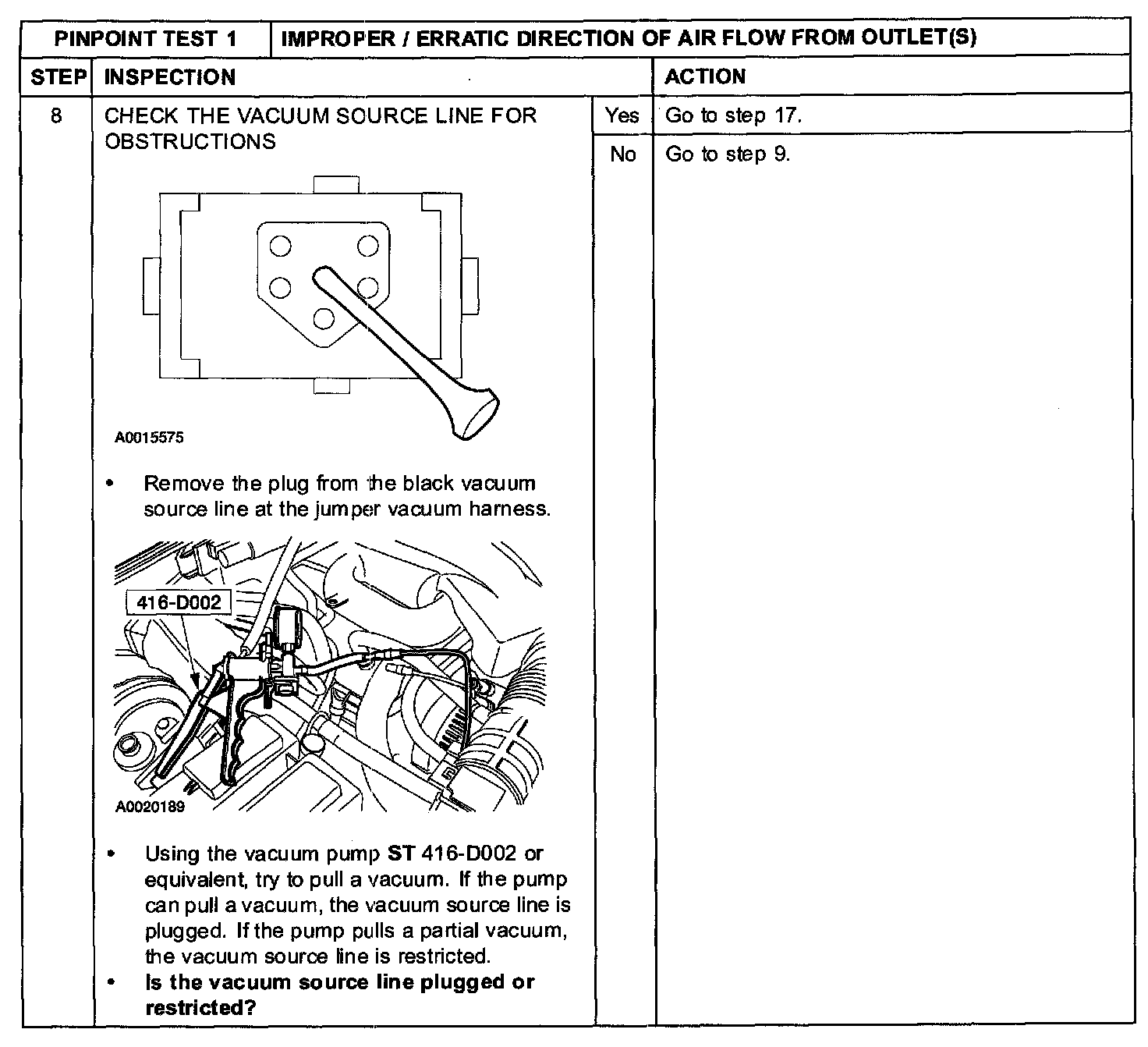

Step 8:

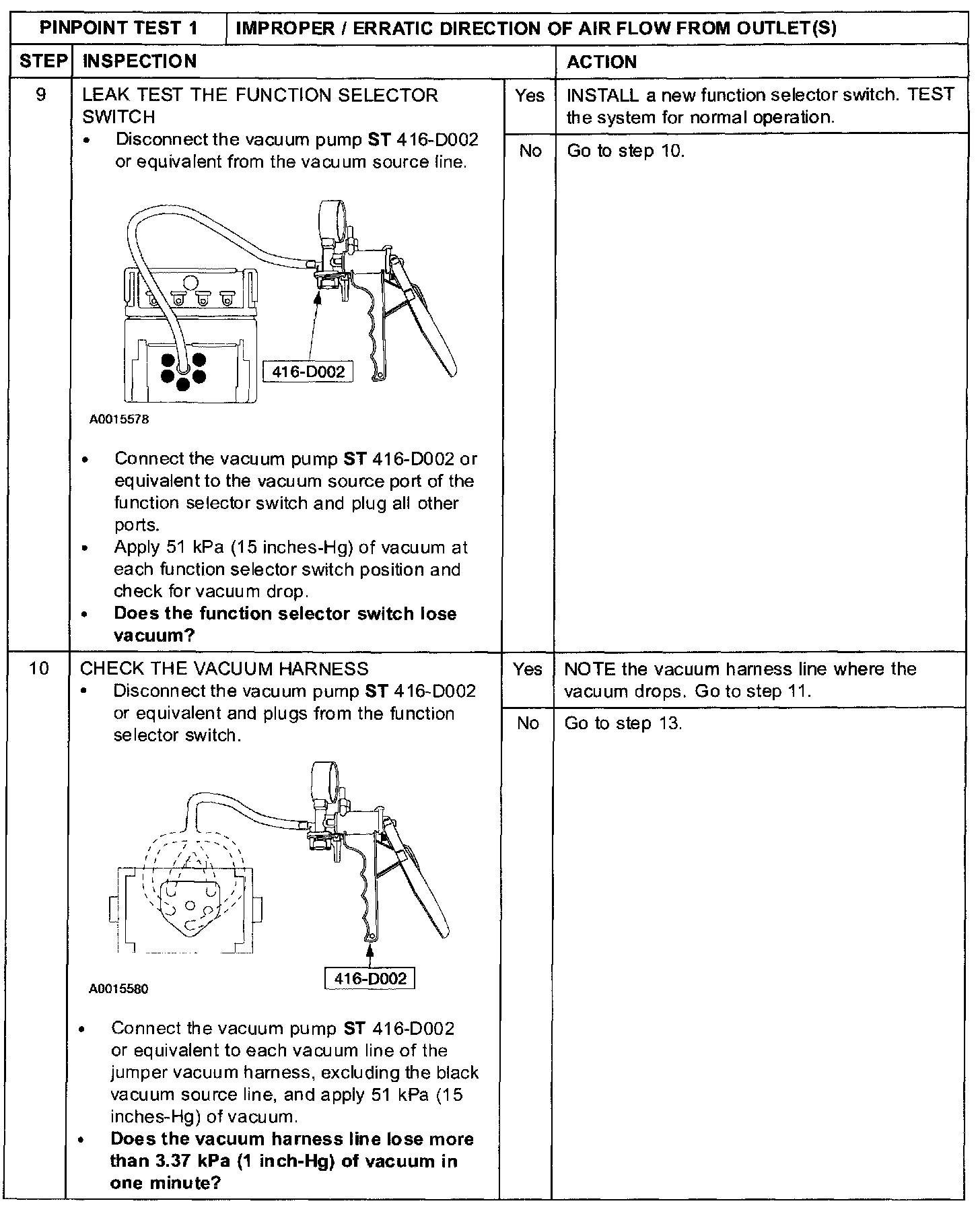

Step 9 - 10:

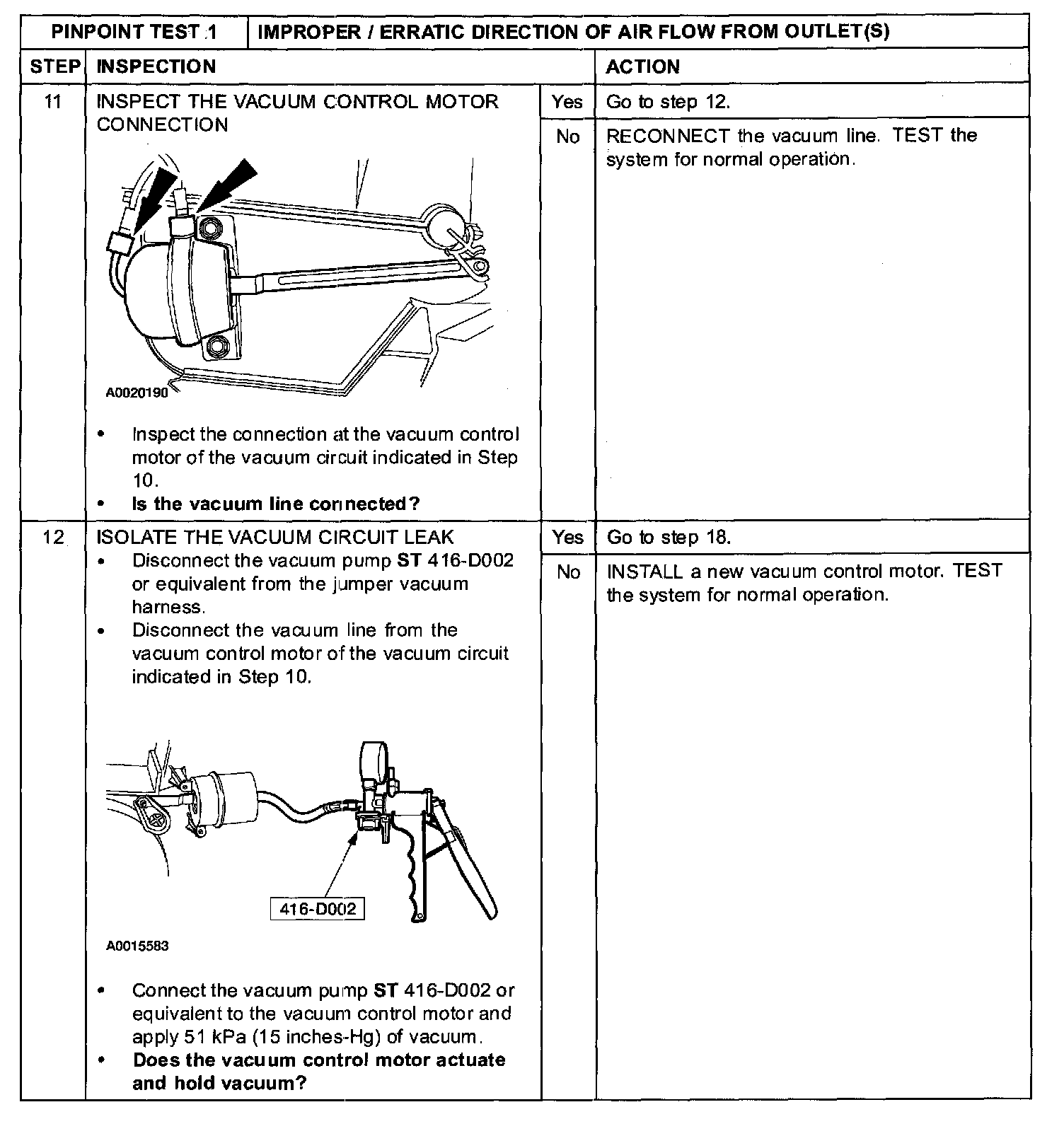

Step 11 - 12:

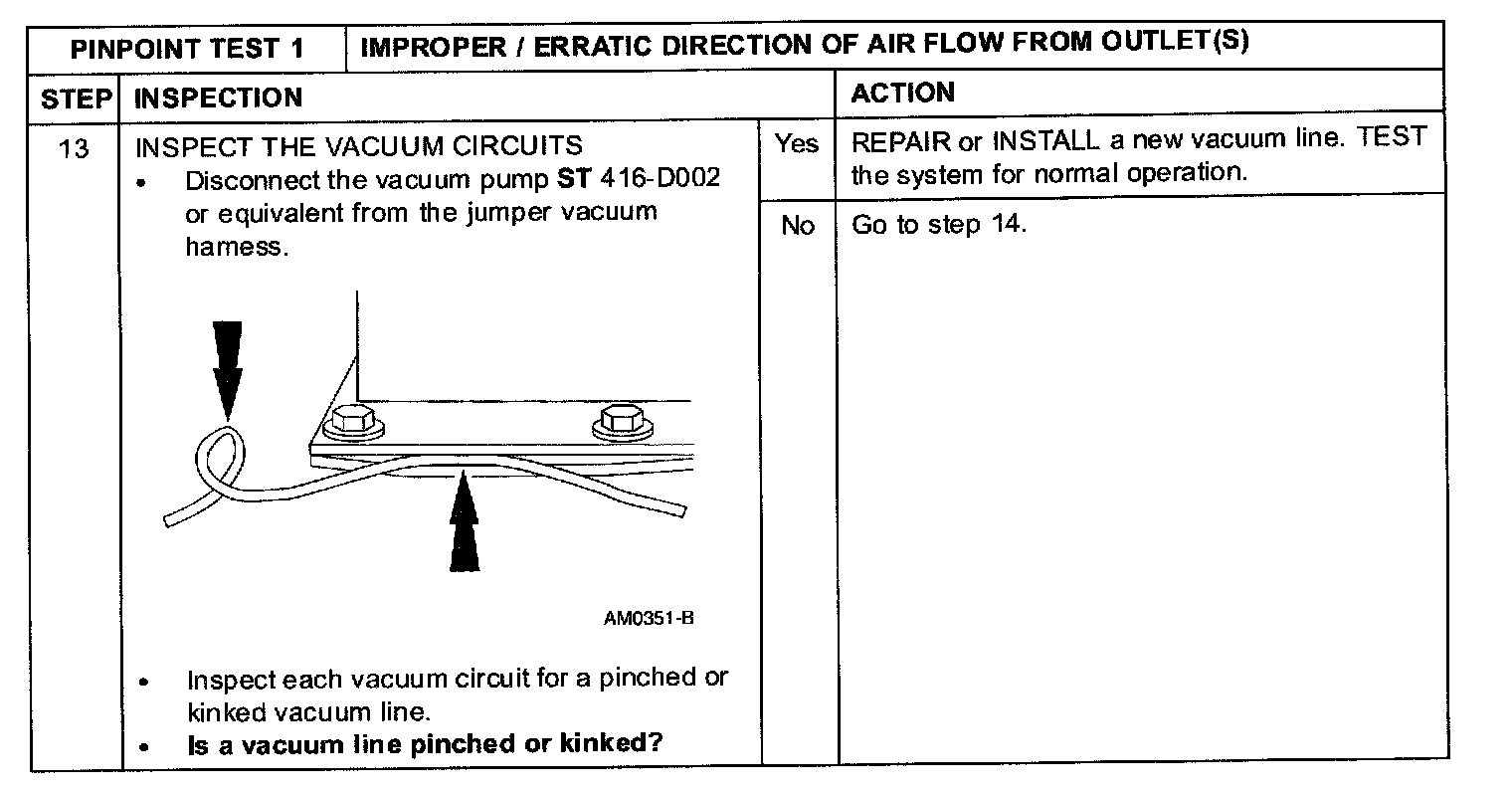

Step 13:

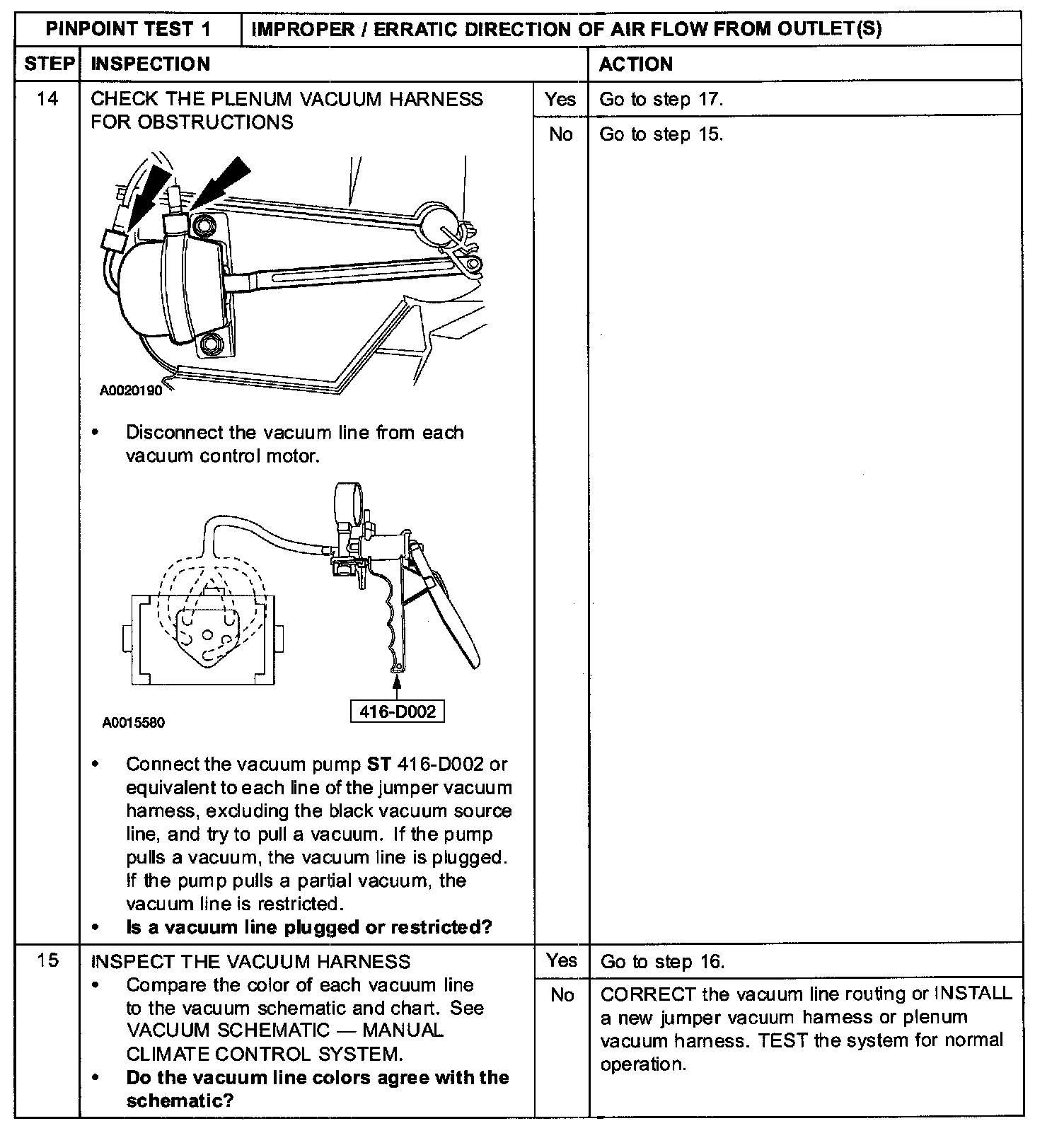

Step 14 - 15:

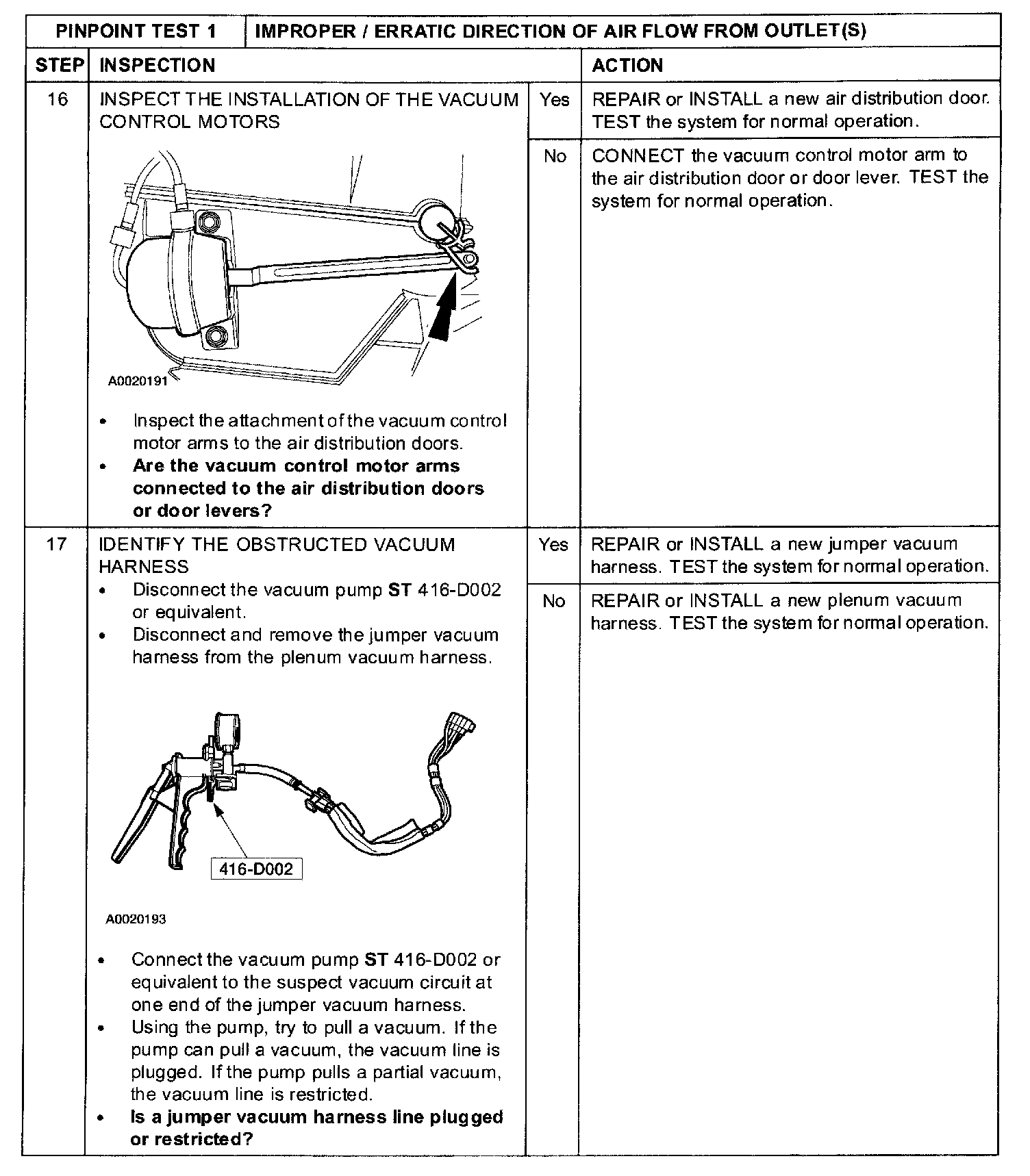

Step 16 - 17:

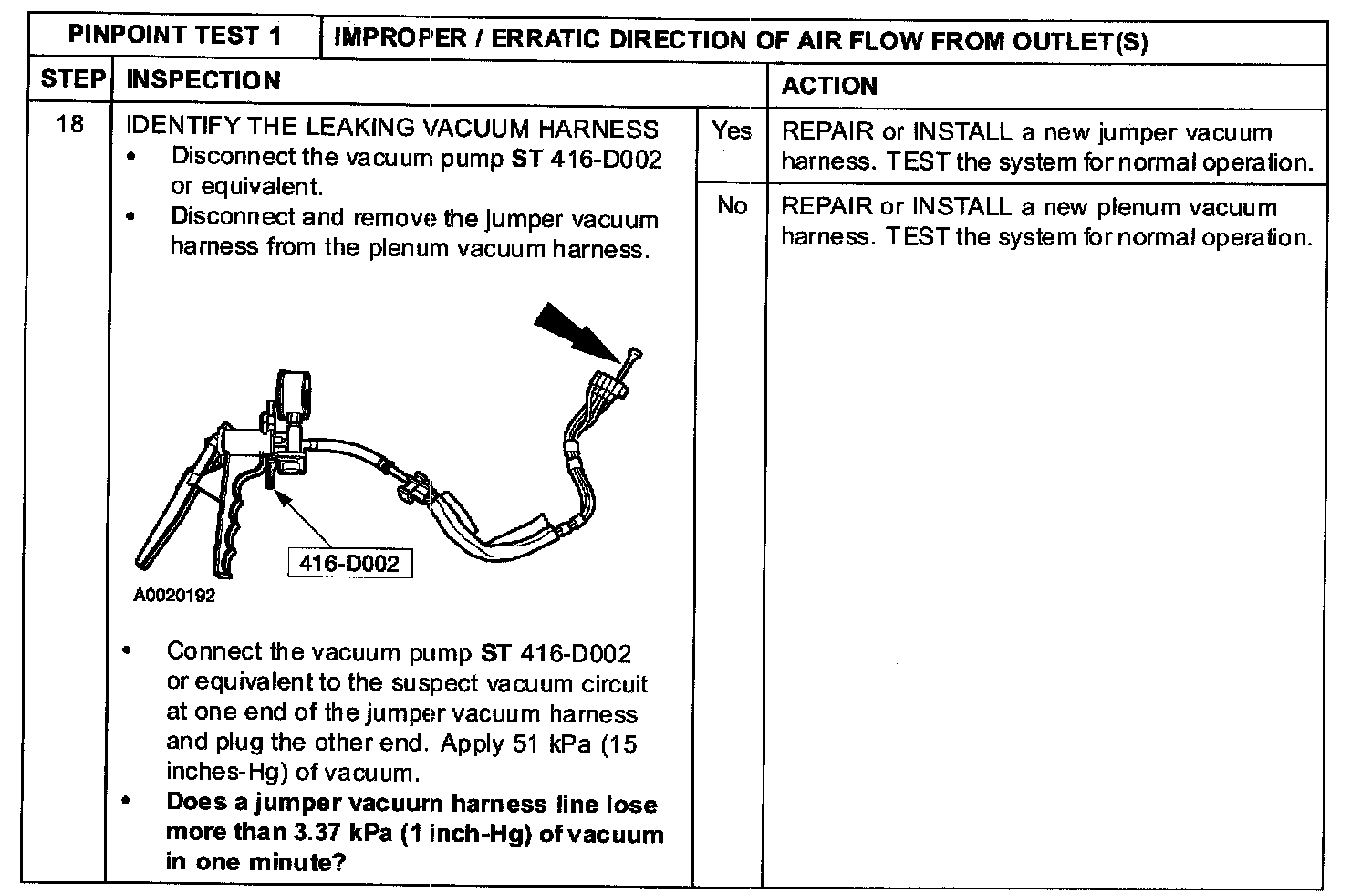

Step 18:
