Overhaul

CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY

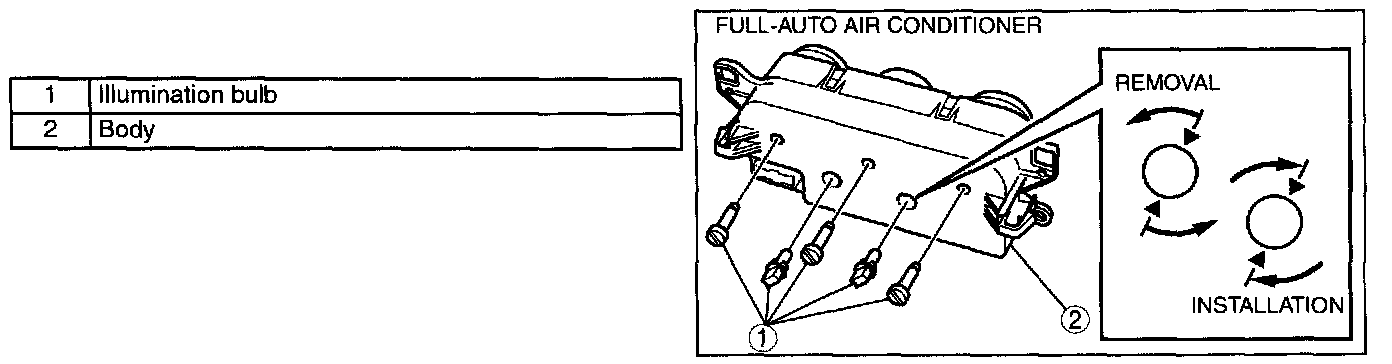

Full-auto Air Conditioner




Disassemble in the order indicated in the table.

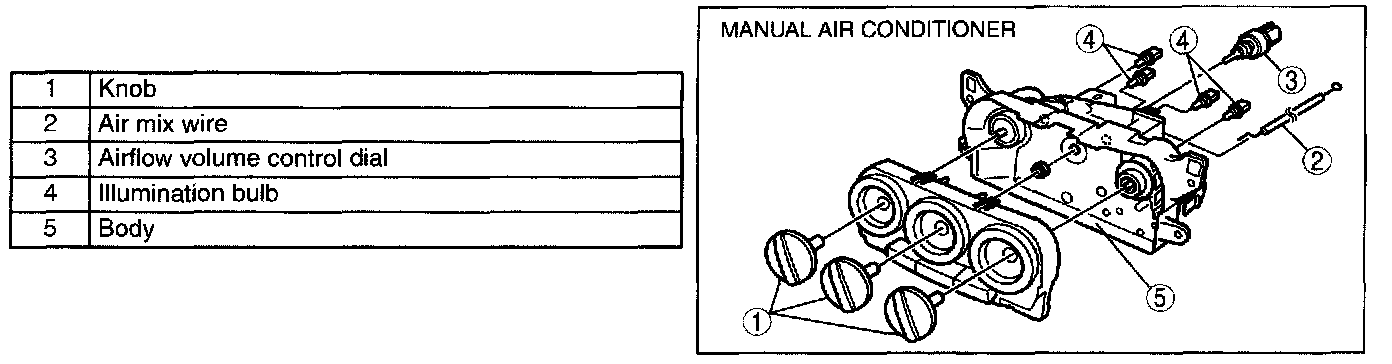

Manual Air Conditioner




Disassemble in the order indicated in the table.

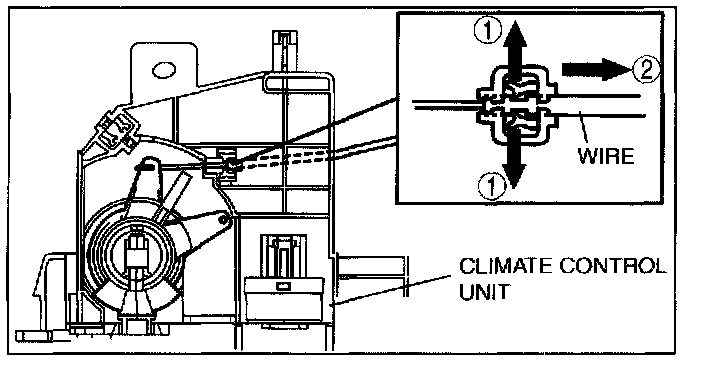

Wire Disassembly Note




1. Disassemble the wire in the shown in the figure.

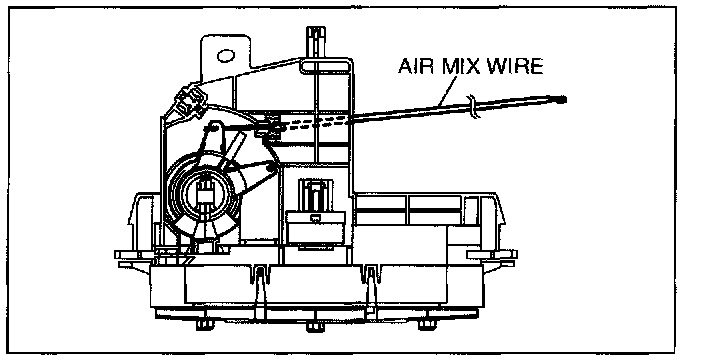

Wire Assembly Note




1. Assemble the wire to the position as shown in the figure.
