Home >> Mazda Truck >> 2008 >> Tribute 2WD L4-2.3L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Tank Pressure Sensor >> Locations

Fuel Tank Pressure Sensor: Locations

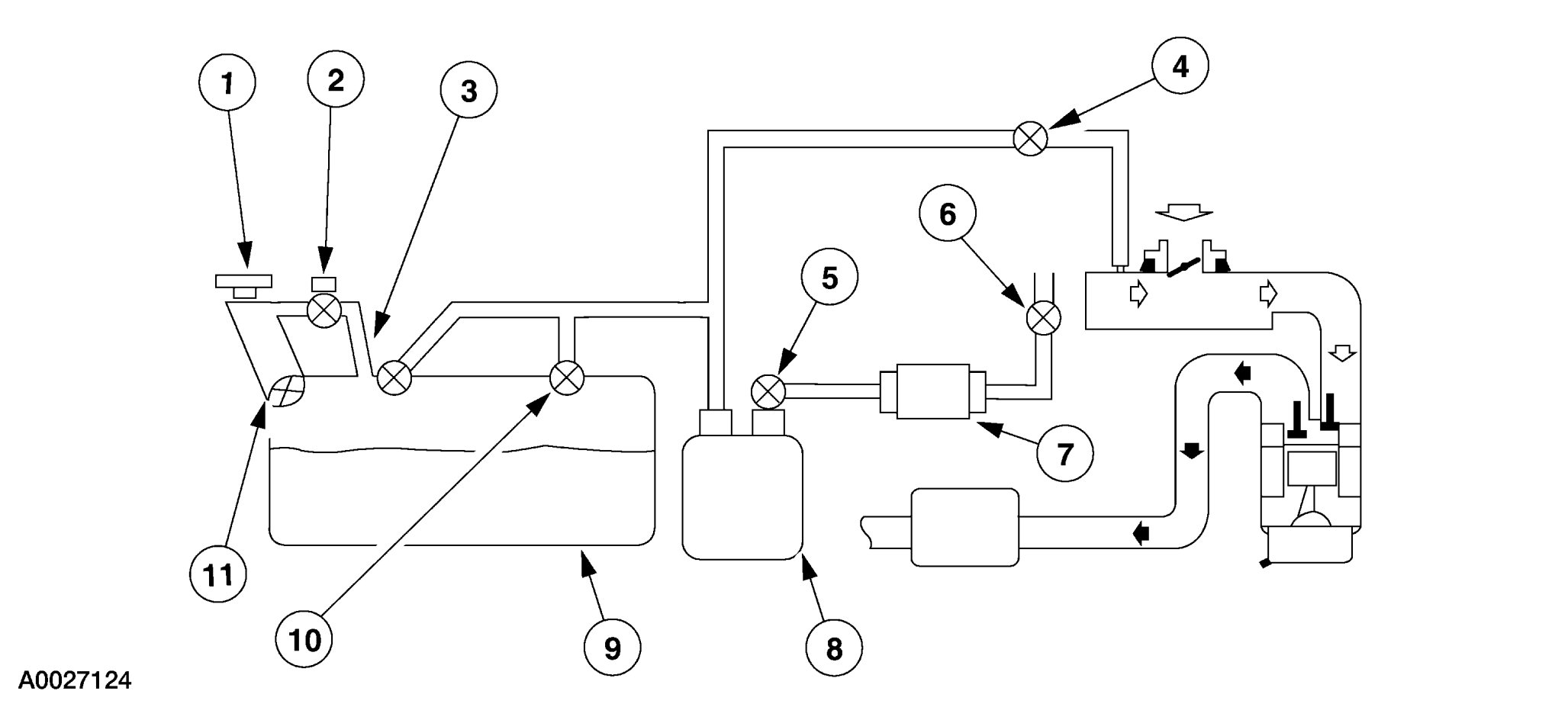

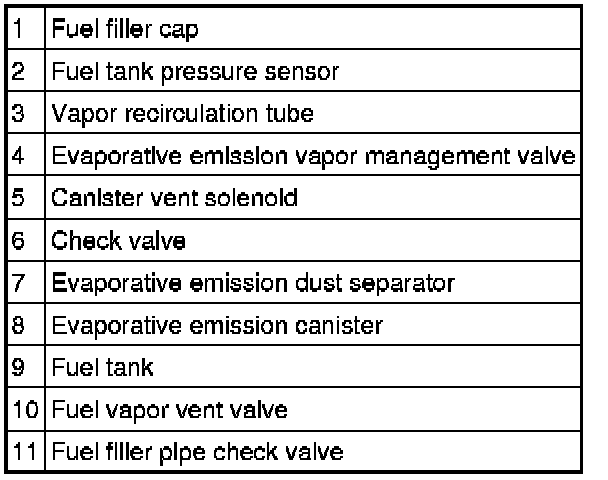

EVAPORATIVE EMISSION SYSTEM

2.3L Engine
