Pinout Values and Diagnostic Parameters

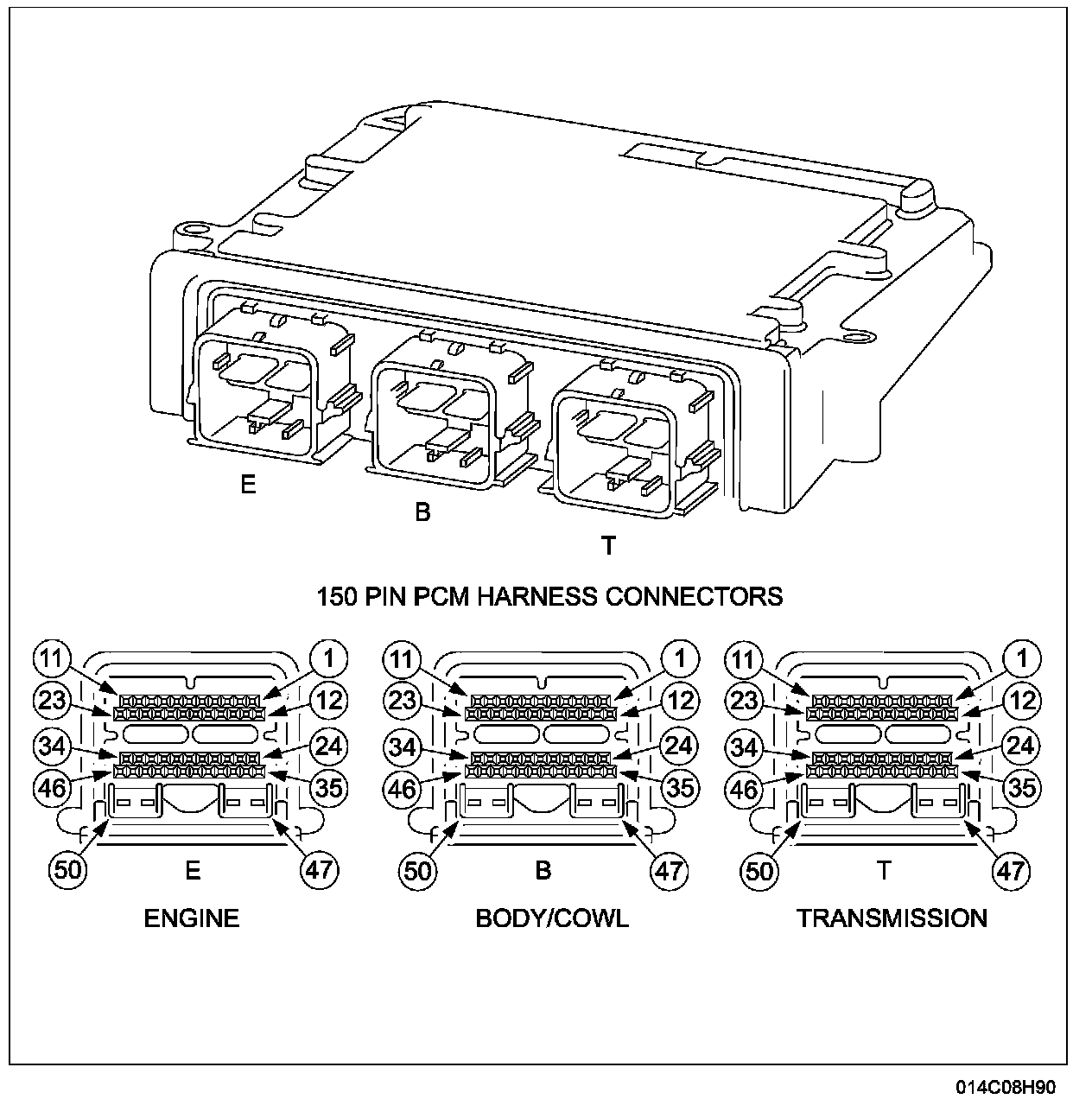

The PCM is located behind the instrument panel (cowl), center to both driver and passenger sides (access from the engine compartment).

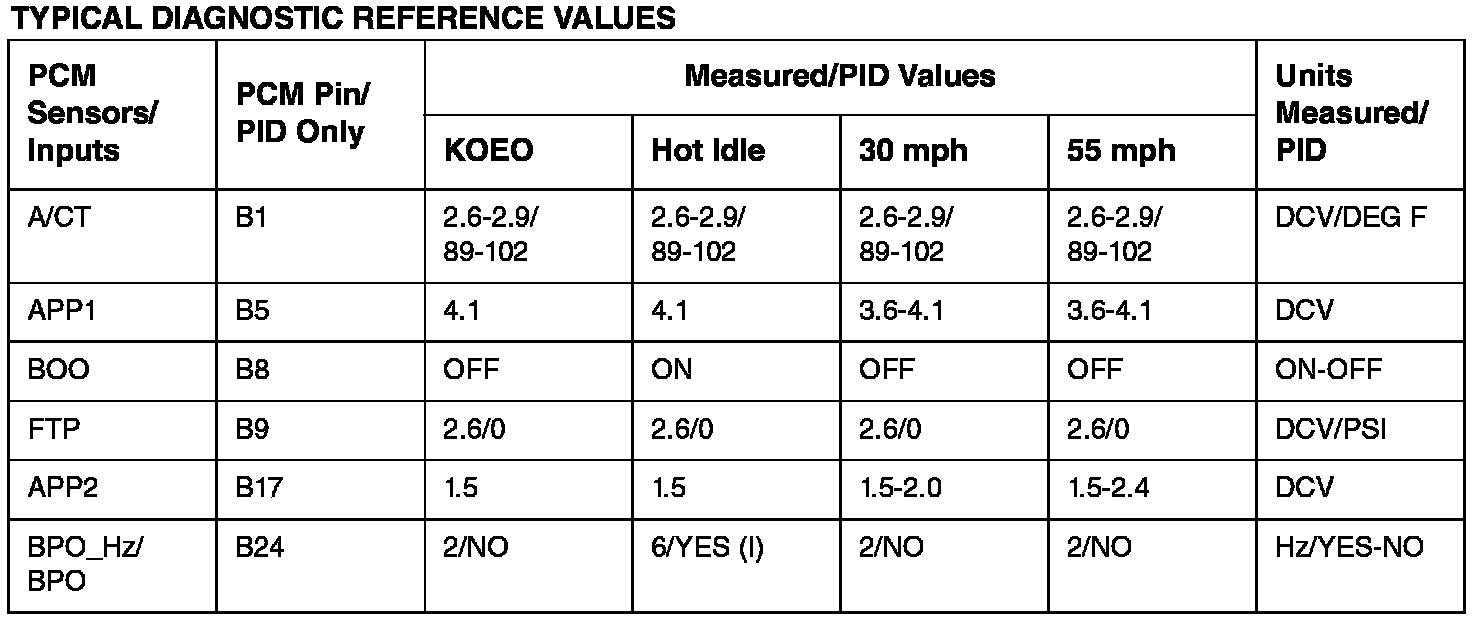

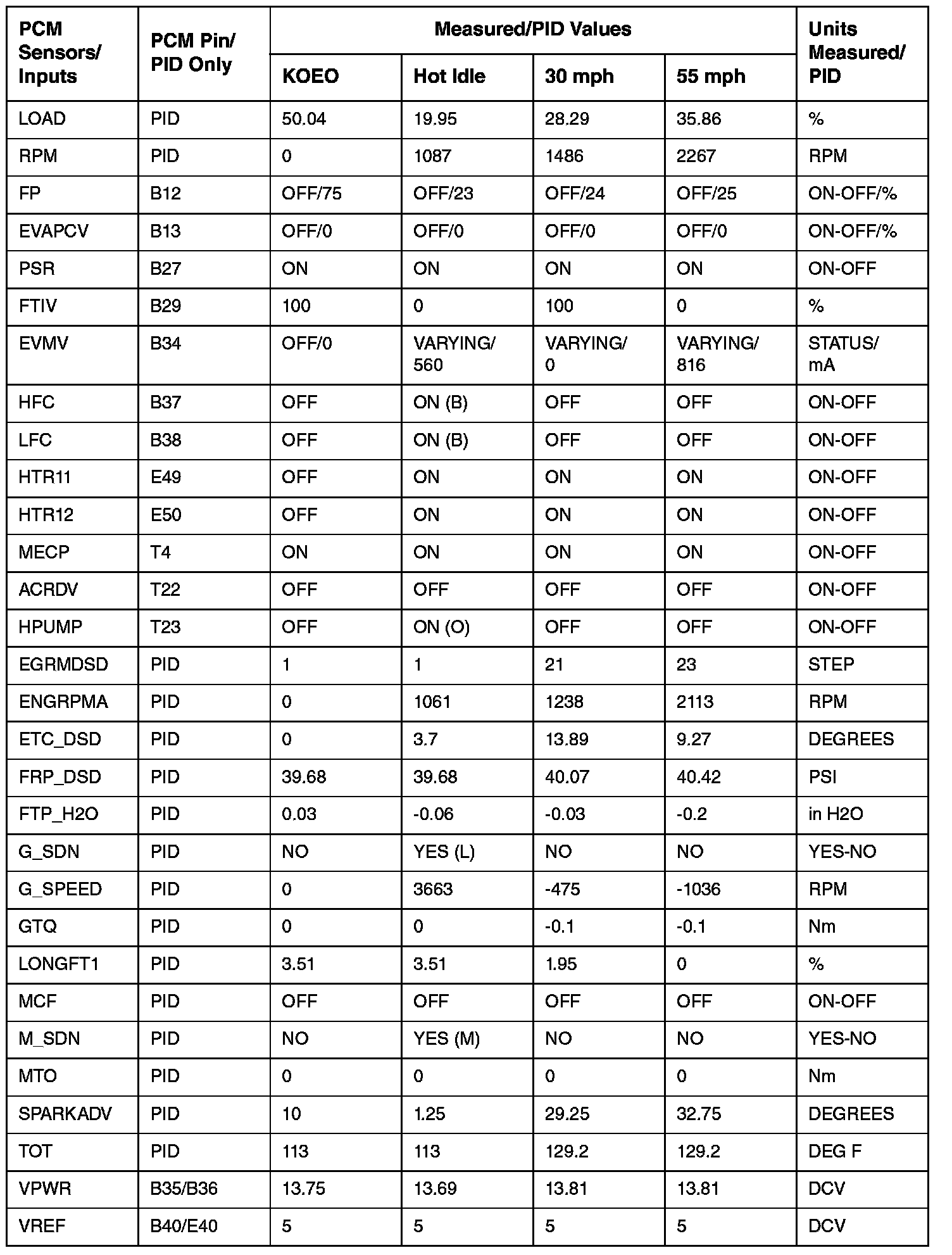

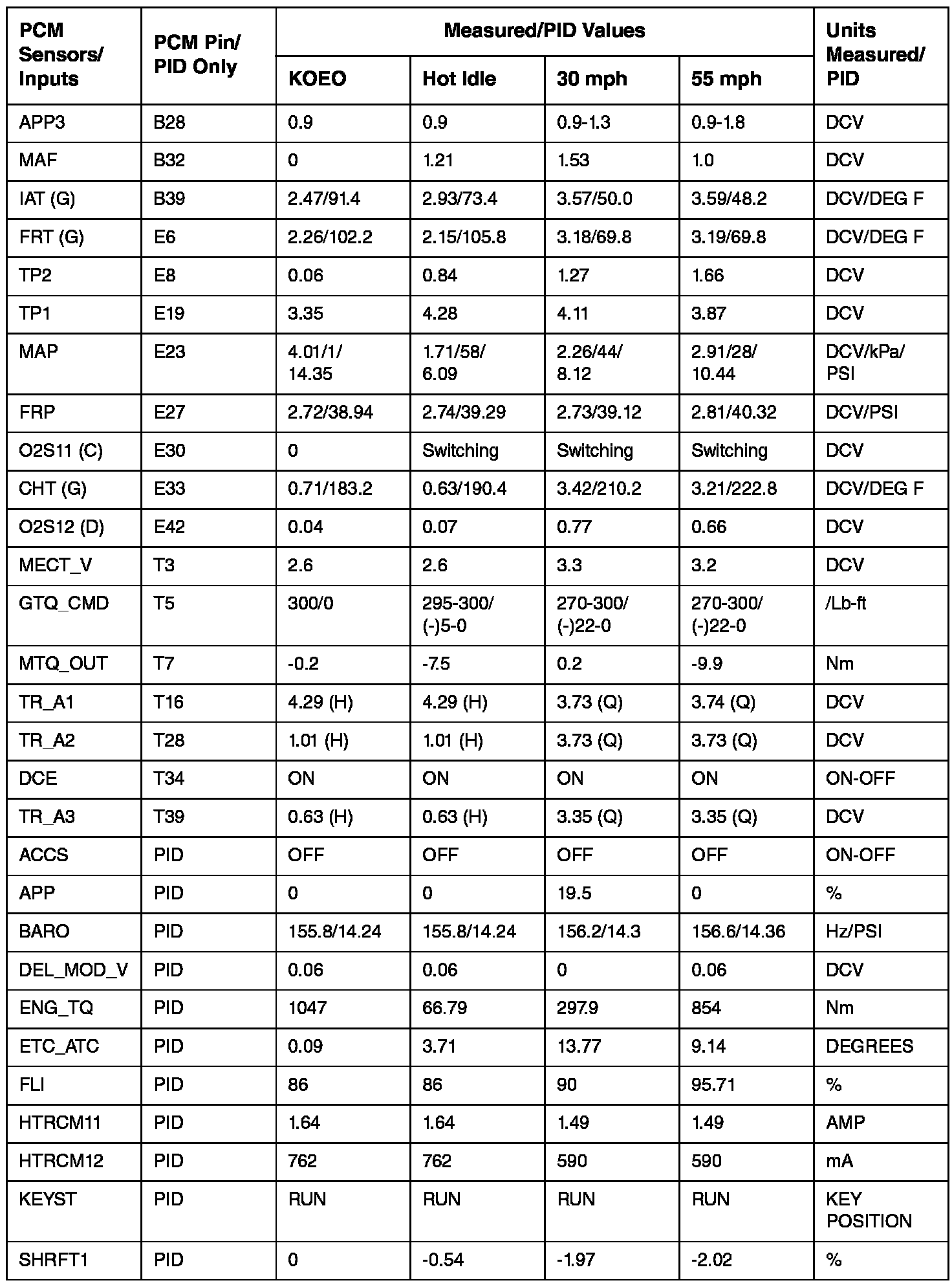

TYPICAL DIAGNOSTIC REFERENCE VALUES
