System Specifications




SPECIFICATIONS

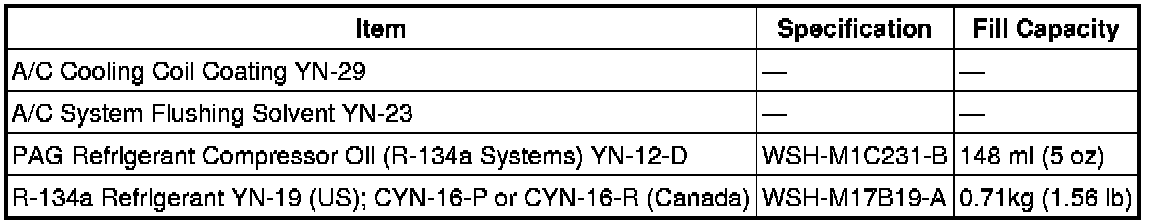

Material Specifications

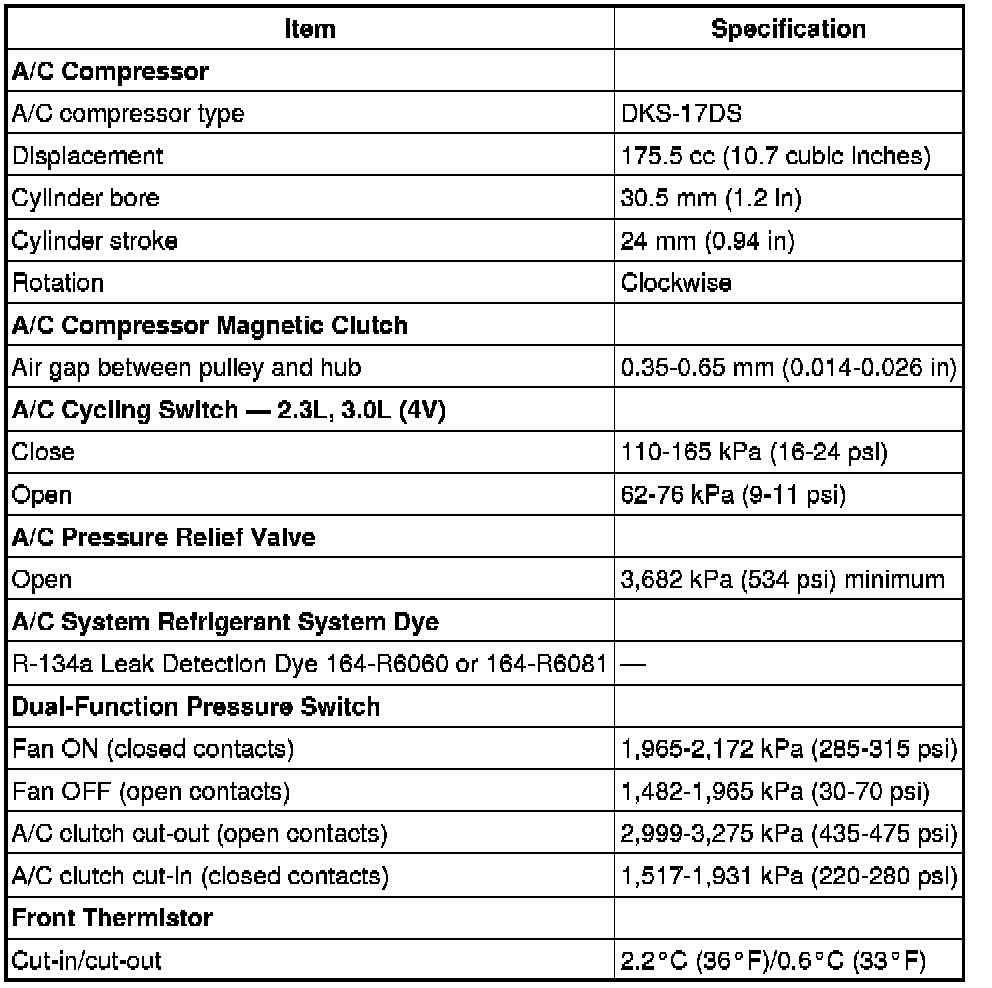

General Specifications

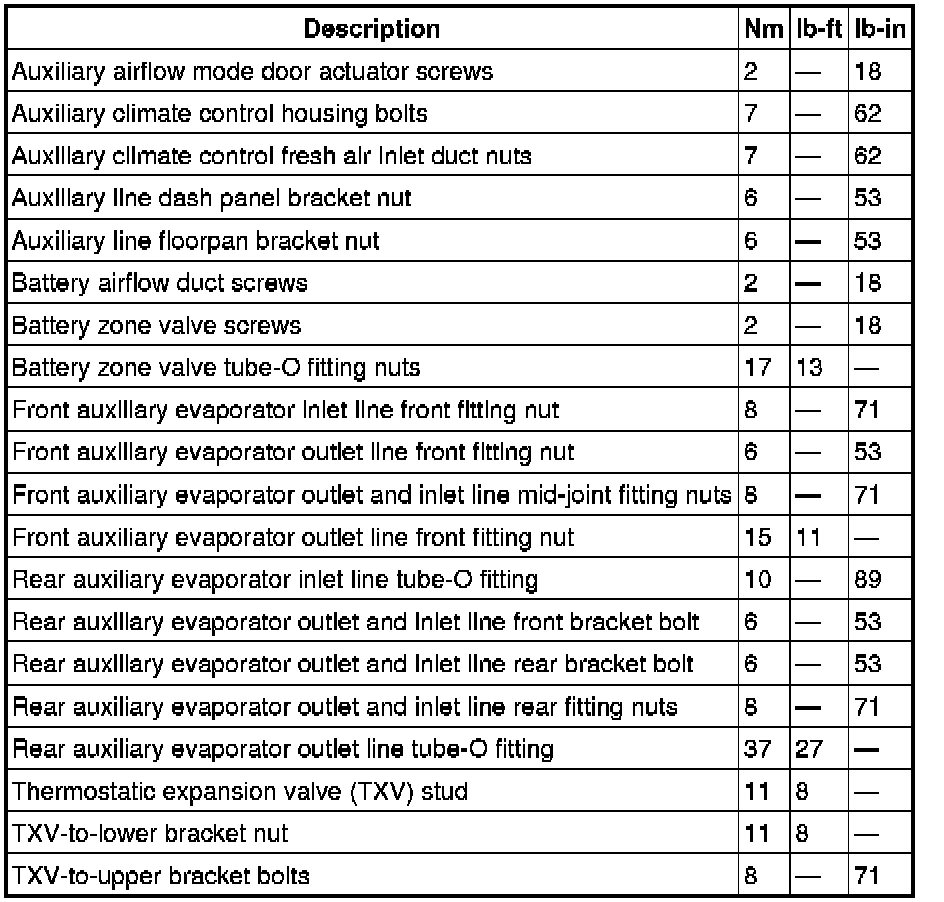

Torque Specifications

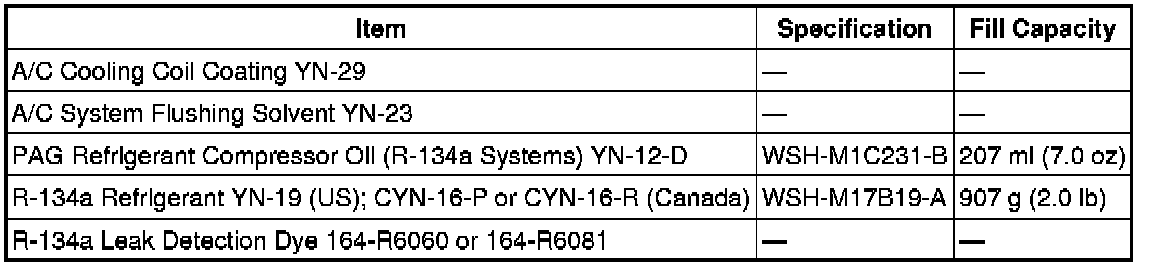

Material Specifications - Hybrid





General Specifications - Hybrid





Torque Specifications - Hybrid
