Intake Manifold - Gasket Modification

Category 4
Applicable Model/s 1981-1982 GLC
Subject INTAKE MANIFOLD GASKET
Bulletin No. 001/84
Issued 2/15/84
Revised

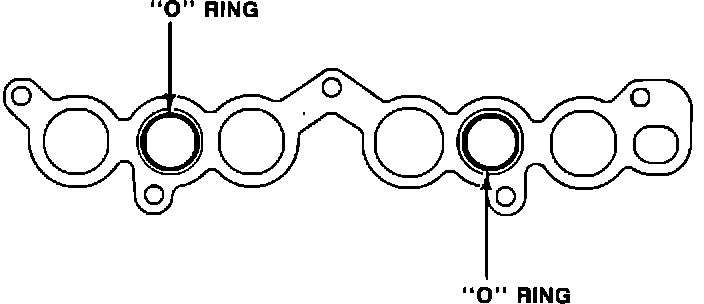

"O" RING LOCATION:




DESCRIPTION

The material of intake manifold gasket for 1981 and 1982 GLC has been changed for better sealing along with inserting two (2) "O" rings onto the gasket.

The part number for newly established is E508 23 799.

Please note that the "O" rings may be detached from the gasket easily if you bend it. Handle the gasket with care and make certain the "O" rings are in place prior to installing the intake manifold.
