Quarter Trim - Modification

Category

14
Applicable Model/s

1983 626
Subject QUARTER TRIM MODIFICATION
Bulletin No. 085/83
Issued 7/7/83
Revised

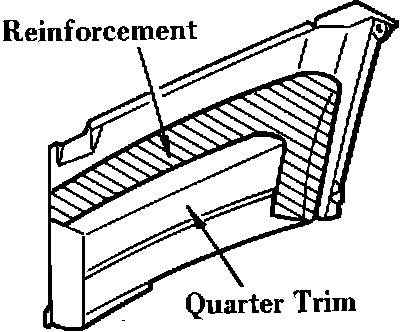

Quarter Trim Reinforcement:

DESCRIPTION

A reinforcement has been added to the quarter trim for the deluxe model as shown in the figure since the production date of May, 1983.

VIN OF PRODUCTION DATE

Coupe (Deluxe Model Only): JM1GC311 D1515041 May, 1983


PARTS INFORMATION

PART NUMBER

NEW OLD DESCRIPTION COLOR CODE INTERCHANGEABILITY

G075 68 520 G067 68 520E Quarter Trim (R) 00 = Black
10 = Red
20 = Tan NO
52 = Blue

G075 68 550 G067 68 550E Quarter Trim (L) 00 = Black
10 = Red
20 = Tan NO
52 = Blue
