A/C Condensor - Installation
Category 16Applicable Model/s 1984 RX-7
Subject AIR CONDITIONER CONDENSOR INSTALLATION
Bulletin No. 002/84
Issued 3/16/84
Revised
DESCRIPTION

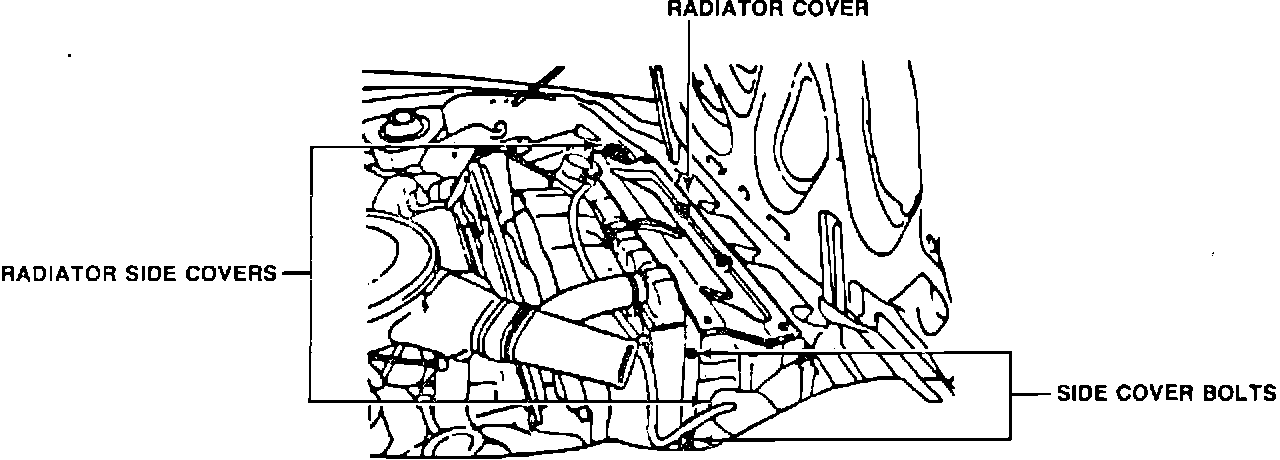

The dimension between the radiator side covers may be insufficient for installation of the condensor. To overcome this problem, loosen the two bolts securing the right side cover prior to installing the condensor. This will allow the right side cover to move outward far enough to enable the installation of the condensor. Be sure to tighten the side cover bolts after the condensor is installed.
This procedure will be detailed in the next revision of the installation instructions.
