Cooling System - Radiator & Cap Modification

Category Applicable Model/s Subject Bulletin No.. 005/85
40 1985 626 RADIATOR & CAP MODIFICATION Issued 5/13/85
Revised 5/30/85

RADIATOR & CAP MODIFICATION:

DESCRIPTION

The radiator neck and radiator cap have been reduced in diameter since the production of February 1, 1985.

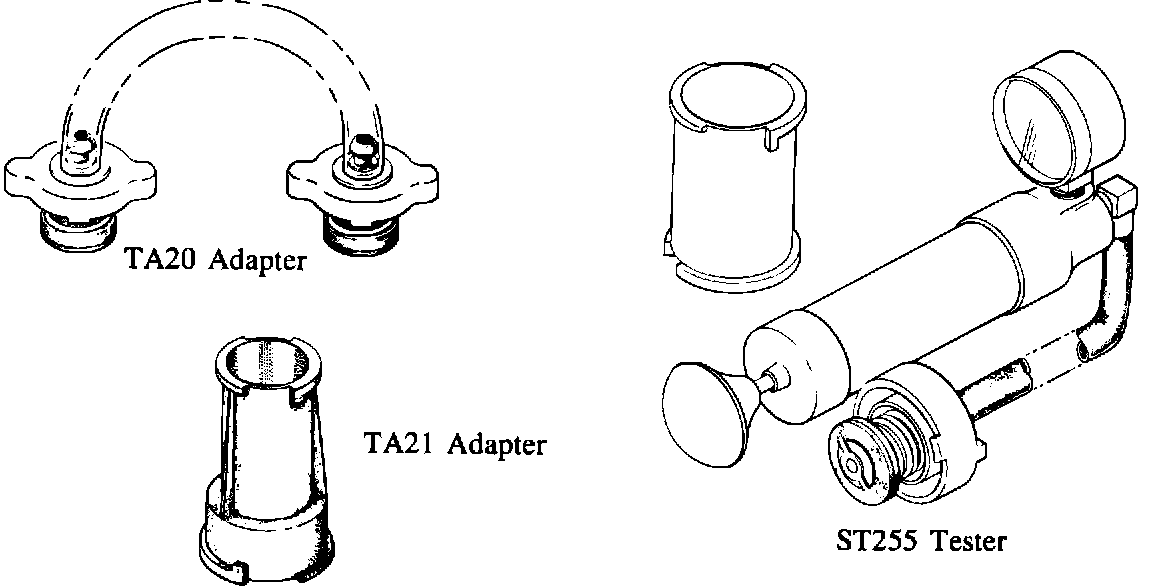

Because of this modification, adapters are needed to pressure test the radiator and cap. Adapters TA20 and TA21 are available from Stant Manufacturing Company for use with their ST255 Cooling System Tester. The adapters and tester are available through your local parts house or tool truck.
VIN OF PRODUCTION CHANGE

626 Sedan: JM1GC221 F1732128 February 1, 1985
Hatchback: JM1GC241 F1707867 February 1, 1985
Coupe: JM1GC311 F1717678 February 1, 1985
Diesel: JM1GC222 F1601080 February 1, 1985

The revised section is indicated by an asterisk. Please replace the original Service Bulletin with the revised bulletin.
PARTS INFORMATION


PART NUMBER

APPLIED

NEW OLD DESCRIPTION MODEL

F801 15 20OF F801 15 200D Radiator 626 M/T

F802 15 200E* F802 15 200C Radiator 626 A/T

RF03 15 200D RF03 15 200B Radiator 626 Diesel

FEG8 15 205 SE01 15 205 Radiator Cap 626
