Solenoid Valve - Modification

Category 4
Applicable Model/s 1985 GLC
Subject SOLENOID VALVE MODIFICATION
Bulletin No. 006/84
Issued 10/5/84
Revised

Slow Cut Solenoid Valve:

DESCRIPTION

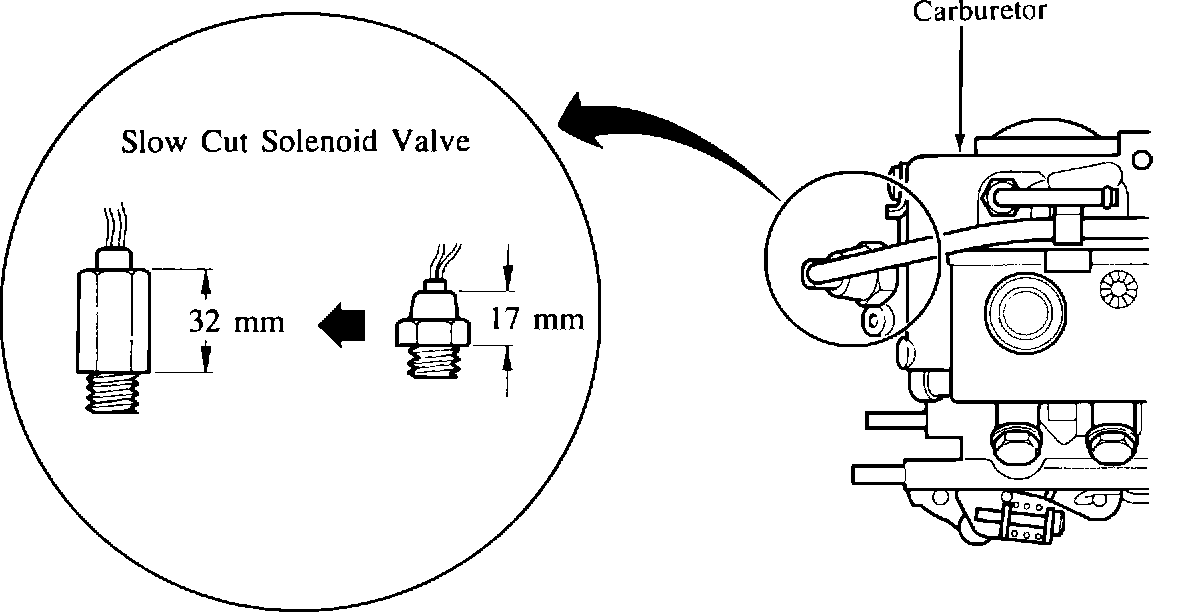

The configuration of the slow fuel cut solenoid valve has been changed as shown below in order to assure proper operation.

VIN OF PRODUCTION CHANGE

Sedan: JM1BD221 F0800550 July, 1984
3 Door Hatchback: JM1BD231 F0800549 July, 1984
5 Door Hatchback: JM1BD241 F0800001 July, 1984


PARTS INFORMATION

PART NUMBER

NEW OLD DESCRIPTION INTERCHANGEABILITY

E563 13 XKO E563 23 435 Solenoid Valve NEW to OLD
