Timing Cover - Modification

Category Applicable Model/s Subject Bulletin No. 016/85
1 1986 323 TIMING COVER MODIFICATION Issued 11/6/85
Revised

TIMING COVER MODIFICATION:

DESCRIPTION

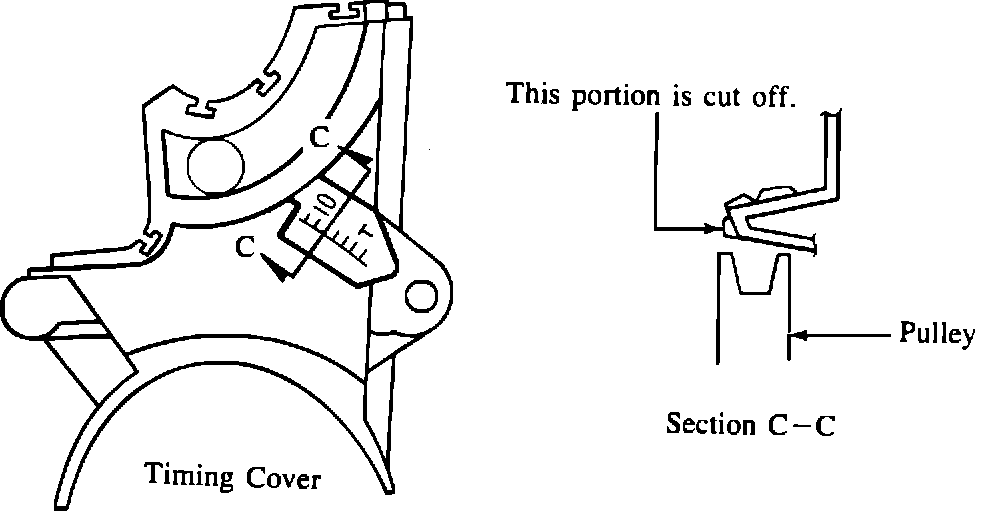

The amount of protrusion for the timing mark on the timing belt cover has been reduced to improve visability of the timing mark on the crankshaft pulley.

VIN OF PRODUCTION CHANGE

323 Sedan: JM1BF222}
G0108267 September, 1985
3 Door Hatchback: JM1BF232}

5 Door Hatchback: JM1BF242


PARTS INFORMATION


PART NUMBER
DESCRIPTION INTERCHANGEABILITY
NEW OLD

B630 10 501B B630 10 501A Timing Belt Cover - Lwr. NEW --> OLD
