Emission Control Systems: Locations

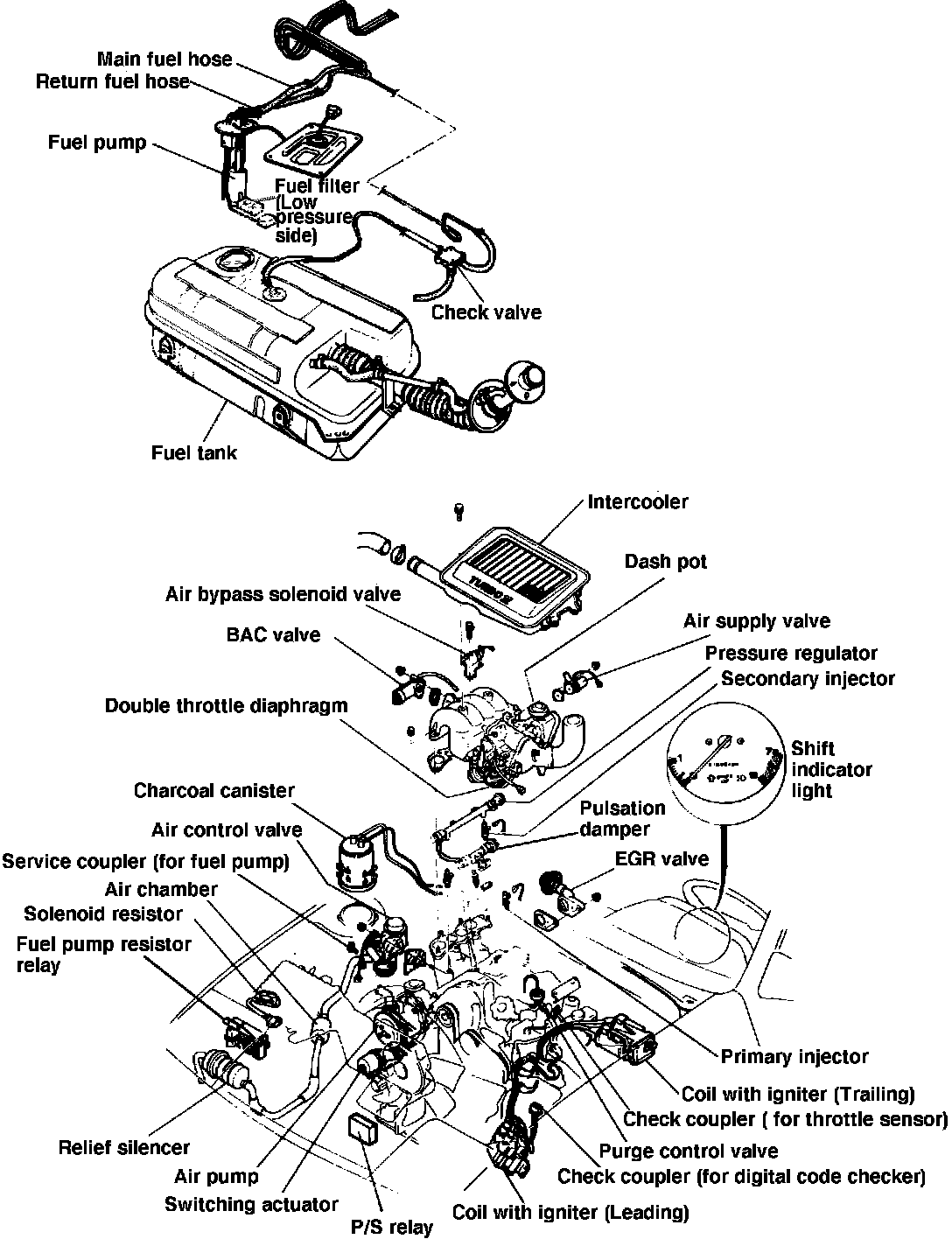

Fig. 10a Engine compartment reference diagram. Turbo (Part 1 of 2):

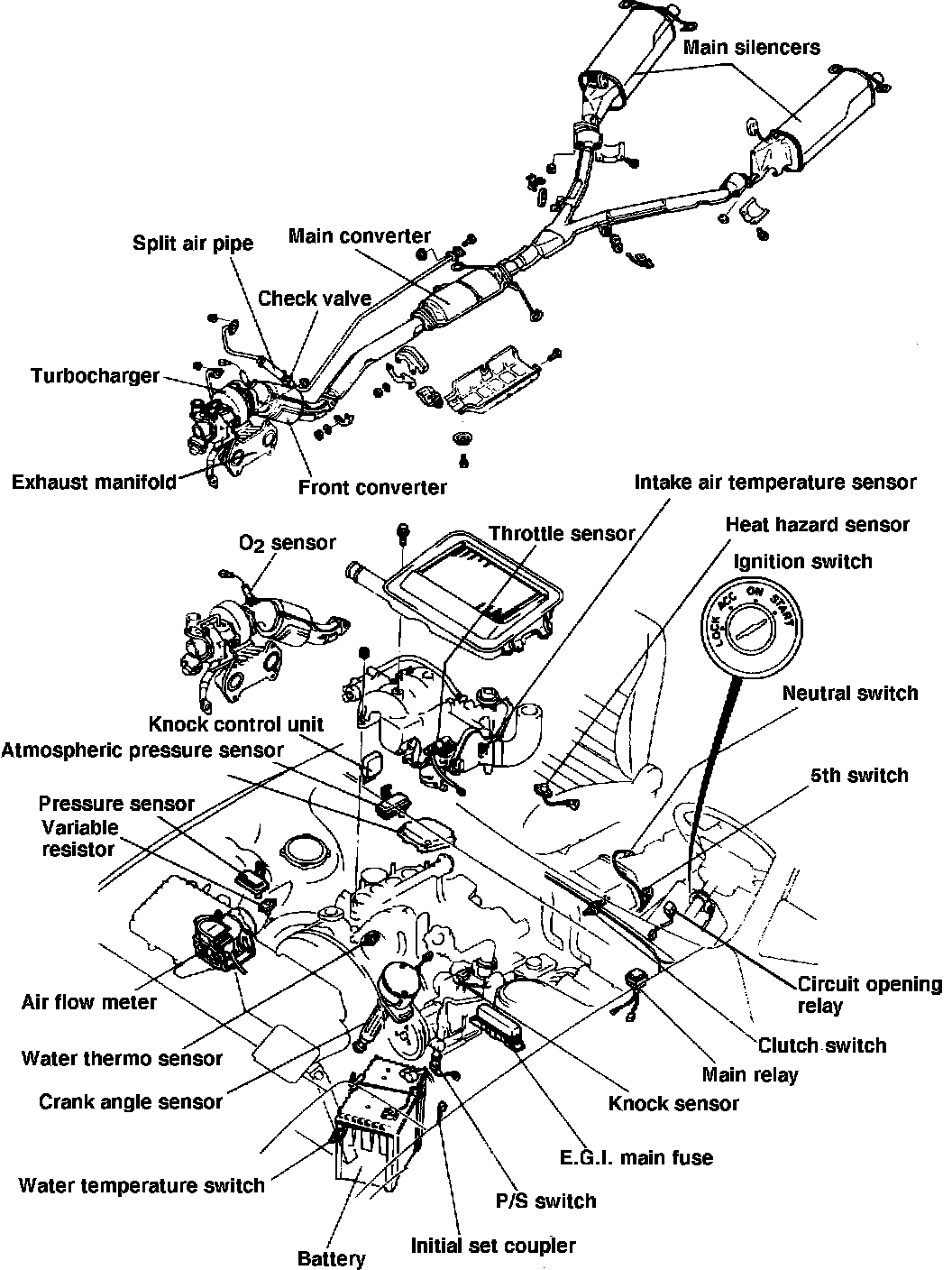

Fig. 10b Engine compartment reference diagram. Turbo (Part 2 of 2):
