Home
>>
Mazda
>>
1988
>>
626 L4-2184cc 2.2L SOHC F2
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Locations
>>
Turbo
>>
Manual Temperature Control
Manual Temperature Control

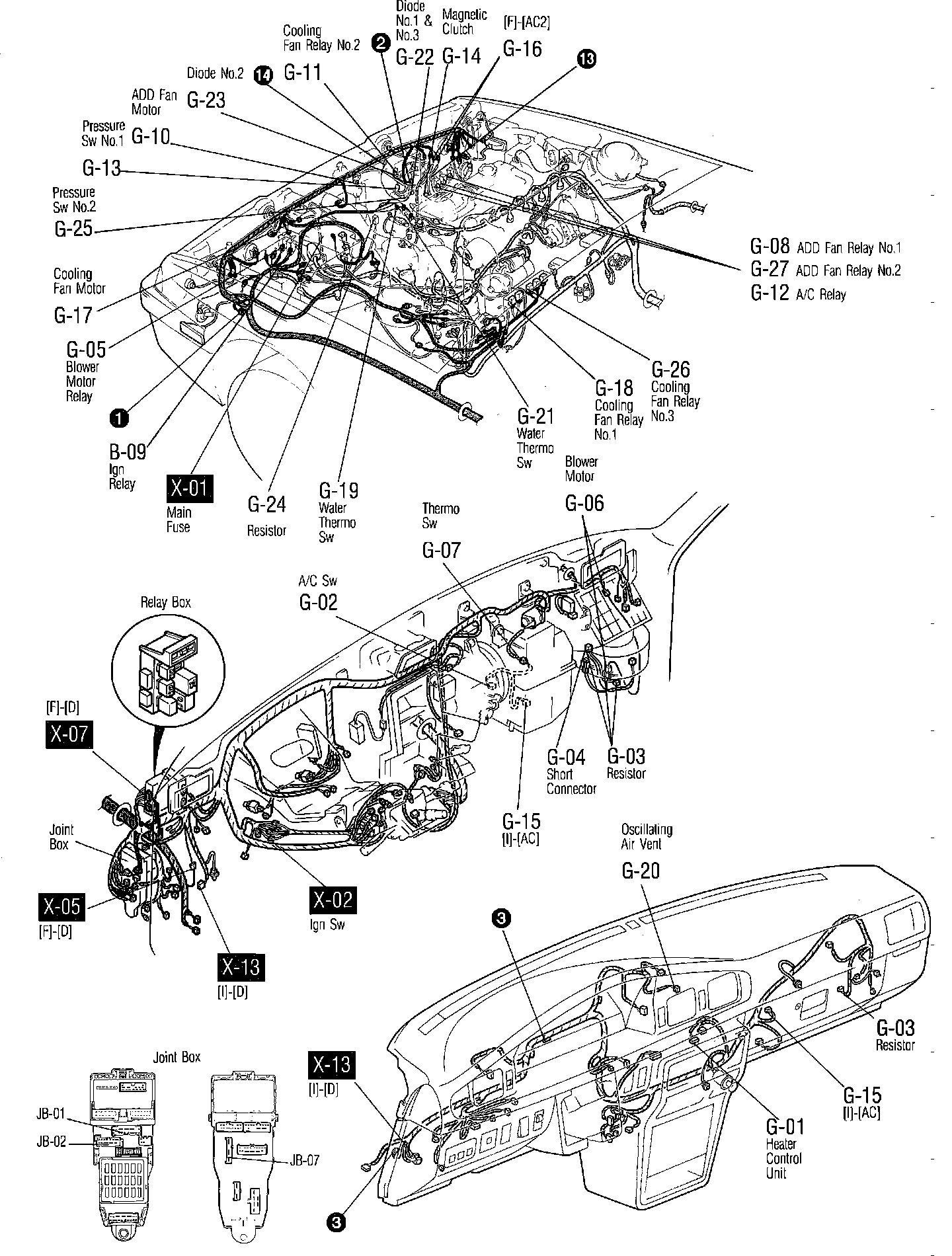

Heater, Air Conditioner and Cooling Fan System (Turbo, Non Turbo A/T):
