Mode Switch

Checking Operation

1. Turn ignition switch to On position.
2. Check that mode indicator illuminates at each mode.
3. If not working properly, check terminal voltage.

Checking Terminal Voltage

1. Disconnect mode switch.
2. Turn ignition switch to On position and turn light switch off.

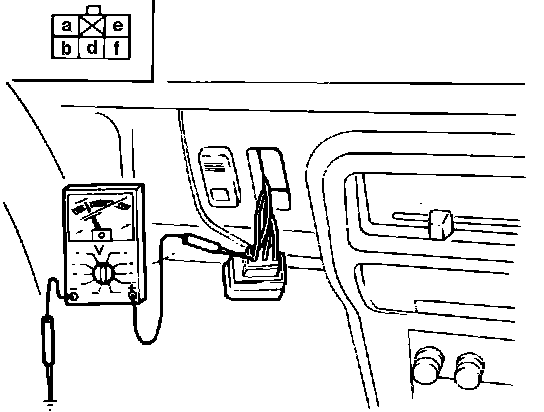

Fig. 1 Mode switch rear side connector terminal identification. 1988 626 & MX-6:

3. Check voltage between each connector terminal and ground, Fig. 1. In power mode there should be less then 1.5 volts at terminals b, d, e and f and approximately 12 volts at terminal a. In economy mode, there should be less then 1.5 volts at terminals a, b, d and f and approximately 12 volts at terminal f.
4. If voltages are as described, check continuity of terminals.

Checking Continuity

1. Disconnect mode switch connector.

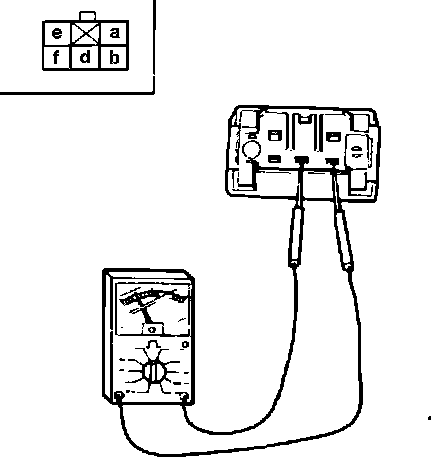

Fig. 2 Mode switch front side connector terminal identification. 1988 626 & MX-6:

2. Check continuity between connector terminals, Fig. 2. In economy mode, there should be continuity between terminals a and f and between terminals d and e. In power mode, there should be continuity between terminals a and f and between terminals d and b.
3. If continuity is not as described, replace mode switch.
